PB-650 - Echo Backpack Blower (SN: 03001001 - 03999999) Starter Parts Diagram

Backpack Blower - 63.3 cc 1-stroke engine (family 1ehxs.635ra), WYK-150 carburetor, throttle/stop lever combo, EPA Phase I & California Tier II compliant, steel flex-pipe clamp. Ideal for residential or light commercial use.

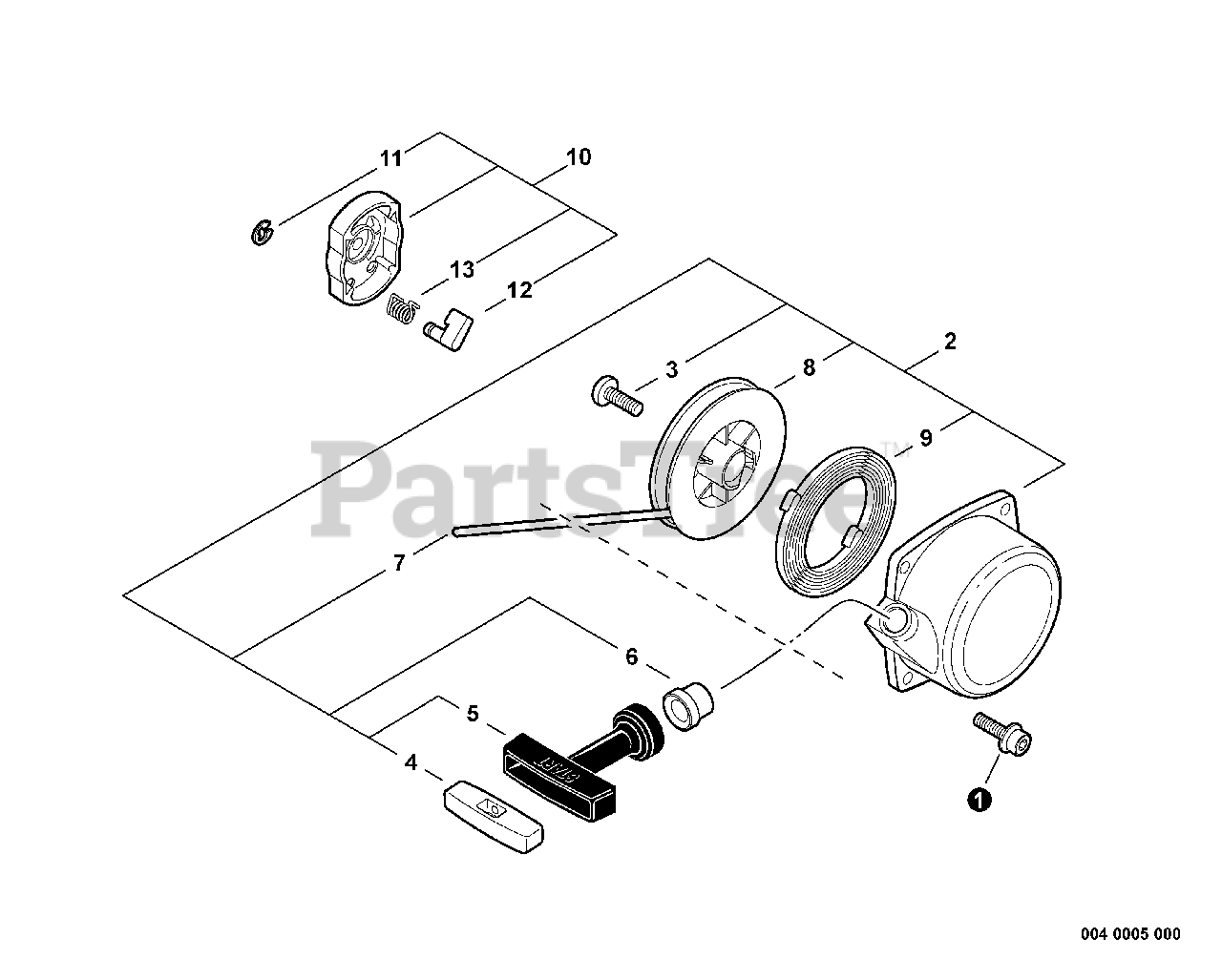

Starter Parts Diagram

  • Title

1

Echo 90010605014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

2

Echo A051000201

STARTER ASSY
(Superseded to A051000840)

Note: Includes ITEMS 3-8

$63.99

$

In Stock, Qty 20+

0

3

Echo 17723606910

SCREW

$3.99

$

Usually ships in 2-4 days

0

4

Echo P022010260

RETAINER, ROPE

$3.49

$

In Stock, Qty 10

0

5

Echo 17722811620

GRIP, STARTER

$13.99

$

In Stock, only 1 left!

0

6

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

7

Echo 17722606310

ROPE, STARTER 3.8×1150

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 4 left!

0

8

Echo P022002080

REEL, ROPE

$16.99

$

In Stock, only 1 left!

0

9

Echo 17722006310

SPRING, RECOIL

$18.99

$

Usually ships in 2-4 days

0

10

Echo A052000042

PAWL ASSY, STARTER

Note: Includes ITEMS 11-13

$12.99

$

In Stock, Qty 20+

0

11

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 16

0

12

Echo P022003120

PAWL, STARTER

$3.49

$

In Stock, Qty 20+

0

13

Echo P022003130

SPRING, RETURN

$3.99

$

In Stock, Qty 8

0
