PB-650 H - Echo Backpack Blower (SN: 05001001 - 05999999) Engine, Short Block -- SB1070 Parts Diagram

Backpack Blower

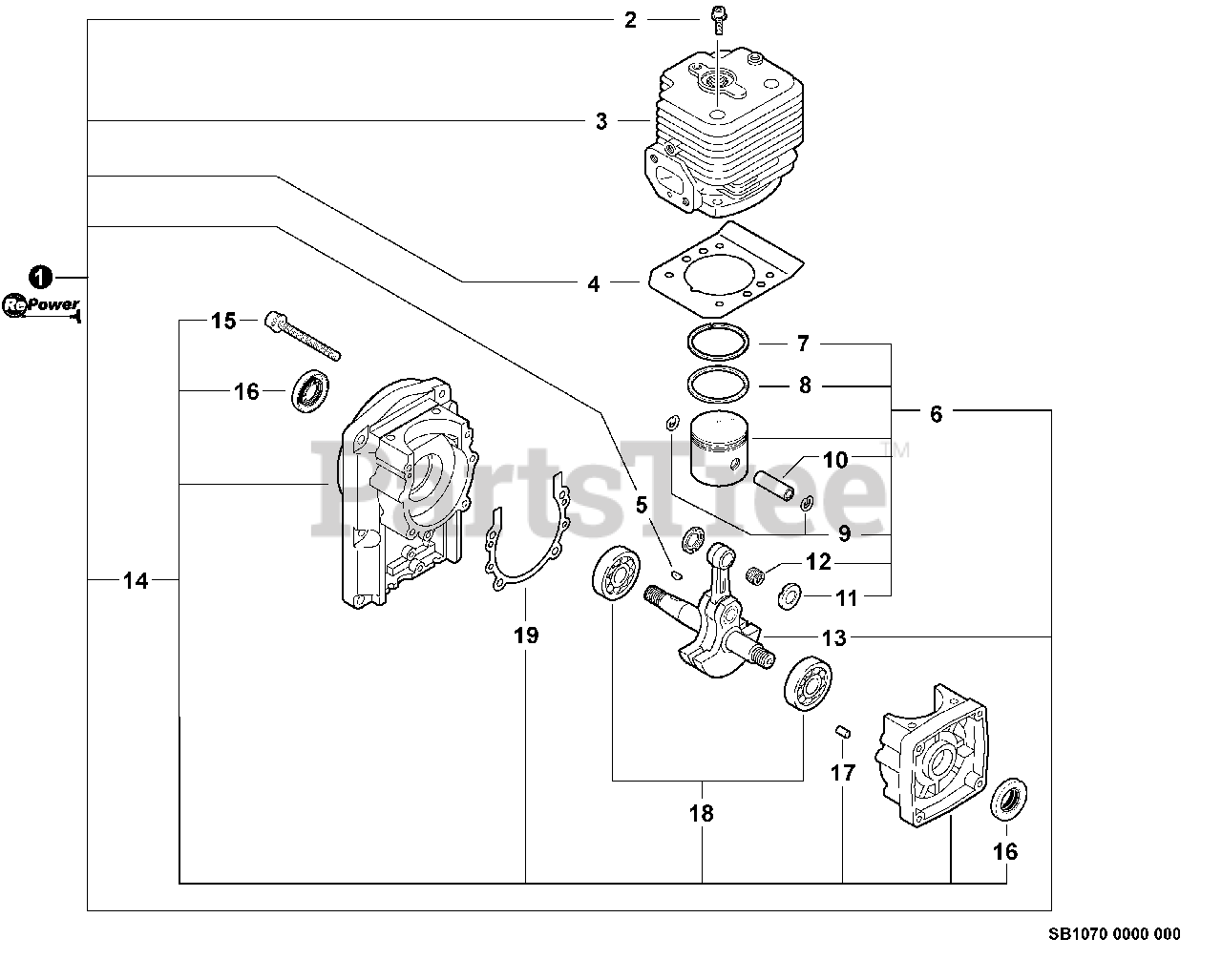

Engine, Short Block -- SB1070 Parts Diagram

  • Title

1

Echo SB1070

SHORT BLOCK -- SB1070

Note: Includes ITEMS 2-19

$481.99

$

In Stock, only 2 left!

0

2

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

3

Echo A130001000

CYLINDER

$238.99

$

In Stock, only 1 left!

0

4

Echo V100000100

GASKET, CYLINDER

$10.99

$

In Stock, Qty 10

0

5

Echo 90032303014

KEY - 3X14

$1.99

$

In Stock, Qty 20+

0

6

Echo P021002983

PISTON KIT
(Superseded to P021002984)

Note: Includes ITEMS 5-11

$106.99

$

In Stock, only 2 left!

0

7

Echo A101000030

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

8

Echo A101000020

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

9

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 7

0

10

Echo V608000010

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

11

Echo V307000060

WASHER - 10

$7.99

$

Usually ships in 2-4 days

0

12

Echo V555000010

BEARING, NEEDLE - 10

$11.99

$

In Stock, Qty 11

0

13

Echo A011000140

CRANKSHAFT ASSY

$257.99

$

In Stock, only 1 left!

0

14

Echo P021002991

CRANKCASE KIT

Note: Includes ITEMS 15-19

$293.99

$

Usually ships in 2-4 days

0

15

Echo 90016205035

SCREW - 5X35

$1.99

$

In Stock, Qty 17

0

16

Echo V508000010

SEAL, OIL
(Superseded to V508000100)

$6.49

$

In Stock, Qty 19

0

17

Echo 90033040080

PIN - LOCATING

$1.49

$

In Stock, Qty 15

0

18

Echo 9403236302

BEARING, BALL - 6302

$21.99

$

In Stock, only 1 left!

0

19

Echo V102000010

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 18

0
