PB-651 T - Echo Backpack Blower (SN: 06001001 - 06999999) Fuel System Parts Diagram

Backpack Blower. 375 mm x 485 mm x 527 mm; dry weight 11.2 kg. Powered by a 2-stroke, single-cylinder, air-cooled 63.3 cc (3.86 cu in) engine with 48 mm bore and 35 mm stroke, fed by a Walbro diaphragm carburetor with primer bulb.

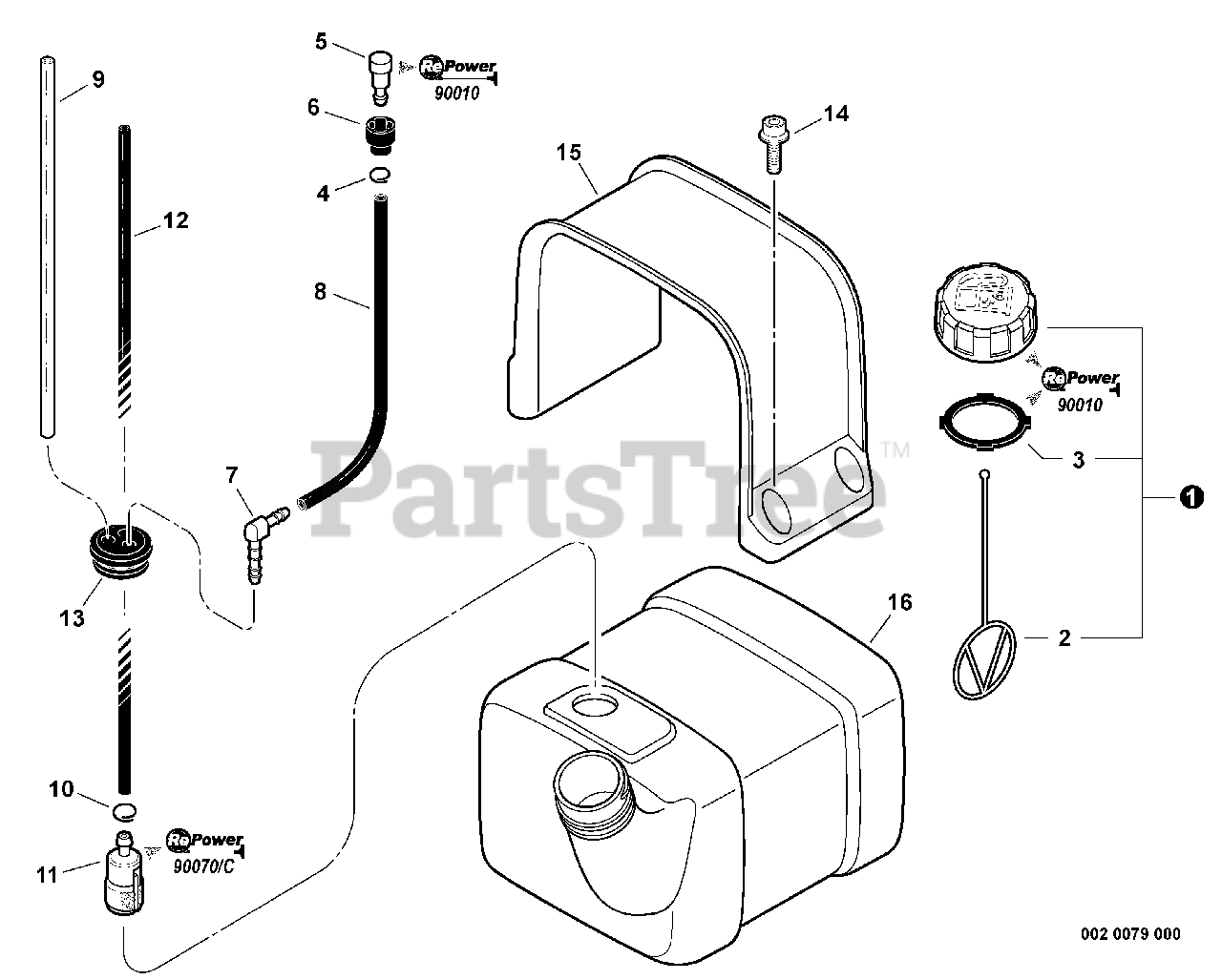

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 2-3 Included In RePower KIT

$7.49

$

In Stock, Qty 8

0

2

Echo 13105156030

CONNECTOR, CAP L= 100 MM

Note: Included In RePower KIT

$1.49

$

In Stock, Qty 15

0

3

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT ASSY

Note: Included In RePower KIT

$9.49

$

In Stock, Qty 20+

0

6

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 11

0

7

Echo V186000080

CONNECTOR, PIPE Ø5.4
(Superseded to V186000500)

$0.99

$

In Stock, Qty 20+

0

8

Echo V471000610

PIPE, VENT 3×6×145 MM
(Superseded to V471000611)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 20+

0

9

Echo V471000550

PIPE, FUEL RETURN 3×6×145

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

10

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

12

Echo 13201035430

PIPE, FUEL 3×6×230
(Superseded to 13201035431)

Note: RePower BULK OPTION: 90015

$9.49

$

In Stock, Qty 11

0

13

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 19

0

14

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo A392000000

BRACKET, FUEL TANK

$5.99

$

In Stock, only 2 left!

0

16

Echo A350000151

TANK, FUEL

$

$

Not available

17

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

18

Echo 90070

TUNE-UP KIT - REPOWER
(Superseded to 90151)

$27.99

$

In Stock, Qty 20+

0

18

Echo 90070C

TUNE-UP KIT - REPOWER
(Superseded to 90151)

$27.99

$

In Stock, Qty 20+

0
