PB-750 H - Echo Backpack Blower (SN: 05001001 - 05999999) Blower Tubes Parts Diagram

Backpack blower with dimensions 375 mm x 485 mm x 527 mm and a dry weight of 11.4 kg. Powered by a 63.3 cc, 2-stroke, air-cooled, single-cylinder engine (48 mm bore, 35 mm stroke) running 2400-3200 rpm idle and 6 rev at full throttle. Compatible with the 90161Y Tune-Up Kit.

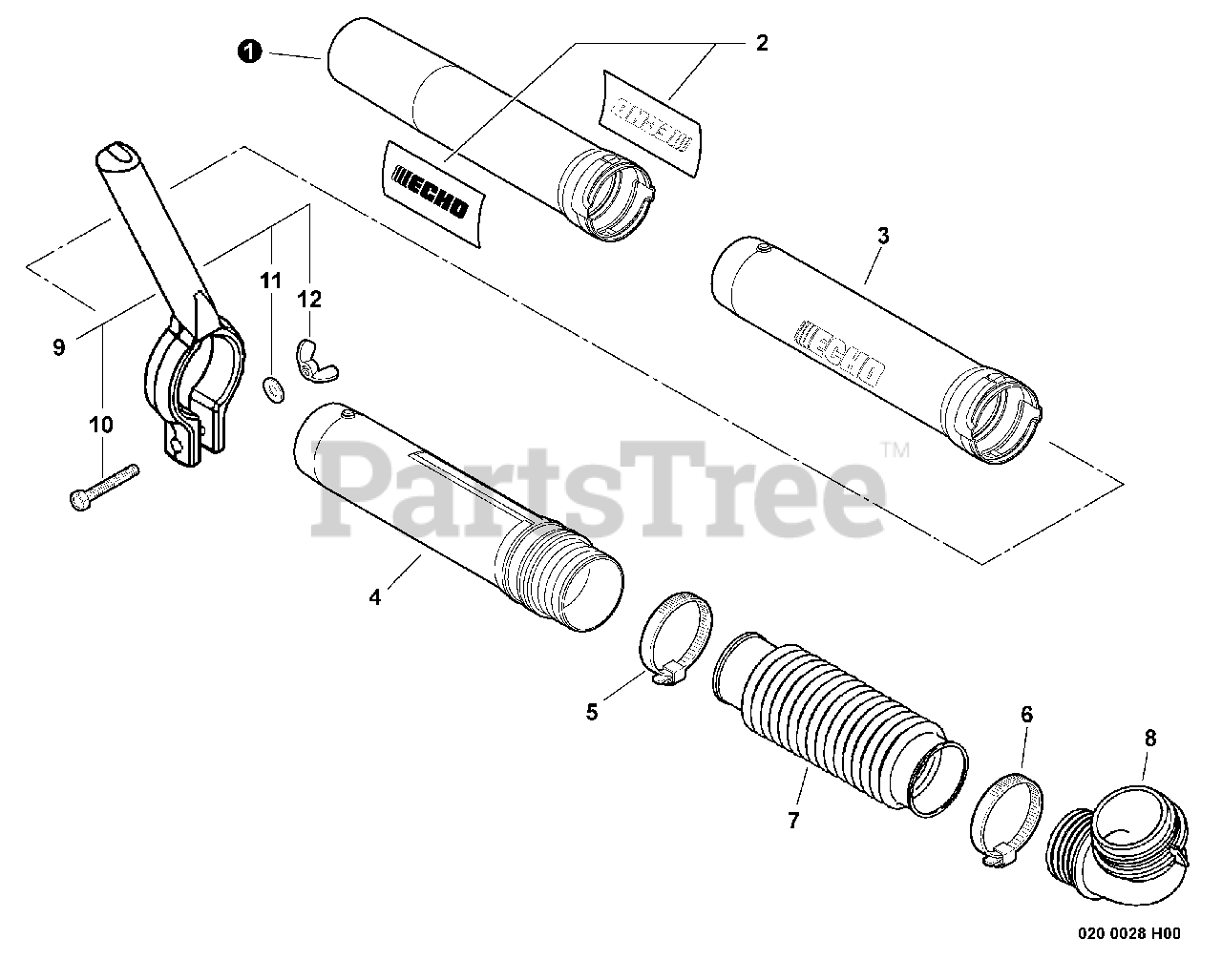

Blower Tubes Parts Diagram

  • Title

1

Echo E165000110

TUBE, BLOWER - NOZZLE

$20.99

$

In Stock, only 2 left!

0

2

Echo 89011804262

LABEL, ECHO BLOWER TUBE

$1.99

$

In Stock, Qty 20+

0

3

Echo E165000020

TUBE, BLOWER - STRAIGHT
(Superseded to Discontinued)

$

$

Not available

4

Echo E165000010

TUBE, BLOWER - SWIVEL
(Superseded to P021007780)

$51.99

$

In Stock, only 3 left!

0

5

Echo V495000430

CLAMP 58.7 MM / 82.5 MM

$2.49

$

In Stock, Qty 20+

0

6

Echo V495000440

CLAMP - BAND

$2.99

$

In Stock, Qty 20+

0

7

Echo E164000051

TUBE, FLEXIBLE

$21.99

$

In Stock, only 2 left!

0

8

Echo E160000091

TUBE, BLOWER - ELBOW

$18.99

$

In Stock, only 3 left!

0

9

Echo 001106

HANDLE ASSY, PB LARGE

Note: Includes ITEMS 10-12

$19.99

$

In Stock, only 2 left!

0

10

Echo 90010006045

BOLT 6×45

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 2 left!

0
