PB-751 T - Echo Backpack Blower (SN: 07001001 - 07999999) Ignition Parts Diagram

Backpack Blower, 63.3 cc air-cooled 2-stroke single-cylinder engine (bore 48 mm, stroke 35 mm), dimensions 375 mm x 485 mm x 527 mm, weight 10.7 kg (dry).

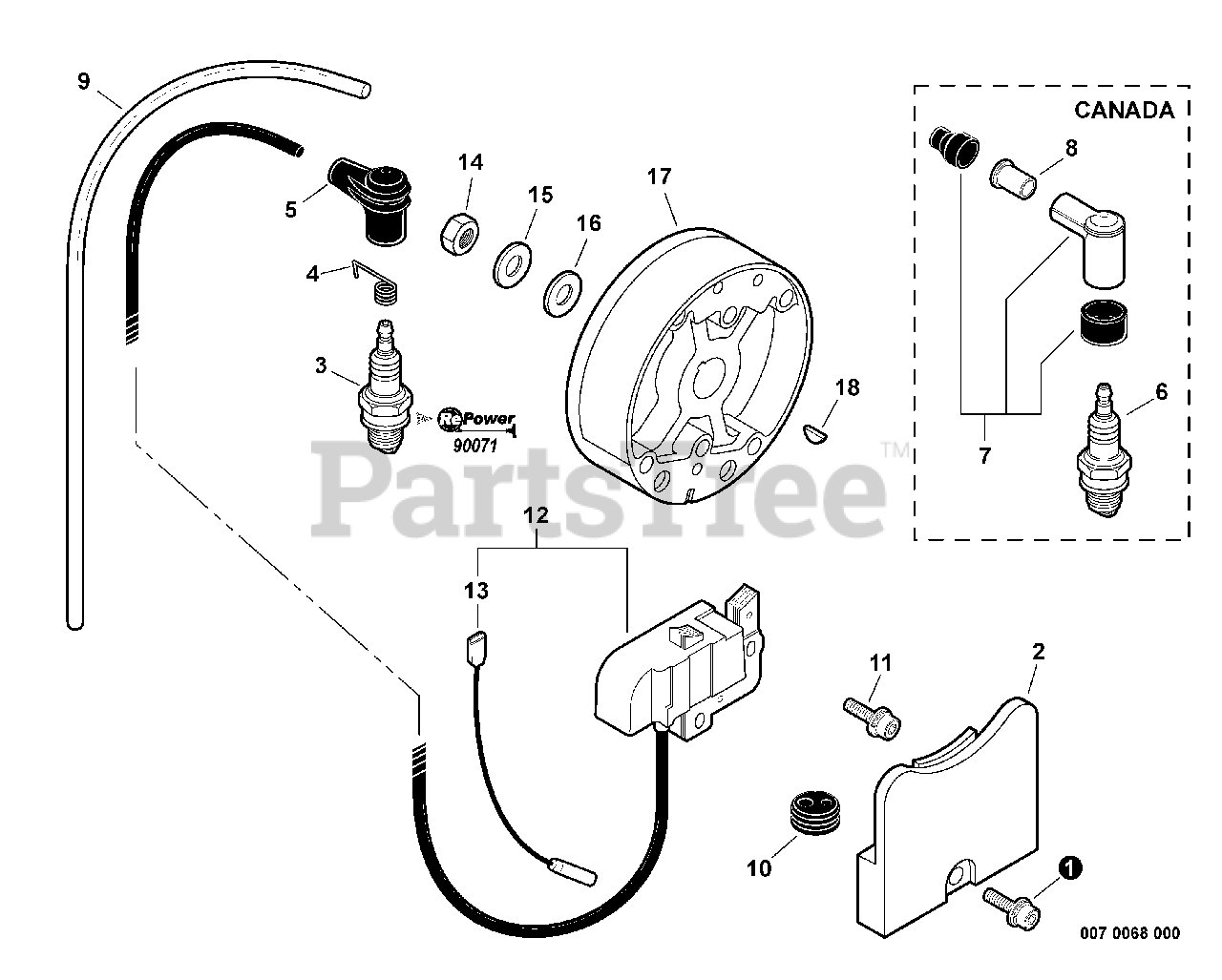

Ignition Parts Diagram

  • Title

1

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

2

Echo 15912908261

COVER, DUST

$6.99

$

In Stock, only 2 left!

0

3

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

4

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

5

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

6

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

7

Echo 15901210230

CAP, SPARK PLUG

Note: CANADA MODELS

$13.99

$

Usually ships in 2-4 days

0

8

Echo 15901605330

ADAPTOR, SPARK PLUG - CAP

Note: CANADA MODELS

$1.99

$

Usually ships in 2-4 days

0

9

Echo 15611106160

TUBE, VINYL 6.3×8×380

$1.99

$

In Stock, Qty 5

0

10

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

11

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

12

Echo A415000000

COIL ASSY, IGNITION
(Superseded to A415000001)

Note: Includes ITEM 13

$113.99

$

In Stock, Qty 6

0

13

Echo V485000190

LEAD - IGNITION

$2.99

$

In Stock, only 3 left!

0

14

Echo 900501-00010

NUT 10

$0.99

$

In Stock, only 2 left!

0

15

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

16

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

17

Echo A409000110

FLYWHEEL
(Superseded to P021009560)

$206.99

$

Usually ships in 2-4 days

0

18

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

$

In Stock, Qty 20+

0

19

Echo 90071

TUNE-UP KIT - REPOWER
(Superseded to 90161)

$27.99

$

In Stock, only 2 left!

0
