PB-751 T - Echo Backpack Blower (SN: 07001001 - 07999999) Intake Parts Diagram

Backpack Blower, 63.3 cc air-cooled 2-stroke single-cylinder engine (bore 48 mm, stroke 35 mm), dimensions 375 mm x 485 mm x 527 mm, weight 10.7 kg (dry).

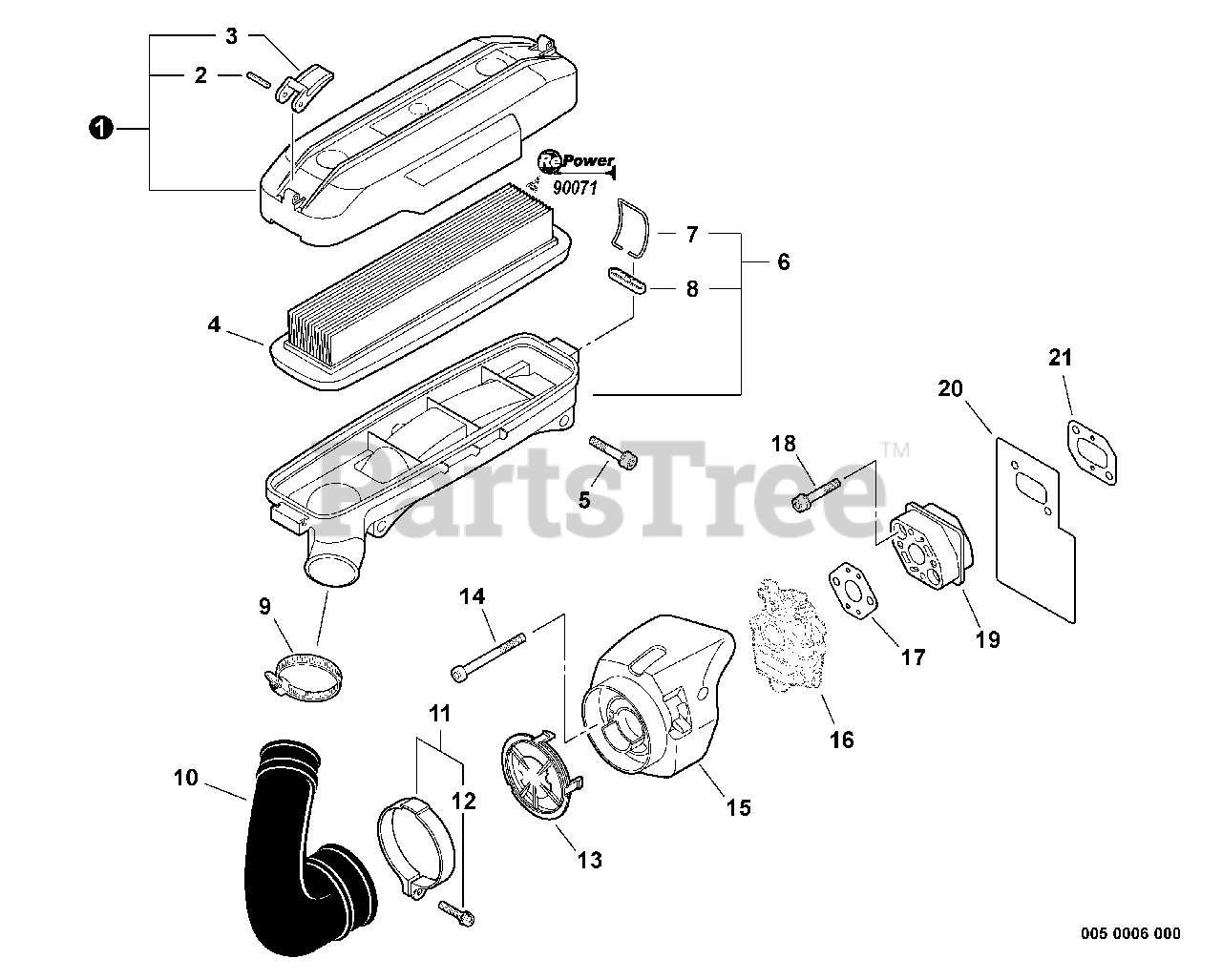

Intake Parts Diagram

  • Title

1

Echo A232000170

COVER, AIR FILTER

Note: Includes ITEMS 2-3

$15.99

$

In Stock, only 2 left!

0

2

Echo 90034530025

PIN, SPRING 3×25

$1.99

$

Usually ships in 2-4 days

0

3

Echo 13034108260

LATCH

$5.49

$

In Stock, only 1 left!

0

4

Echo 13030508361

FILTER, AIR

Note: Included In RePower KIT

$16.99

$

In Stock, Qty 10

0

5

Echo 90010605035

SCREW 5×35

$1.49

$

In Stock, Qty 5

0

6

Echo P021014460

CASE ASSY, AIR FILTER

Note: Includes ITEMS 7-8

$16.99

$

In Stock, only 2 left!

0

7

Echo 13103208360

CLIP

$3.49

$

In Stock, Qty 5

0

8

Echo V491000220

CLIP

$0.99

$

In Stock, Qty 20+

0

9

Echo V495000590

CLAMP 33 MM /57 MM

$2.99

$

In Stock, only 2 left!

0

10

Echo A239000010

PIPE, INTAKE

$20.99

$

In Stock, only 2 left!

0

11

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 12

$8.49

$

In Stock, Qty 9

0

12

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo A244000060

PLATE, PREVENT

$2.99

$

In Stock, Qty 7

0

14

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

15

Echo P021005690

CASE ASSY, AIR FILTER

$15.99

$

In Stock, only 1 left!

0

16

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

17

Echo V103000080

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

18

Echo 900106-05025

BOLT 5×25
(Superseded to 90010605025)

$1.49

$

In Stock, Qty 20+

0

19

Echo A200000070

INSULATOR, INTAKE
(Superseded to A200000071)

$16.99

$

In Stock, Qty 7

0

20

Echo V103000130

HEAT SHIELD, INTAKE

Note: Included In GASKET KIT

$3.99

$

In Stock, Qty 6

0

21

Echo V103000140

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

22

Echo 90071

TUNE-UP KIT - REPOWER
(Superseded to 90161)

$27.99

$

In Stock, only 2 left!

0
