PB-755 - Echo Backpack Blower (SN: P38526001001 - P38526999999) Fuel System Parts Diagram

Backpack Blower

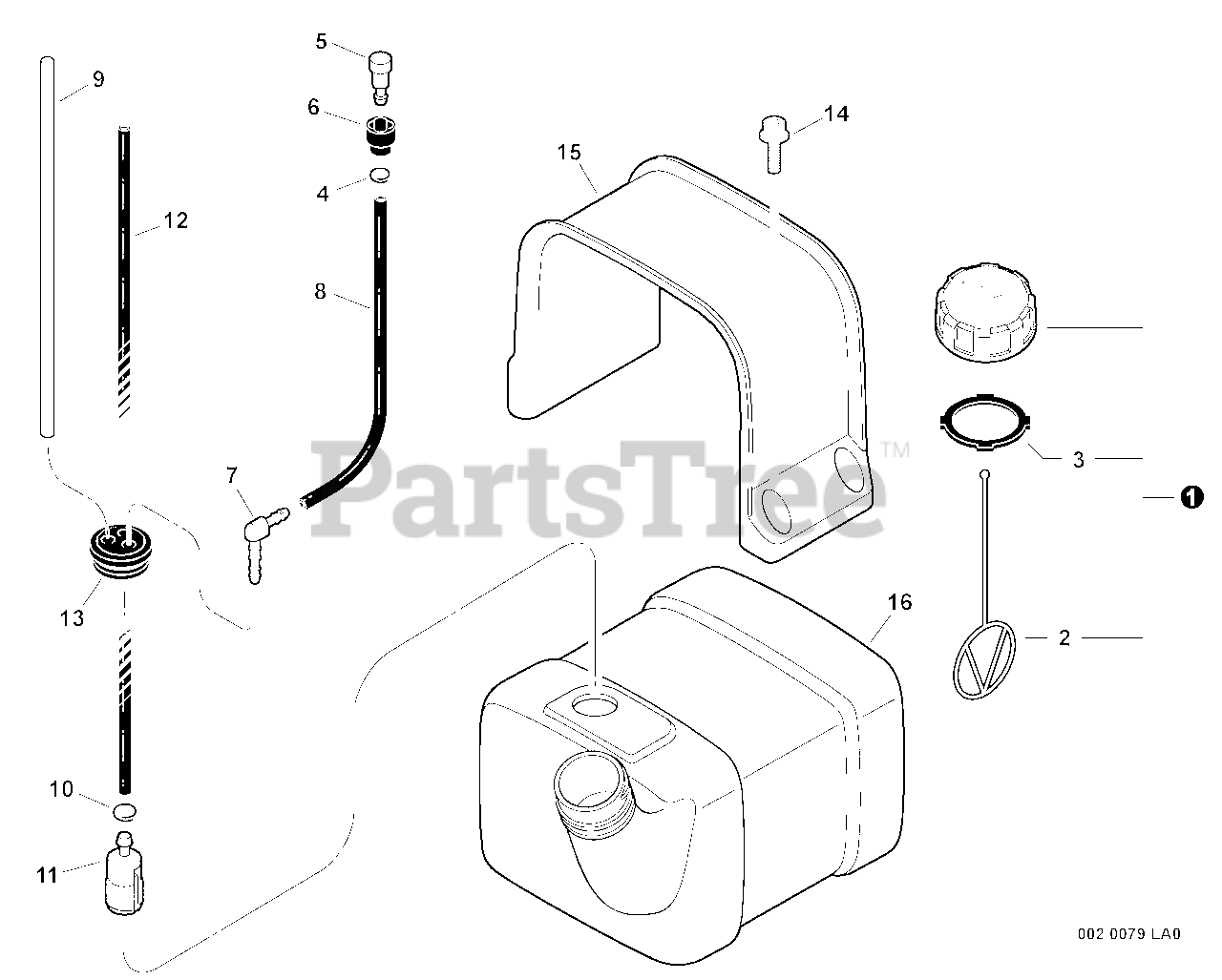

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$7.49

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, only 2 left!

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT, FUEL TANK

$9.49

$

In Stock, Qty 20+

0

6

Echo 13132840630

COVER, VENT

$7.49

$

In Stock, Qty 20+

0

7

Echo V186000080

CONNECTOR, PIPE
(Superseded to V186000500)

$0.99

$

In Stock, Qty 20+

0

8

Echo V471000610

PIPE - 3X6X145 -- BLACK
(Superseded to V471000611)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 20+

0

9

Echo V471000550

PIPE - 3X6X145 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

12

Echo 13201035430

PIPE - 3X6X230 -- BLACK
(Superseded to 13201035431)

Note: RePower BULK OPTION: 90015

$9.49

$

In Stock, only 4 left!

0

13

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

14

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

15

Echo A392000000

COVER, FUEL TANK

$5.99

$

In Stock, only 2 left!

0

16

Echo A350000151

TANK, FUEL

$

$

Not available
