PB-755 H - Echo Backpack Blower (SN: 06001001 - 06999999) Posi-Loc Blower Tubes Parts Diagram

Backpack blower with a 63.3 cc 2-stroke, air-cooled engine (48 mm bore x 35 mm stroke) using a 50:1 fuel/ oil mix (unleaded 89 octane). Equipped with a Walbro carburetor and primer, NGK BPM-8Y spark plug. Dimensions 375 x 485 x 527 mm (14.8? x 19? x 20.8?); dry weight 11.8 kg (26.2 lb). Ideal for heavy-duty cleaning tasks.

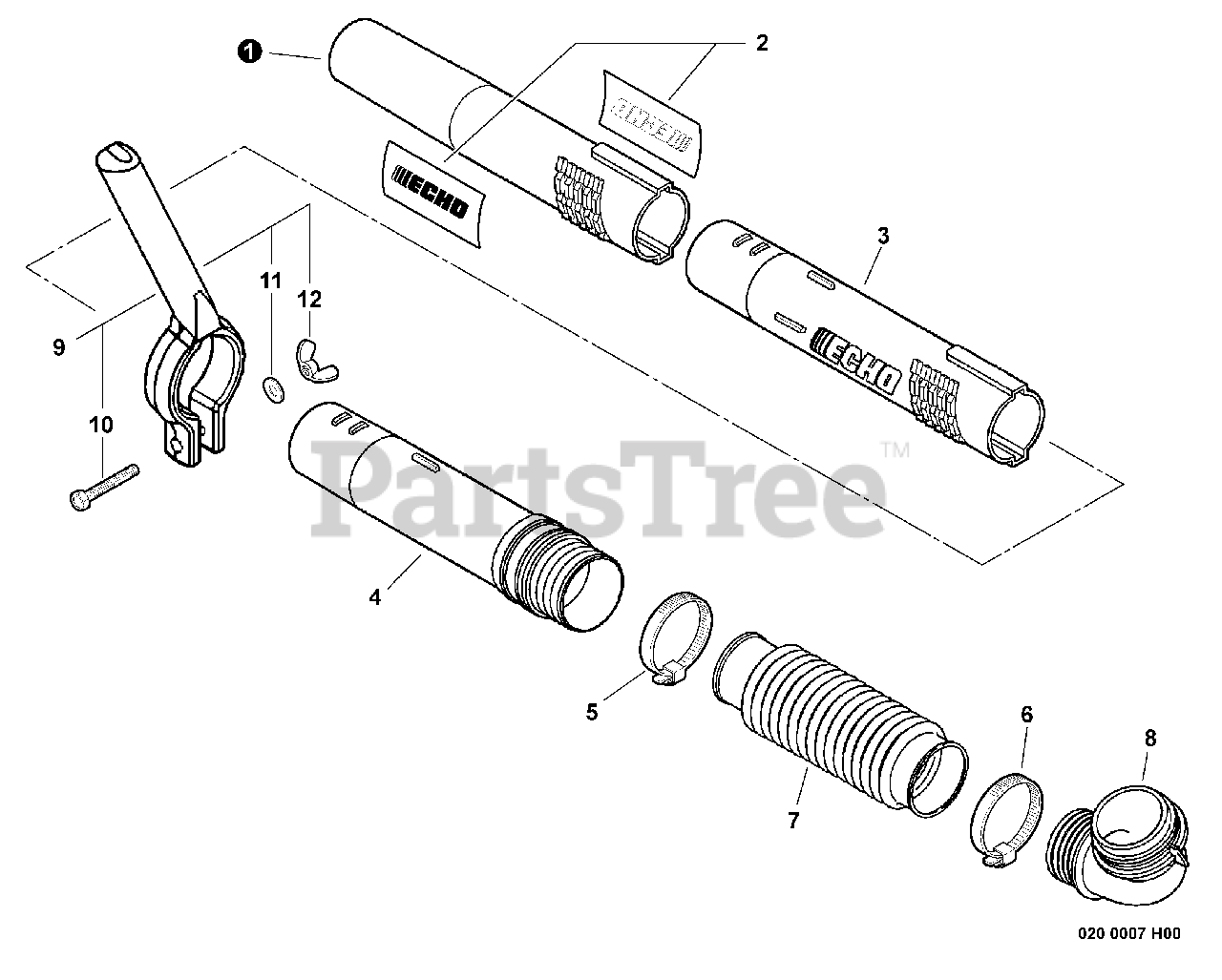

Posi-Loc Blower Tubes Parts Diagram

  • Title

1

Echo E165000150

TUBE, BLOWER - NOZZLE
(Superseded to E165000151)

$16.99

$

In Stock, Qty 20+

0

2

Echo 89011804262

LABEL, ECHO BLOWER TUBE

$1.99

$

In Stock, Qty 20+

0

3

Echo E165000141

TUBE, BLOWER - STRAIGHT

$14.99

$

In Stock, Qty 20+

0

4

Echo E165000130

TUBE, BLOWER - SWIVEL
(Superseded to E165000800)

$14.99

$

In Stock, Qty 20+

0

5

Echo V495000430

CLAMP 58.7 MM / 82.5 MM

$2.49

$

In Stock, Qty 20+

0

6

Echo V495000440

CLAMP - BAND

$2.99

$

In Stock, Qty 20+

0

7

Echo E164000060

TUBE, BLOWER - FLEXIBLE
(Superseded to E164000061)

$22.99

$

In Stock, Qty 17

0

8

Echo E160000091

TUBE, BLOWER - ELBOW

$18.99

$

In Stock, only 3 left!

0

9

Echo 001106

HANDLE ASSY, PB LARGE

$19.99

$

In Stock, only 2 left!

0

10

Echo 90010006045

BOLT 6×45

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 2 left!

0
