PB-755 SH - Echo Backpack Blower (SN: P04513001001 - P04513999999) Intake S/N: P04513001001 - P04513001108 Parts Diagram

Portable 63.3 cc air-cooled 2-stroke single-cylinder backpack blower. Delivers 651 CFM at 233 mph, 74 dB(A) noise, with a 62 fl oz transparent fuel tank. Dry weight 11.9 kg and dimensions 375 mm x 488 mm x 527 mm. Features a rotary carburetor with purge pump, CDI ignition, and a 48 mm bore/35 mm stroke engine for efficient, lightweight operation.

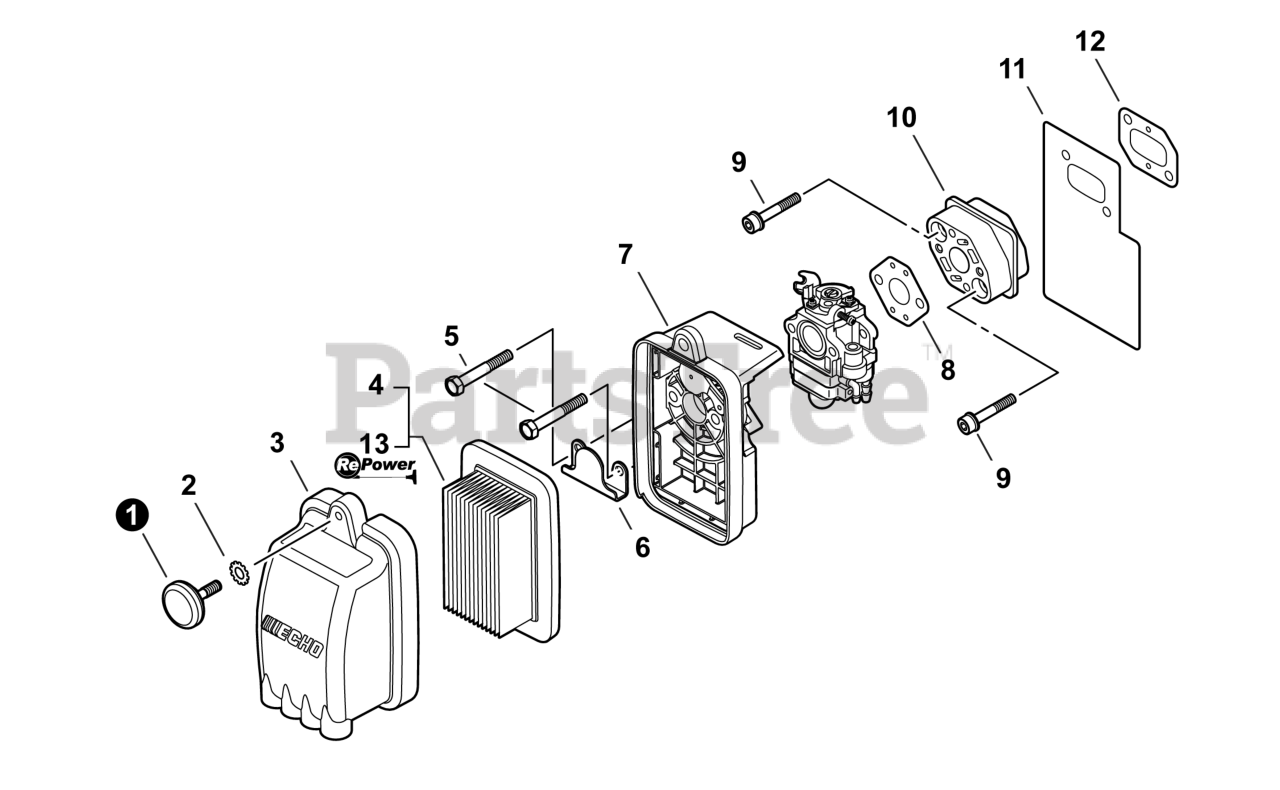

Intake S/N: P04513001001 - P04513001108 Parts Diagram

  • Title

1

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.99

$

In Stock, Qty 20+

0

2

Echo V340000210

WASHER, LOCK

$0.99

$

In Stock, Qty 20+

0

3

Echo A232000080

COVER, AIR FILTER
(Superseded to P021014430)

$13.99

$

In Stock, Qty 12

0

4

Echo A226000032

FILTER, AIR

$12.99

$

In Stock, Qty 20+

0

5

Echo 90010505055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

6

Echo A244000040

PLATE, PREVENT

$3.99

$

Usually ships in 2-4 days

0

7

Echo P021002521

CASE ASSY, AIR FILTER
(Superseded to P021014430)

$13.99

$

In Stock, Qty 12

0

8

Echo V103000080

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

9

Echo 90010605025

BOLT, FLANGE 5X25

$1.49

$

In Stock, Qty 20+

0

10

Echo A200001010

INSULATOR, INTAKE

$16.99

$

In Stock, Qty 8

0

11

Echo V103000130

HEAT SHIELD, INTAKE

$3.99

$

In Stock, Qty 8

0

12

Echo V103000140

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

13

Echo 90156

TUNE-UP KIT - REPOWER
(Superseded to 90156Y)

Note: See RePower Maintenance

$27.99

$

In Stock, Qty 20+

0
