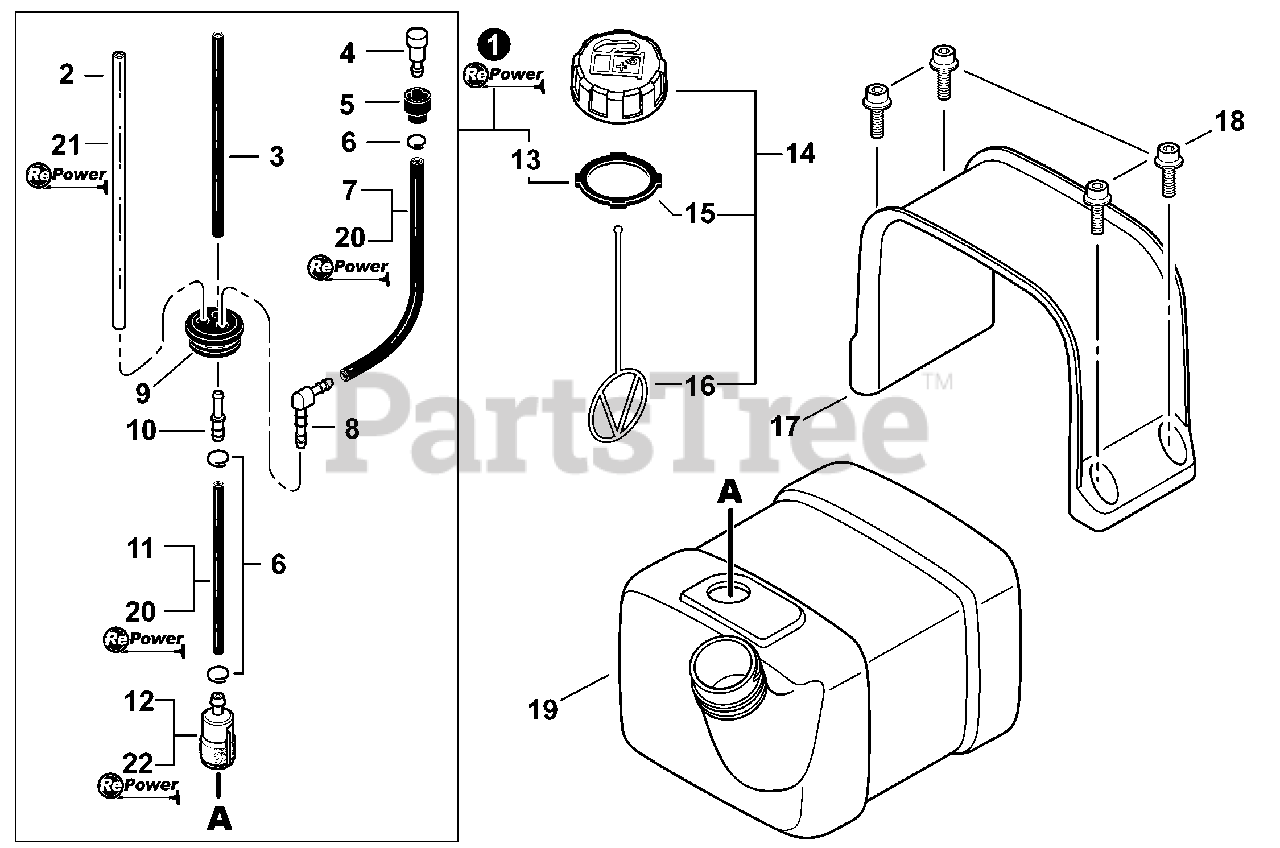

PB-755 SH - Echo Backpack Blower (SN: P43114001001 - P43114999999) Fuel System Parts Diagram

Backpack Blower

Fuel System Parts Diagram

  • Title

1

Echo 90133BP

FUEL SYSTEM KIT - REPOWER
(Superseded to Discontinued)

Note: Includes Items 2-13

$

$

Not available

2

Echo V471000550

PIPE, FUEL RETURN 3×6×145

$2.49

$

In Stock, Qty 20+

0

3

Echo V471003570

PIPE, FUEL 3×5×110

$4.49

$

In Stock, only 2 left!

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

6

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

7

Echo V471000610

PIPE, VENT 3×6×145mm
(Superseded to V471000611)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000500

CONNECTOR, PIPE 5.4

$0.99

$

In Stock, Qty 20+

0

9

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

10

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13201202960

PIPE, FUEL 3×6×120
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

12

Echo A369000440

FILTER, FUEL

$8.49

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 17

0

14

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 15-16

$6.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 17

0

16

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, only 2 left!

0

17

Echo A392000000

BRACKET, FUEL TANK

Note: Includes Items 13-14

$5.99

$

In Stock, only 1 left!

0

18

Echo 90010605016

BOLT 5×16

$1.49

$

Usually ships in 2-4 days

0

19

Echo A350000870

TANK, FUEL
(Superseded to A350002530)

$27.99

$

Usually ships in 2-4 days

0

20

Echo 90015

PIPE, BULK - REPOWER 3×6mm BLACK

$48.99

$

In Stock, only 2 left!

0

21

Echo 90017

PIPE, BULK - REPOWER 3×6mm CLEAR

$69.99

$

In Stock, only 3 left!

0

22

Echo 90156

TUNE-UP KIT - REPOWER
(Superseded to 90156Y)

$27.99

$

In Stock, Qty 20+

0
