PB-755 ST - Echo Backpack Blower (SN: P04213001001 - P04213999999) Fuel System S/N: P04213005501 - P04213999999 Parts Diagram

Portable 63.3 cc air-cooled 2-stroke single-cylinder backpack blower. Delivers 651 CFM at 233 mph, 74 dB(A) noise, with a 62 fl oz transparent fuel tank. Dry weight 11.9 kg and dimensions 375 mm x 488 mm x 527 mm. Features a rotary carburetor with purge pump, CDI ignition, and a 48 mm bore/35 mm stroke engine for efficient, lightweight operation.

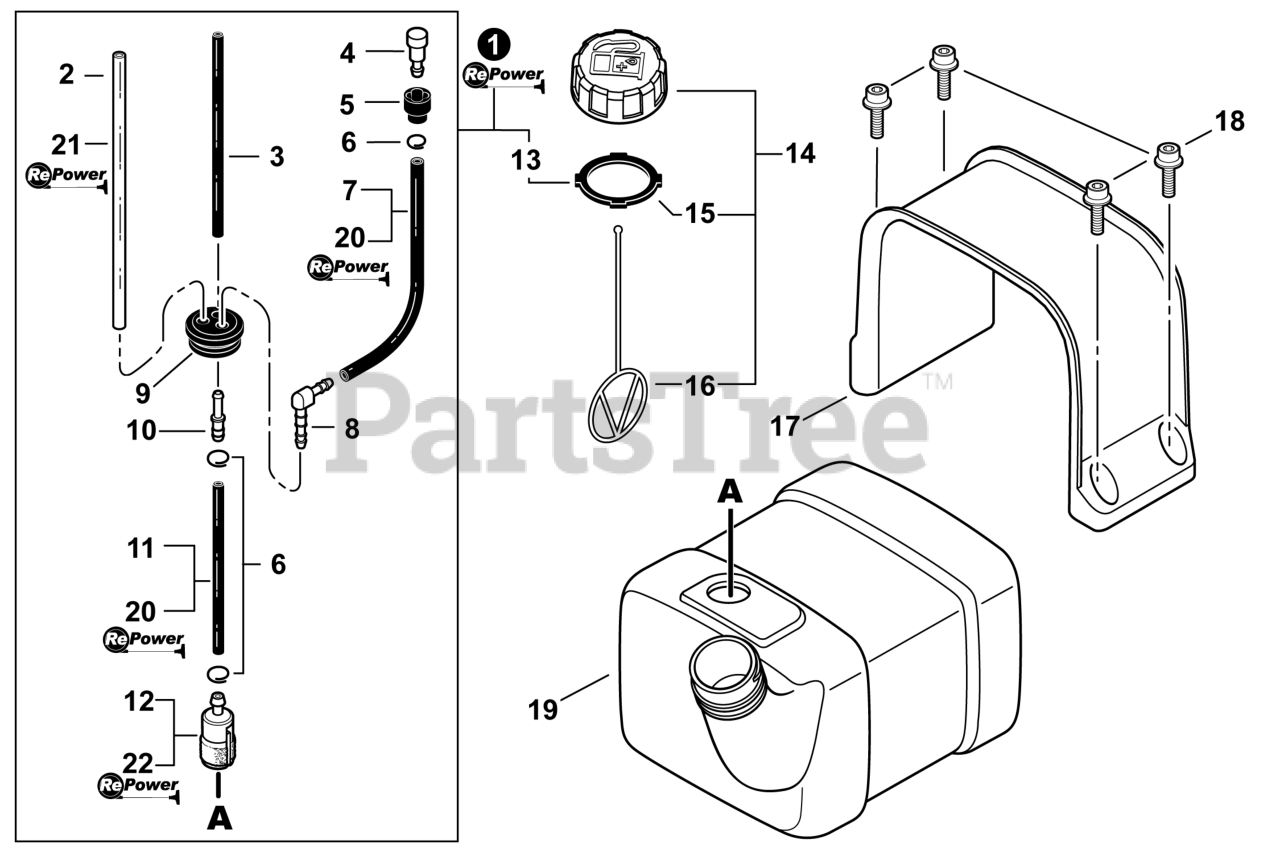

Fuel System S/N: P04213005501 - P04213999999 Parts Diagram

  • Title

1

Echo 90133BP

FUEL SYSTEM KIT
(Superseded to Discontinued)

Note: Includes Items 2-13

$

$

Not available

2

Echo V471000550

PIPE, FUEL RETURN 3×6×145

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

3

Echo V471005700

PIPE 3.5*6*110 2020

Note: RePower BULK OPTION: N/A

$5.49

$

In Stock, Qty 5

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 11

0

6

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo V471000610

PIPE, VENT 3×6×145 MM
(Superseded to V471000611)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

9

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 19

0

10

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13201202960

PIPE, FUEL 3×6×120 BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

12

Echo A369000440

FILTER, FUEL

Note: Included In RePower KIT

$8.49

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

14

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 15-16

$6.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

16

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 4 left!

0

17

Echo A392000000

BRACKET, FUEL TANK

Note: Includes Items 13-14

$5.99

$

In Stock, only 2 left!

0

18

Echo 90010605016

BOLT 5×16

$1.49

$

Usually ships in 2-4 days

0

19

Echo A350002531

FUEL TANK, PB-580/755 (2020)

$27.99

$

Usually ships in 2-4 days

0

20

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

$48.99

$

In Stock, only 1 left!

0

21

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

$69.99

$

In Stock, only 1 left!

0

22

Echo 90156

TUNE-UP KIT - REPOWER
(Superseded to 90156Y)

$27.99

$

In Stock, Qty 20+

0
