PB-755 ST - Echo Backpack Blower (SN: P04213001001 - P04213999999) Ignition Parts Diagram

Portable 63.3 cc air-cooled 2-stroke single-cylinder backpack blower. Delivers 651 CFM at 233 mph, 74 dB(A) noise, with a 62 fl oz transparent fuel tank. Dry weight 11.9 kg and dimensions 375 mm x 488 mm x 527 mm. Features a rotary carburetor with purge pump, CDI ignition, and a 48 mm bore/35 mm stroke engine for efficient, lightweight operation.

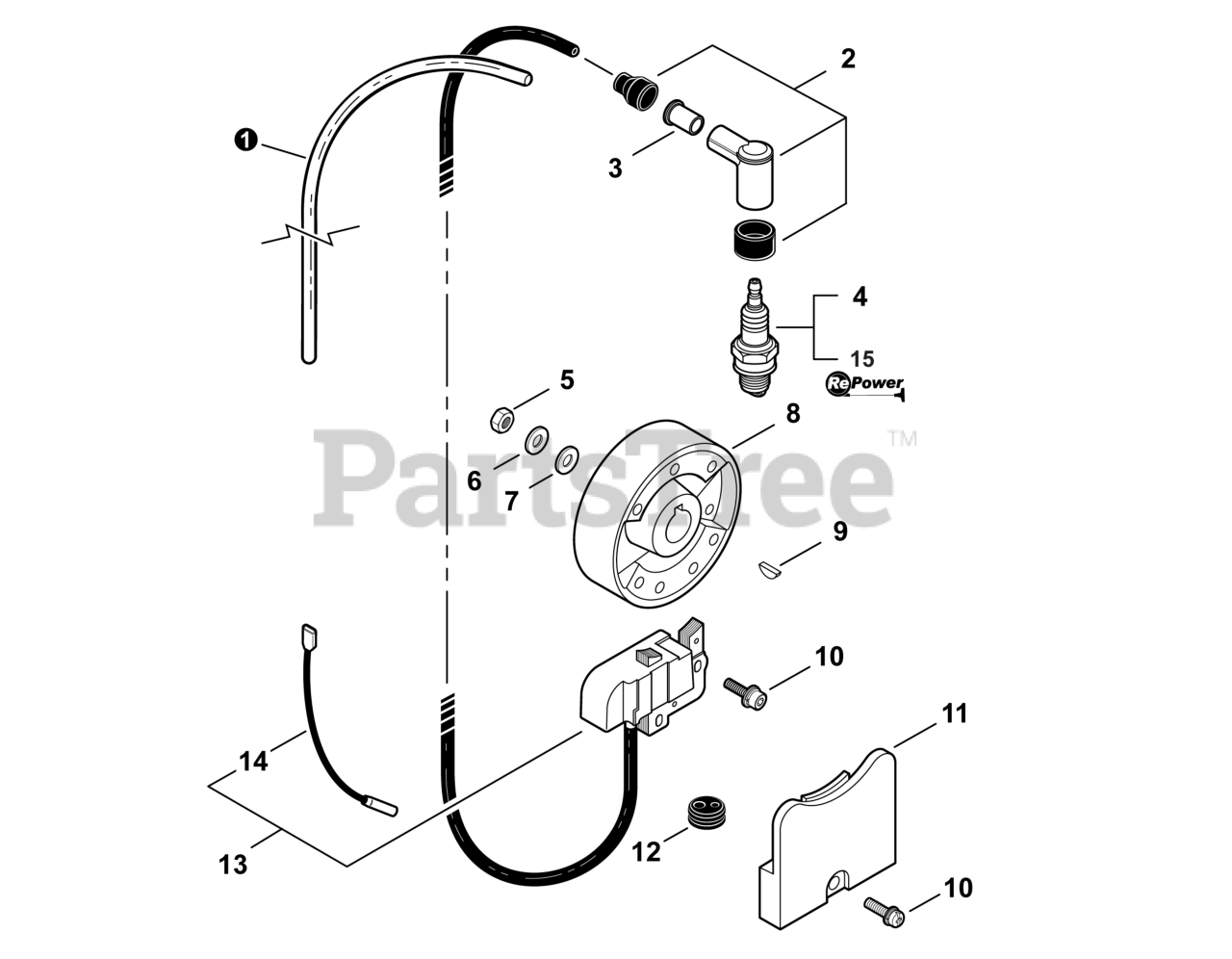

Ignition Parts Diagram

  • Title

1

Echo 15611106160

TUBE, VINYL 6.3×8×380

$1.99

$

In Stock, Qty 5

0

2

Echo 15901210230

CAP, SPARK PLUG

$13.99

$

Usually ships in 2-4 days

0

3

Echo 15901605330

ADAPTOR, SPARK PLUG - CAP

$1.99

$

Usually ships in 2-4 days

0

4

Echo A425000000

SPARK PLUG - BPMR8Y

$3.99

$

In Stock, Qty 20+

0

5

Echo 90050100010

NUT 10

$0.99

$

In Stock, only 2 left!

0

6

Echo 90060500010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

7

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

8

Echo A409000250

FLYWHEEL

$134.99

$

Usually ships in 2-4 days

0

9

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

$

In Stock, Qty 20+

0

10

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

11

Echo 15912908261

COVER, DUST

$6.99

$

In Stock, only 2 left!

0

12

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

13

Echo A415000001

COIL ASSY, IGNITION

Note: Includes Item 14

$113.99

$

In Stock, Qty 6

0

14

Echo V485000190

LEAD - IGNITION

$2.99

$

In Stock, only 3 left!

0

15

Echo 90156

TUNE-UP KIT - REPOWER
(Superseded to 90156Y)

Note: See RePower Maintenance

$27.99

$

In Stock, Qty 20+

0
