PB-760 LNH - Echo Backpack Blower (SN: P39313001001 - P39313999999) Carburetor Parts Diagram

Backpack Blower

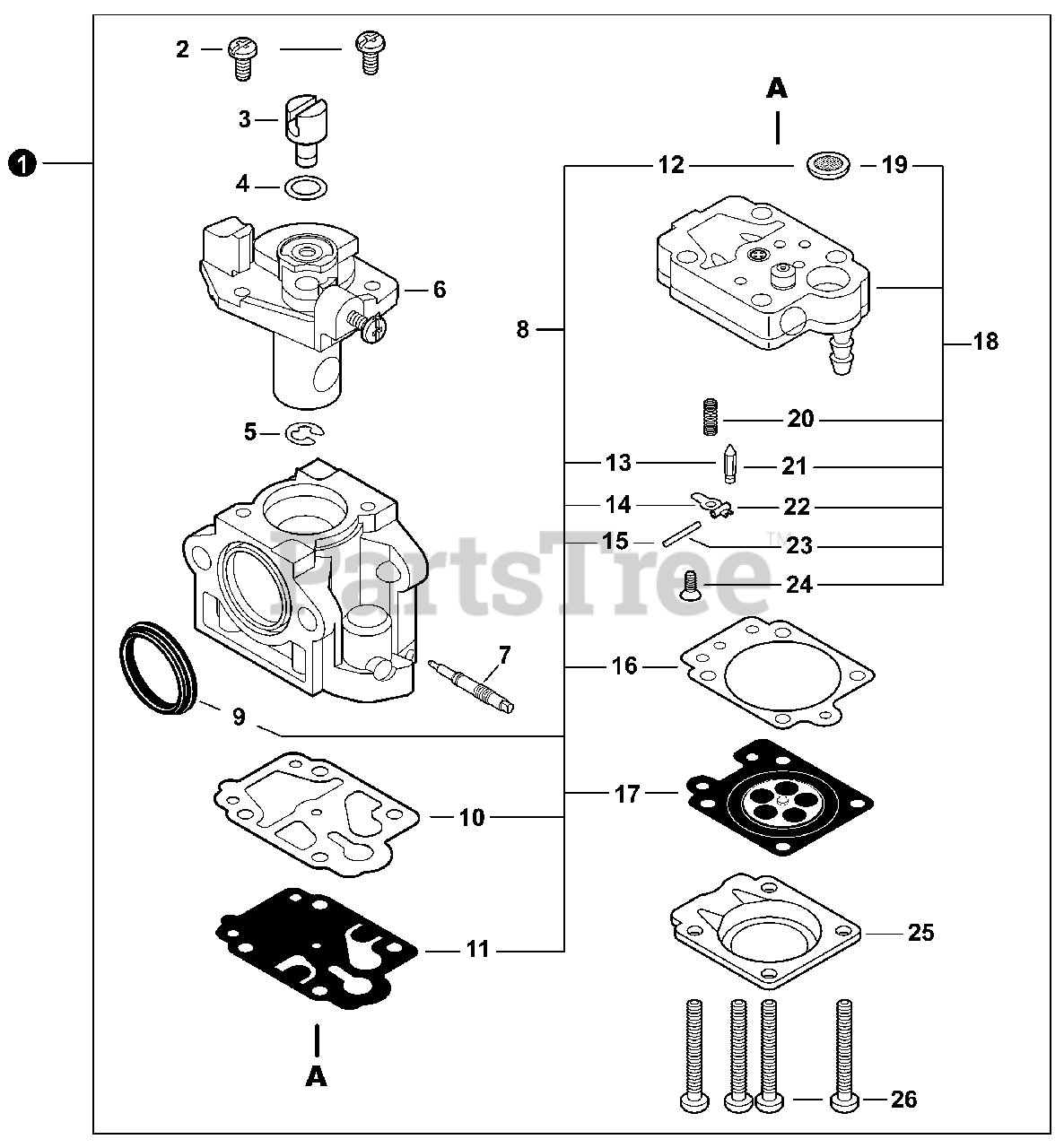

Carburetor Parts Diagram

  • Title

1

Echo A021003971

CARBURETOR - WYK-387

Note: Includes ITEMS 2-26

$91.99

$

In Stock, only 2 left!

0

2

Echo P003002400

SCREW

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

4

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

6

Echo P003004130

VALVE, THROTTLE

$64.99

$

Usually ships in 2-4 days

0

7

Echo P003004900

NEEDLE, HIGH SPEED

$11.99

$

Usually ships in 2-4 days

0

8

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes ITEMS 9-17

$12.99

$

In Stock, Qty 20+

0

9

Echo 12314312110

RING, PACKING

$4.99

$

In Stock, only 3 left!

0

10

Echo P003000100

GASKET, PUMP

$5.99

$

In Stock, only 3 left!

0

11

Echo 12311240630

DIAPHRAGM, FUEL PUMP

$14.99

$

In Stock, only 2 left!

0

12

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, only 3 left!

0

13

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

14

Echo 123123-38330

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

15

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

16

Echo 12314027230

GASKET, METERING DIAPHRAGM

$4.99

$

Usually ships in 2-4 days

0

17

Echo P003001850

DIAPHRAGM, METERING

$9.49

$

In Stock, only 2 left!

0

18

Echo P003005670

BODY ASSY, PUMP

Note: Includes ITEMS 19-24

$26.99

$

Usually ships in 2-4 days

0

19

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, only 3 left!

0

20

Echo P003000450

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

22

Echo 123123-38330

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

23

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

24

Echo P003005510

SCREW

$2.49

$

Usually ships in 2-4 days

0

25

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

26

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0
