PB-760 LNH - Echo Backpack Blower (SN: P39313001001 - P39313999999) Throttle Control S/N: P39313001001 - P39313001087 Parts Diagram

63.3 cc 2-stroke backpack leaf blower (low-noise LNH), hip-mounted throttle, diaphragm carburetor, 68.3 fl oz see-through fuel tank. Delivers 535 CFM at 214 mph, operates at 65 dB(A). Standard starting. Ideal for quick, quiet clearing.

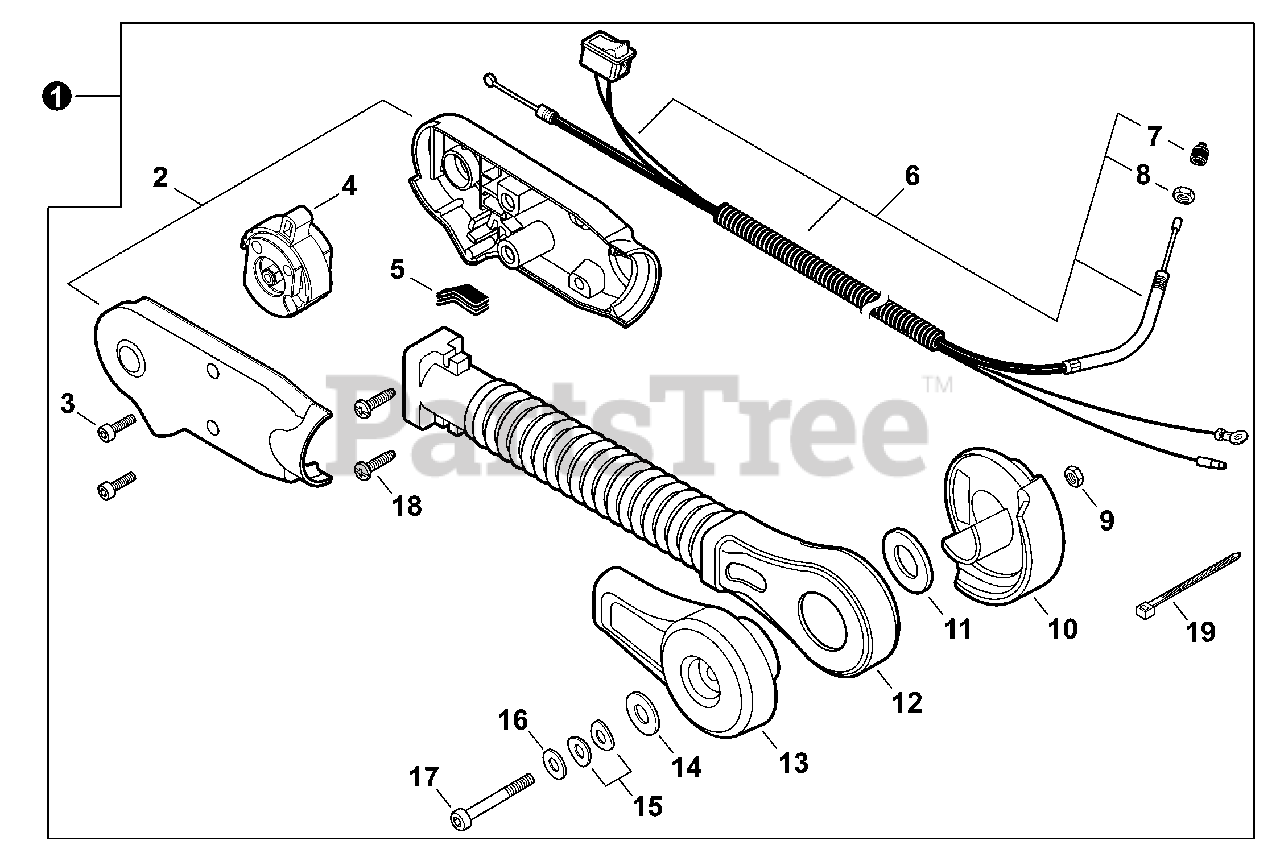

Throttle Control S/N: P39313001001 - P39313001087 Parts Diagram

  • Title

1

Echo P021045690

THROTTLE CONTROL KIT - HIP MOUNT
(Superseded to P021052150)

Note: Includes ITEMS 2-19

$77.99

$

In Stock, Qty 9

0

2

Echo P021014672

GRIP SET, THROTTLE
(Superseded to P021014673)

$6.49

$

In Stock, Qty 10

0

3

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo C470000162

CONTROL, THROTTLE

$10.99

$

In Stock, Qty 5

0

5

Echo V144000181

GROMMET

$2.99

$

In Stock, only 1 left!

0

6

Echo V043000330

CABLE ASSY, CONTROL
(Superseded to P021052160)

Note: Includes ITEMS 7-8

$44.99

$

In Stock, Qty 15

0

7

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

8

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

9

Echo 90056250006

NUT, LOCK M6

$1.99

$

In Stock, only 3 left!

0

10

Echo C472000041

BRACKET, ARM - INNER

$3.49

$

Usually ships in 2-4 days

0

11

Echo V336000000

WASHER 45

$2.49

$

In Stock, Qty 20+

0

12

Echo C456000050

ARM, THROTTLE CONTROL

$10.99

$

In Stock, Qty 9

0

13

Echo C472000050

BRACKET, ARM - OUTER
(Superseded to C472000051)

$3.49

$

In Stock, only 1 left!

0

14

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

15

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

In Stock, only 2 left!

0

16

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

17

Echo V806000030

BOLT, TORX 6×75

$2.49

$

In Stock, only 3 left!

0

18

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0
