PB-760 LNH - Echo Backpack Blower (SN: P43314001001 - P43314999999) Carburetor Parts Diagram

Backpack Blower

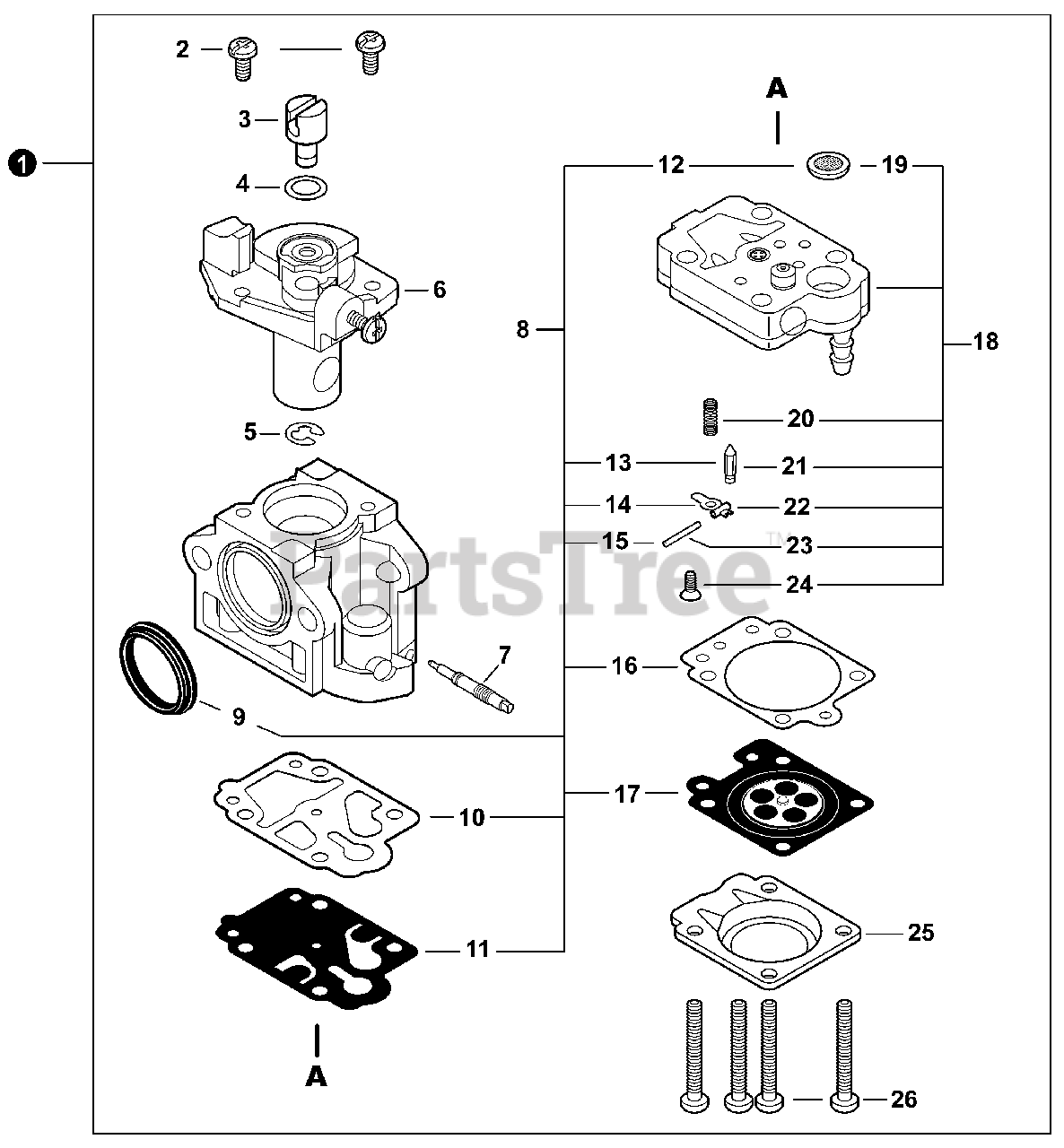

Carburetor Parts Diagram

  • Title

1

Echo A021003971

CARBURETOR - WYK-387

Note: Includes ITEMS 2-26

$76.99

$

In Stock, only 2 left!

0

2

Echo P003002400

SCREW

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

5

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

6

Echo P003004130

VALVE, THROTTLE

$54.99

$

Usually ships in 2-4 days

0

7

Echo P003004900

NEEDLE, HIGH SPEED

$9.49

$

Usually ships in 2-4 days

0

8

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes ITEMS 9-17

$10.99

$

In Stock, Qty 20+

0

9

RING, PACKING

$

$

Not available

10

GASKET, PUMP

$

$

Not available

11

DIAPHRAGM, PUMP

$

$

Not available

12

SCREEN, FUEL INLET

$

$

Not available

13

VALVE, INLET NEEDLE

$

$

Not available

14

LEVER, METERING

$

$

Not available

15

PIN, METERING LEVER

$

$

Not available

16

GASKET, METERING DIAPHRAGM

$

$

Not available

17

DIAPHRAGM, METERING

$

$

Not available

18

Echo P003005670

BODY ASSY, PUMP

Note: Includes ITEMS 19-24

$22.99

$

Usually ships in 2-4 days

0

19

SCREEN, FUEL INLET

$

$

Not available

20

SPRING, METERING LEVER

$

$

Not available

21

VALVE, INLET NEEDLE

$

$

Not available

22

LEVER, METERING

$

$

Not available

23

PIN, METERING LEVER

$

$

Not available

24

SCREW

$

$

Not available

25

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

26

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0
