PB-760 LNH - Echo Backpack Blower (SN: P43314001001 - P43314999999) Ignition Parts Diagram

63.3 cc 2-stroke backpack leaf blower (low-noise LNH), hip-mounted throttle, diaphragm carburetor, 68.3 fl oz see-through fuel tank. Delivers 535 CFM at 214 mph, operates at 65 dB(A). Standard starting. Ideal for quick, quiet clearing.

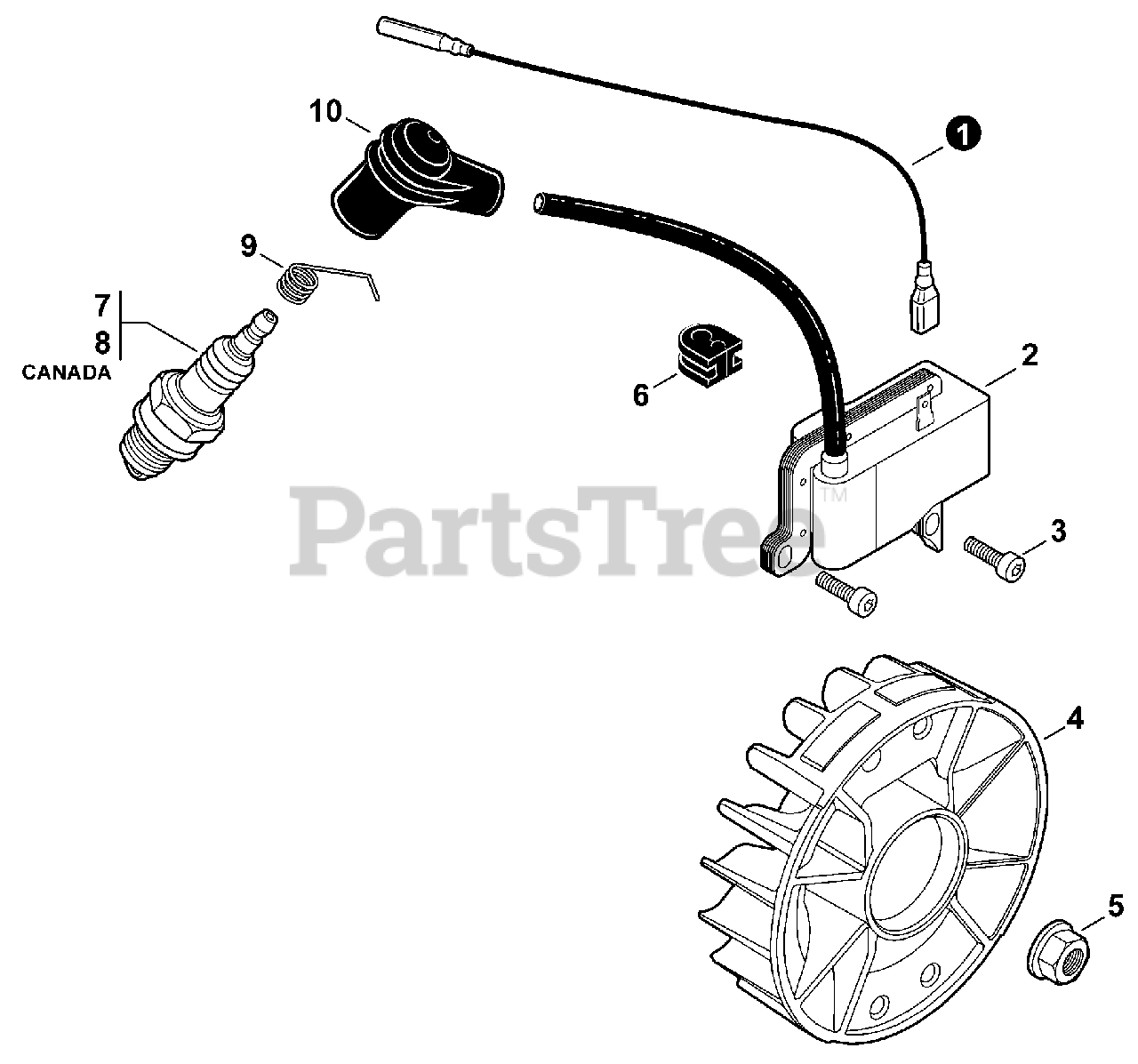

Ignition Parts Diagram

  • Title

1

Echo V485002900

LEAD L= 470

$3.49

$

In Stock, only 3 left!

0

2

Echo A411001521

COIL, IGNITION

$108.99

$

Usually ships in 2-4 days

0

3

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

4

Echo A409000390

FLYWHEEL

$160.99

$

Usually ships in 2-4 days

0

5

Echo 90051900010

NUT, FLANGE 10×1.25

$2.49

$

In Stock, only 4 left!

0

6

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

7

Echo 15901030330

SPARK PLUG - BPM6Y

$4.49

$

Usually ships in 2-4 days

0

8

Echo A425000050

SPARK PLUG - BPMR6Y
(Superseded to Discontinued)

Note: CANADA

$

$

Not available

9

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

10

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0
