PB-760 LNT - Echo Backpack Blower (SN: P37912001001 - P37912999999) Carburetor -- WYK-387 Parts Diagram

Portable low-noise backpack blower powered by a 63.3 cc 2-stroke engine. Delivers 535 CFM at 214 MPH, runs at 65 dB(A), weighs 26.2 lb (11.9 kg) and holds 68.3 fl oz of fuel.

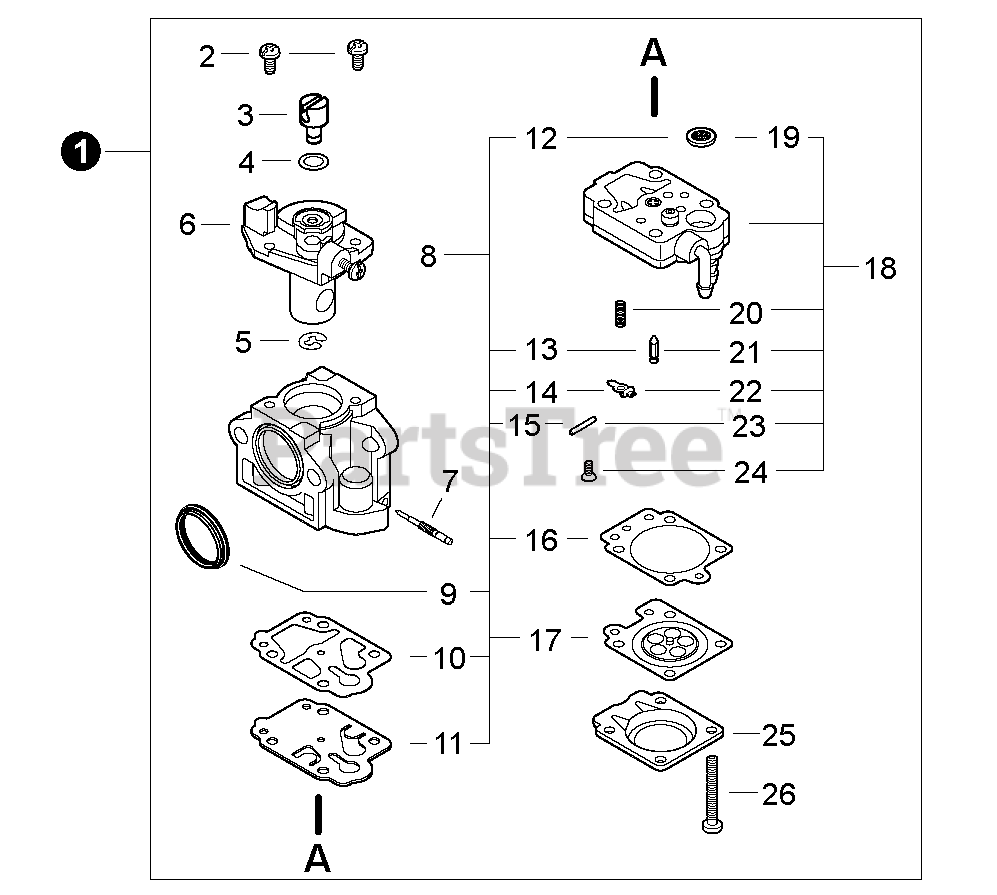

Carburetor -- WYK-387 Parts Diagram

  • Title

1

Echo A021003970

CARBURETOR - WYK-387
(Superseded to A021003971)

Note: Includes ITEMS 2-26

$91.99

$

In Stock, only 2 left!

0

2

Echo P003002400

SCREW

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

4

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12317307930

E-RING

$1.49

$

Usually ships in 2-4 days

0

6

Echo P003004130

VALVE, THROTTLE

$64.99

$

Usually ships in 2-4 days

0

7

Echo P003004900

NEEDLE, HIGH SPEED

$11.99

$

Usually ships in 2-4 days

0

8

Echo P033000060

REPAIR KIT, CARBURETOR
(Superseded to P003000060)

Note: Includes ITEMS 9-17

$12.99

$

In Stock, Qty 20+

0

9

SEAL

$

$

Not available

10

GASKET, PUMP

$

$

Not available

11

DIAPHRAGM, PUMP

$

$

Not available

12

STRAINER

$

$

Not available

13

VALVE, INLET NEEDLE

$

$

Not available

14

LEVER, METERING

$

$

Not available

15

PIN, METERING LEVER

$

$

Not available

16

GASKET, METERING

$

$

Not available

17

DIAPHRAGM, METERING

$

$

Not available

18

Echo P003005160

BODY ASSY, PUMP

Note: Includes ITEMS 19-24

$22.99

$

In Stock, only 2 left!

0

19

STRAINER

$

$

Not available

20

SPRING, METERING LEVER

$

$

Not available

21

VALVE, INLET NEEDLE

$

$

Not available

22

LEVER, METERING

$

$

Not available

23

PIN, METERING LEVER

$

$

Not available

24

SCREW

$

$

Not available

25

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

26

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0
