PB-760 LNT - Echo Backpack Blower (SN: P37912001001 - P37912999999) Engine Parts Diagram

Portable low-noise backpack blower powered by a 63.3 cc 2-stroke engine. Delivers 535 CFM at 214 MPH, runs at 65 dB(A), weighs 26.2 lb (11.9 kg) and holds 68.3 fl oz of fuel.

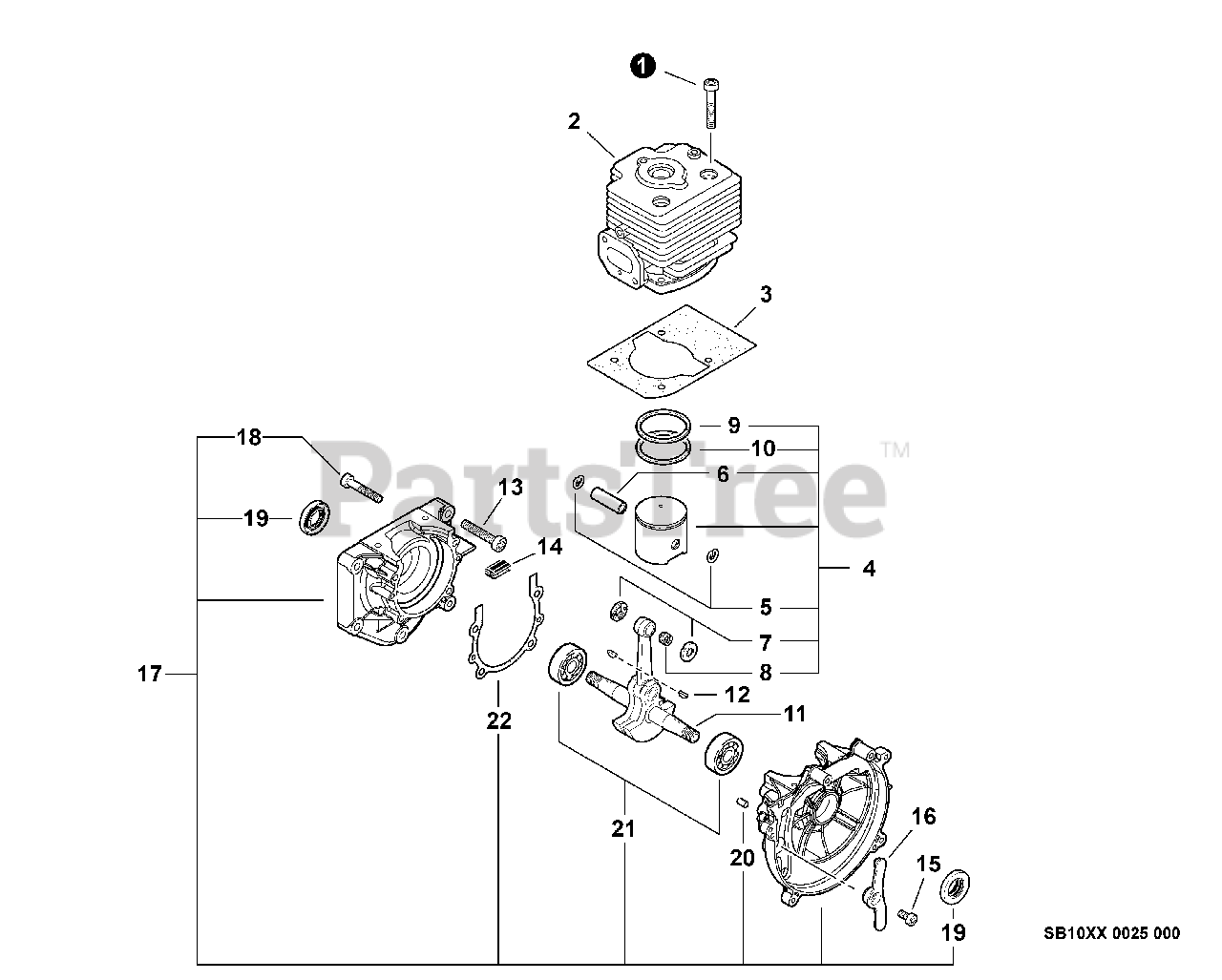

Engine Parts Diagram

  • Title

1

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

2

Echo A130002130

CYLINDER

$212.99

$

Usually ships in 2-4 days

0

3

Echo V100000770

GASKET, CYLINDER

$6.49

$

Usually ships in 2-4 days

0

4

Echo P021002983

PISTON KIT
(Superseded to P021002984)

Note: Includes ITEMS 5-10

$106.99

$

In Stock, Qty 14

0

5

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

6

Echo V608000010

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

7

Echo V307000060

WASHER, THRUST

$7.99

$

In Stock, only 2 left!

0

8

Echo V555000010

BEARING, NEEDLE 10

$11.99

$

In Stock, Qty 20+

0

9

Echo A101000030

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

10

Echo A101000020

RING, PISTON

$8.49

$

In Stock, Qty 6

0

11

Echo A011001260

CRANKSHAFT ASSY

$254.99

$

Usually ships in 2-4 days

0

12

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

$

In Stock, Qty 20+

0

13

Echo V254000220

BOLT, TORX 6×30

$1.49

$

In Stock, Qty 5

0

14

Echo A127000400

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

15

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

16

Echo A127000240

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

17

Echo P021017260

CRANKCASE KIT

Note: Includes ITEMS 18-22

$175.99

$

Usually ships in 2-4 days

0

18

Echo V805000180

BOLT, TORX 5×30

$1.99

$

In Stock, Qty 20+

0

19

Echo V508000010

SEAL, OIL 15
(Superseded to V508000100)

$6.49

$

In Stock, Qty 20+

0

20

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 14

0

21

Echo 9403236302

BEARING, BALL 6302

$21.99

$

In Stock, only 2 left!

0

22

Echo V102000070

GASKET, CRANKCASE

$2.49

$

In Stock, only 1 left!

0
