PB-760 LNT - Echo Backpack Blower (SN: P39413001001 - P39413999999) Backpack Frame Parts Diagram

Portable low-noise backpack blower powered by a 63.3 cc 2-stroke engine. Delivers 535 CFM at 214 MPH, runs at 65 dB(A), weighs 26.2 lb (11.9 kg) and holds 68.3 fl oz of fuel.

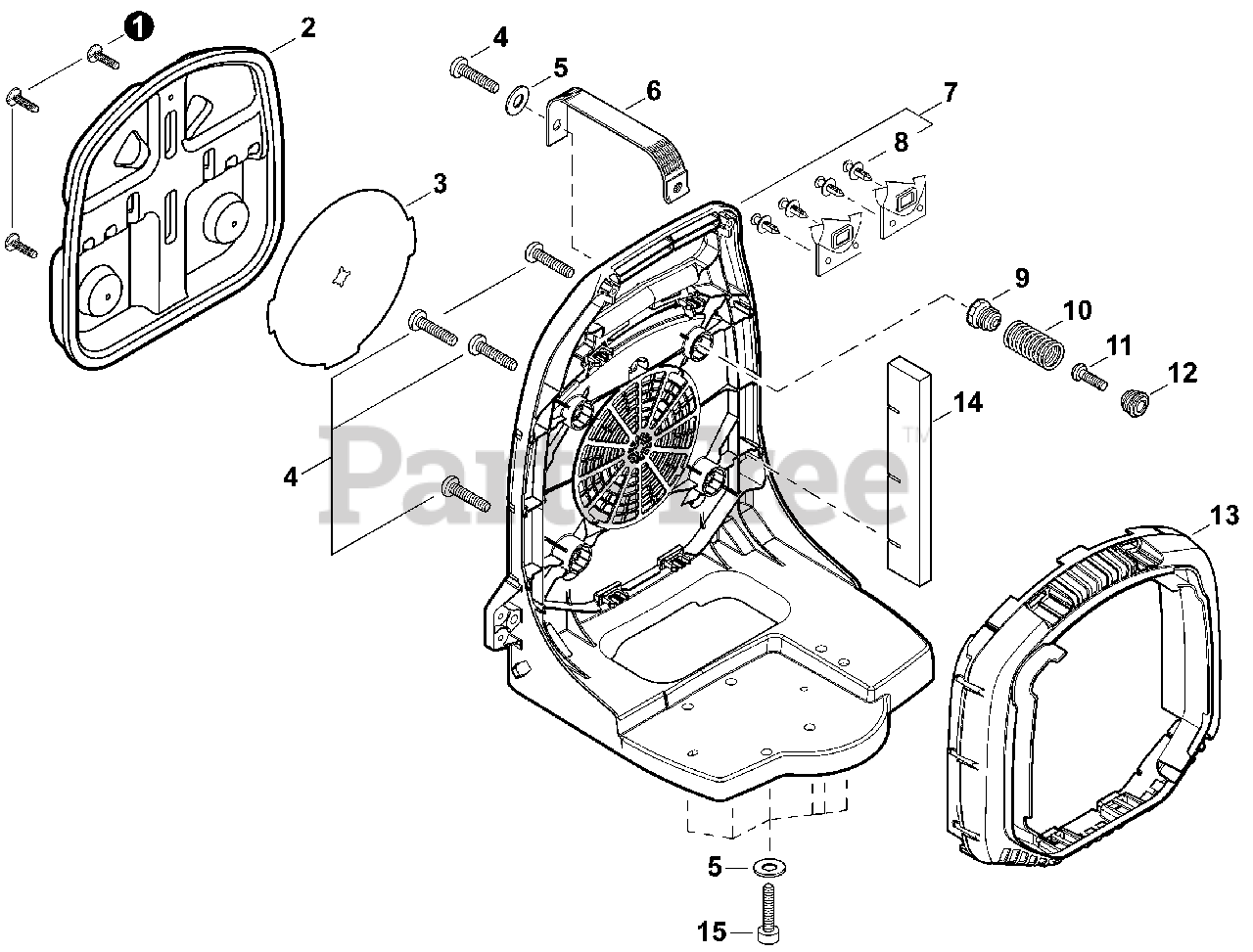

Backpack Frame Parts Diagram

  • Title

1

Echo V491000090

CLIP

$1.49

$

In Stock, Qty 20+

0

2

Echo C630000190

CUSHION, BACKPACK

$32.99

$

In Stock, Qty 9

0

3

Echo C635000000

INSERT, COLD WEATHER

$7.99

$

In Stock, only 3 left!

0

4

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

6

Echo C617000380

STRAP, SAFETY 1.2×100

$1.49

$

In Stock, only 3 left!

0

7

Echo P200000500

FRAME, BACKPACK WITH CLIPS

Note: Includes item 8

$101.99

$

In Stock, Qty 5

0

8

Echo V491000540

CLIP

$1.99

$

In Stock, Qty 20+

0

9

Echo V456000271

HOLDER, SPRING

$1.99

$

In Stock, Qty 20+

0

10

Echo V450000780

SPRING, COMPRESSION

$2.49

$

In Stock, Qty 20+

0

11

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo V456000260

HOLDER, SPRING

$2.49

$

In Stock, Qty 15

0

13

Echo E104000230

GUARD, DEBRIS

$18.99

$

Usually ships in 2-4 days

0

14

Echo V129000170

PAD, FOAM

$6.49

$

Usually ships in 2-4 days

0

15

Echo V253001030

SCREW 5×25

$0.99

$

In Stock, only 4 left!

0
