PB-760 LNT - Echo Backpack Blower (SN: P39611001001 - P39611999999) Fuel System Parts Diagram

Portable low-noise backpack blower powered by a 63.3 cc 2-stroke engine. Delivers 535 CFM at 214 MPH, runs at 65 dB(A), weighs 26.2 lb (11.9 kg) and holds 68.3 fl oz of fuel.

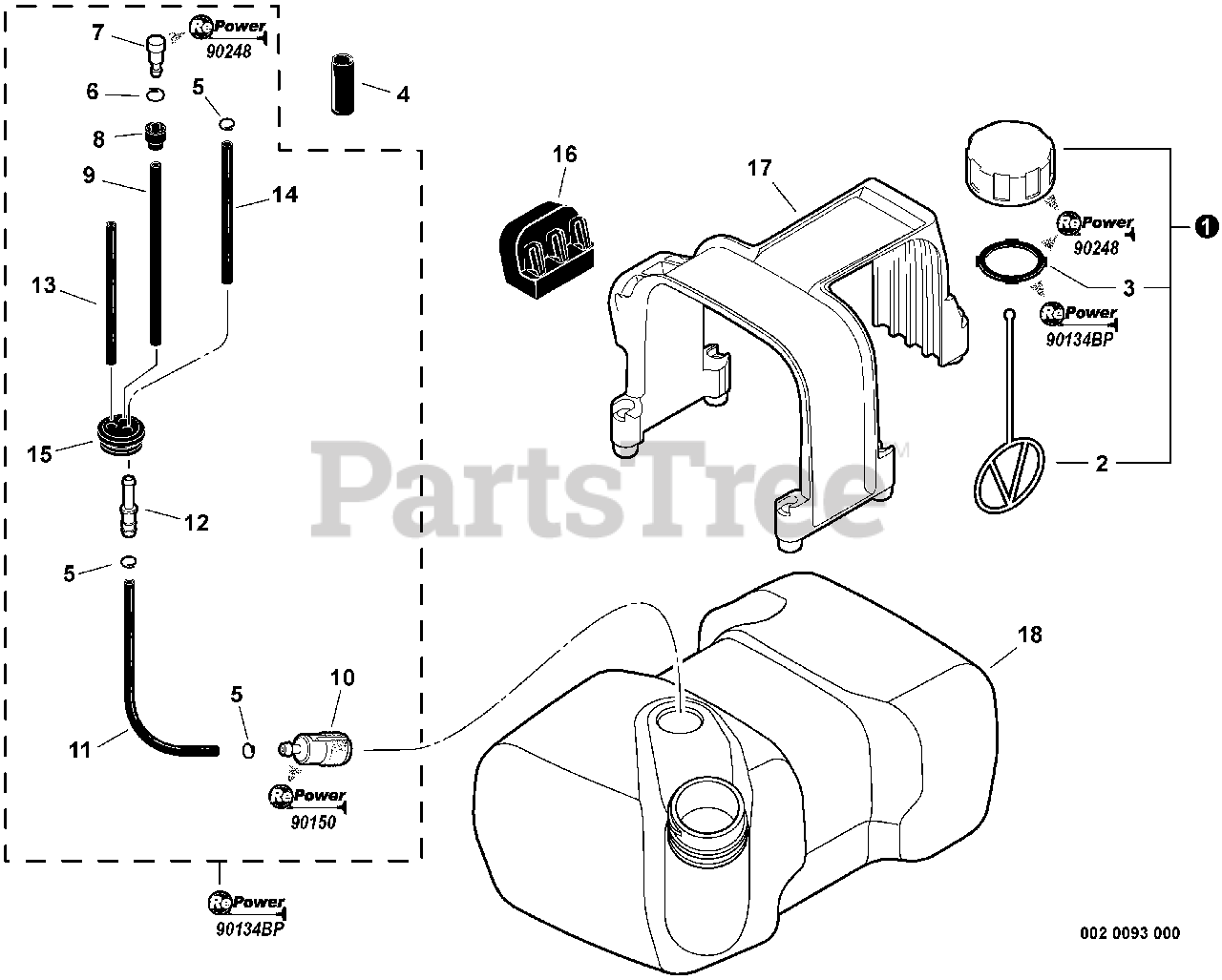

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 15

0

3

Echo V107000150

GASKET, FUEL CAP

$4.99

$

Usually ships in 2-4 days

0

4

Echo V475004400

TUBE, FUEL LINE 16×18×L40
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

5

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 10

0

6

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

8

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 11

0

9

Echo V471002310

PIPE, FUEL 3×6×130 BLACK
(Superseded to V471002311)

$1.49

$

In Stock, Qty 5

0

10

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

$8.49

$

In Stock, Qty 20+

0

11

Echo V470001950

PIPE, FUEL 3×5×105L BLACK

$5.49

$

In Stock, only 1 left!

0

12

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

13

Echo V471001470

PIPE, FUEL 2.4×5×200 BLACK
(Superseded to V471001471)

$4.99

$

In Stock, Qty 7

0

14

Echo V471003580

PIPE, FUEL 3×5×135L BLACK

$6.49

$

In Stock, only 2 left!

0

15

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 19

0

16

Echo V420004620

CUSHION

$5.99

$

Usually ships in 2-4 days

0

17

Echo A392000280

RETAINER, FUEL TANK
(Superseded to A392000281)

$11.99

$

In Stock, Qty 7

0

18

Echo A350000920

TANK, FUEL
(Superseded to A350000921)

$40.99

$

In Stock, Qty 7

0

19

Echo 90134BP

FUEL SYSTEM KIT
(Superseded to 90134Y)

$35.99

$

In Stock, Qty 13

0

20

Echo 90150

TUNE-UP KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available
