PB-760 LNT - Echo Backpack Blower (SN: P43414001001 - P43414999999) Intake Parts Diagram

Portable low-noise backpack blower powered by a 63.3 cc 2-stroke engine. Delivers 535 CFM at 214 MPH, runs at 65 dB(A), weighs 26.2 lb (11.9 kg) and holds 68.3 fl oz of fuel.

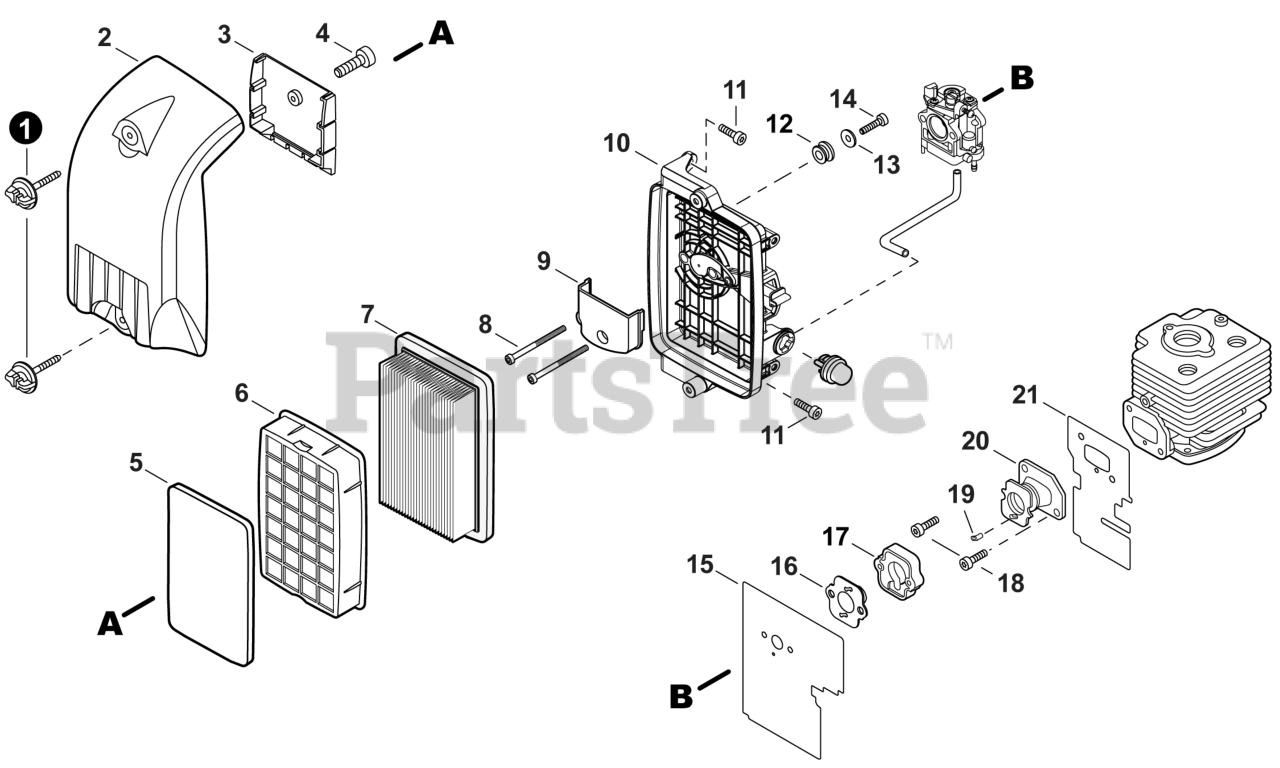

Intake Parts Diagram

  • Title

1

Echo A235000020

THUMBSCREW

$7.49

$

In Stock, Qty 20+

0

2

Echo A232000551

COVER, AIR FILTER

$22.99

$

In Stock, Qty 11

0

3

Echo A230000060

SUPPORT, PRE-FILTER

$5.99

$

Usually ships in 2-4 days

0

4

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

5

Echo A226000480

PRE-FILTER, FOAM

$4.99

$

In Stock, Qty 20+

0

6

Echo A227000030

RETAINER, PRE-FILTER

$15.99

$

In Stock, only 3 left!

0

7

Echo A226000410

FILTER, AIR

$12.99

$

In Stock, Qty 20+

0

8

Echo V805000090

BOLT, TORX 5x55

$0.99

$

In Stock, Qty 20+

0

9

Echo A244000090

PLATE, PREVENT

$3.49

$

In Stock, Qty 14

0

10

Echo P021017282

CASE, AIR FILTER

$13.99

$

In Stock, Qty 16

0

11

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

12

Echo C480000130

GUIDE, CABLE

$1.49

$

In Stock, Qty 16

0

13

Echo 13191103460

WASHER 5.5x16x0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

15

Echo V103001691

HEAT SHIELD, INTAKE

$5.49

$

Usually ships in 2-4 days

0

16

Echo A205000020

GASKET, INTAKE

$7.49

$

Usually ships in 2-4 days

0

17

Echo A201000010

ADAPTOR, INTAKE

$6.99

$

In Stock, Qty 7

0

18

Echo V253001000

SCREW 5x12

$1.99

$

Usually ships in 2-4 days

0

19

Echo V351000020

COLLAR 3

$1.49

$

In Stock, Qty 14

0

20

Echo A202000090

BELLOWS, INTAKE

$22.99

$

In Stock, Qty 6

0

21

Echo V103000530

HEAT SHIELD, INTAKE

$5.49

$

In Stock, Qty 12

0
