PB-770 H - Echo Backpack Blower (SN: P05211001001 - P05211999999) Fuel System S/N: P05211012511 - P05211017887 Parts Diagram

Compact backpack blower featuring a 63.3 cc 2-stroke air-cooled engine with diaphragm carburetor, delivering 756 CFM at 234 mph. Runs on 68.3 fl oz of fuel, weighs 10 kg (22 lb), and operates at 74 dB(A). Dimensions: 375 x 535 x 475 mm. Hip-mounted variable-speed throttle for precise control.

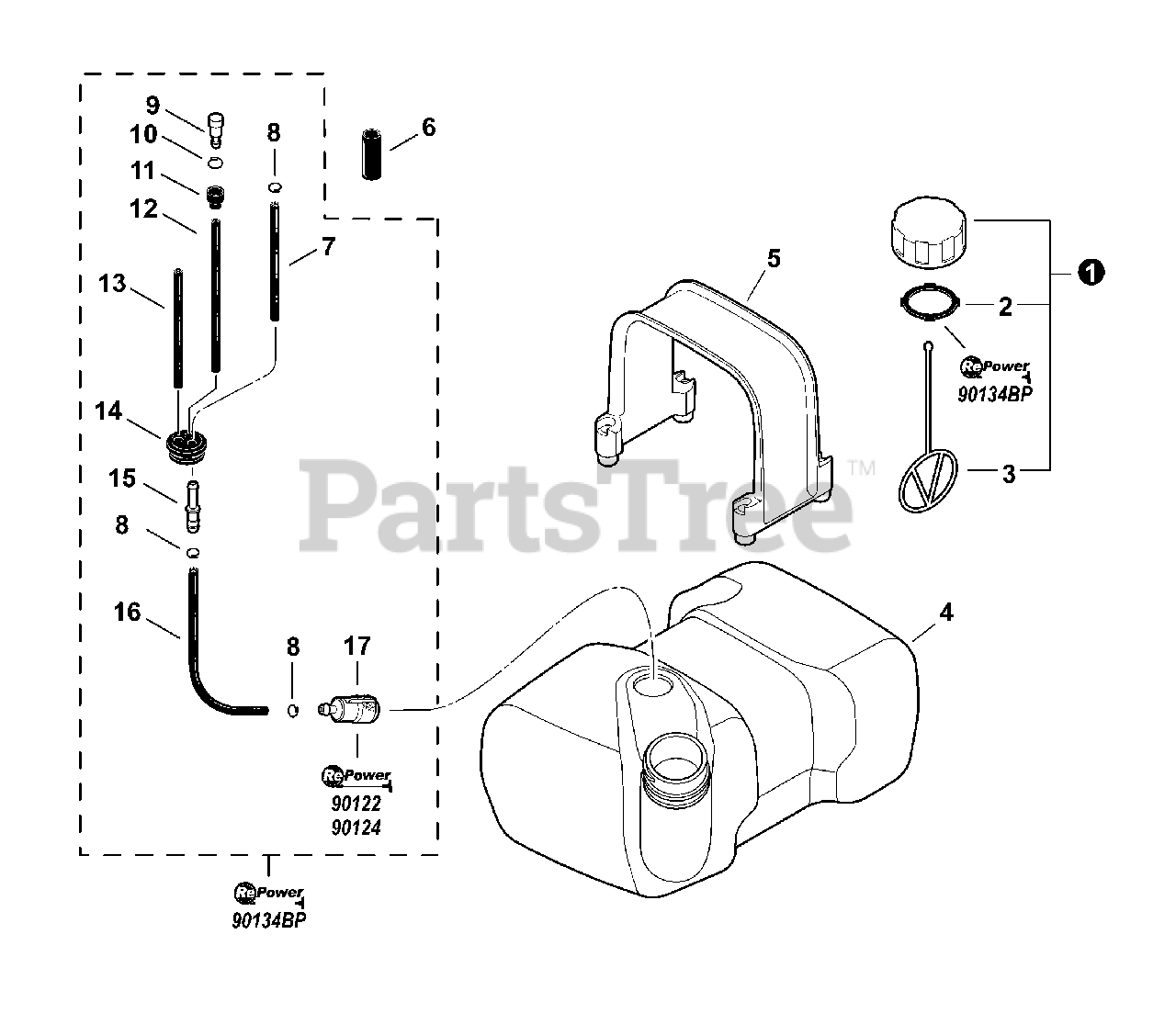

Fuel System S/N: P05211012511 - P05211017887 Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, FUEL CAP

Note: See RePower Maintenance Kits

$4.99

$

In Stock, only 3 left!

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 15

0

4

Echo A350000920

TANK, FUEL
(Superseded to A350000921)

$40.99

$

In Stock, Qty 7

0

5

Echo A392000040

RETAINER, FUEL TANK

$9.99

$

In Stock, only 2 left!

0

6

Echo V475004400

TUBE, FUEL LINE 16×18×L40
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

7

Echo V471003580

PIPE, FUEL 3×5×135L BLACK

Note: See RePower Maintenance Kits

$6.49

$

In Stock, only 2 left!

0

8

Echo V490001240

CLIP Ø6

Note: See RePower Maintenance Kits

$0.99

$

In Stock, Qty 10

0

9

Echo A356000031

VENT ASSY

Note: See RePower Maintenance Kits

$9.49

$

In Stock, Qty 20+

0

10

Echo V490001230

CLIP Ø6.5 MM

Note: See RePower Maintenance Kits

$0.99

$

In Stock, Qty 20+

0

11

Echo 13132840630

HOLDER, VENT

Note: See RePower Maintenance Kits

$7.49

$

In Stock, Qty 11

0

12

Echo V471002310

PIPE, FUEL 3×6×130 BLACK
(Superseded to V471002311)

Note: See RePower Maintenance Kits

$1.49

$

In Stock, Qty 5

0

13

Echo V471001470

PIPE, FUEL 2.4×5×200 BLACK
(Superseded to V471001471)

Note: See RePower Maintenance Kits

$4.99

$

In Stock, Qty 7

0

14

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

Note: See RePower Maintenance Kits

$2.99

$

In Stock, Qty 19

0

15

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

Note: See RePower Maintenance Kits

$0.99

$

In Stock, Qty 20+

0

16

Echo V470001950

PIPE, FUEL 3×5×105L BLACK

Note: See RePower Maintenance Kits

$5.49

$

In Stock, only 1 left!

0

17

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

Note: See RePower Maintenance Kits

$8.49

$

In Stock, Qty 20+

0
