PB-770 H - Echo Backpack Blower (SN: P30613001001 - P30613999999) Fuel System S/N: P30613001001 - P30613001500 Parts Diagram

Backpack Blower

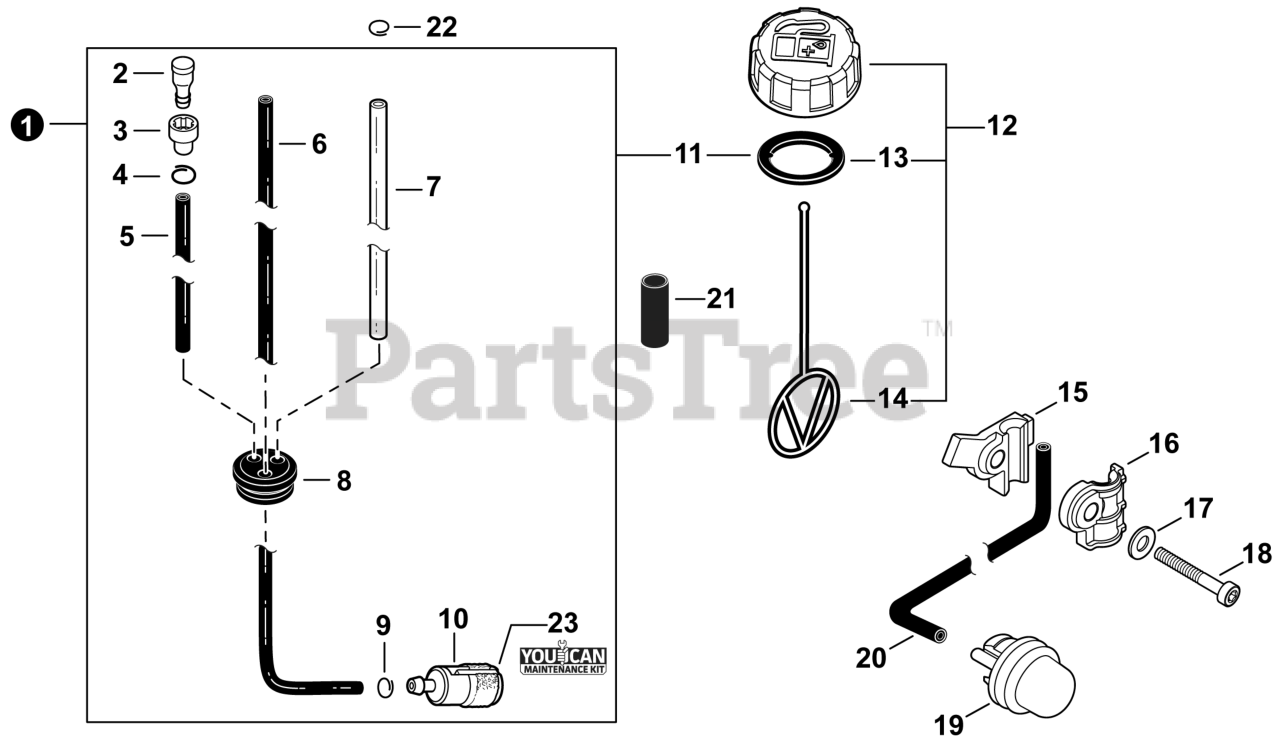

Fuel System S/N: P30613001001 - P30613001500 Parts Diagram

  • Title

1

Echo 90123

FUEL SYSTEM KIT
(Superseded to 90134-1)

Note: Includes ITEMS 2-11

$35.99

$

In Stock, only 3 left!

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471002310

PIPE, FUEL 3×6×130 BLACK
(Superseded to V471002311)

$1.49

$

In Stock, Qty 5

0

6

Echo V470000860

PIPE, FUEL 3×5×240 BLACK

$

$

Not available

7

Echo V471002320

PIPE, FUEL RETURN 2.4×5×170
(Superseded to V471001470)

$4.99

$

In Stock, only 2 left!

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 17

0

9

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0

10

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

Note: Included in Tune-up Kit

$8.49

$

In Stock, Qty 8

0

11

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 12

0

12

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 13-14

$7.49

$

In Stock, Qty 9

0

13

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 12

0

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

15

Echo E187000271

CLAMP, LOWER

$1.49

$

Usually ships in 2-4 days

0

16

Echo E187000280

CLAMP, UPPER

$1.99

$

Usually ships in 2-4 days

0

17

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000230

BOLT, TORX 5×25

$1.49

$

In Stock, only 3 left!

0

19

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

20

Echo V471001241

PIPE, PURGE 2.5×5×140

$3.99

$

In Stock, Qty 5

0

21

Echo V475004400

TUBE, FUEL LINE 16×18×L40
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

22

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0

23

Echo 90122Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$36.99

$

In Stock, only 3 left!

0
