PB-770 T - Echo Backpack Blower (SN: P03012001001 - P03012999999) Carburetor Parts Diagram

Backpack Blower - 63.3 cc two-stroke, air-cooled engine with diaphragm carburetor. 68.3 fl oz fuel tank. 756 CFM airflow at 234 mph nozzle. 74 dB(A) noise. Dry weight 9.8 kg (21.6 lb). Dimensions (no pipes): 375 x 190 x 475 mm (14.8 x 19.3 x 18.7 in).

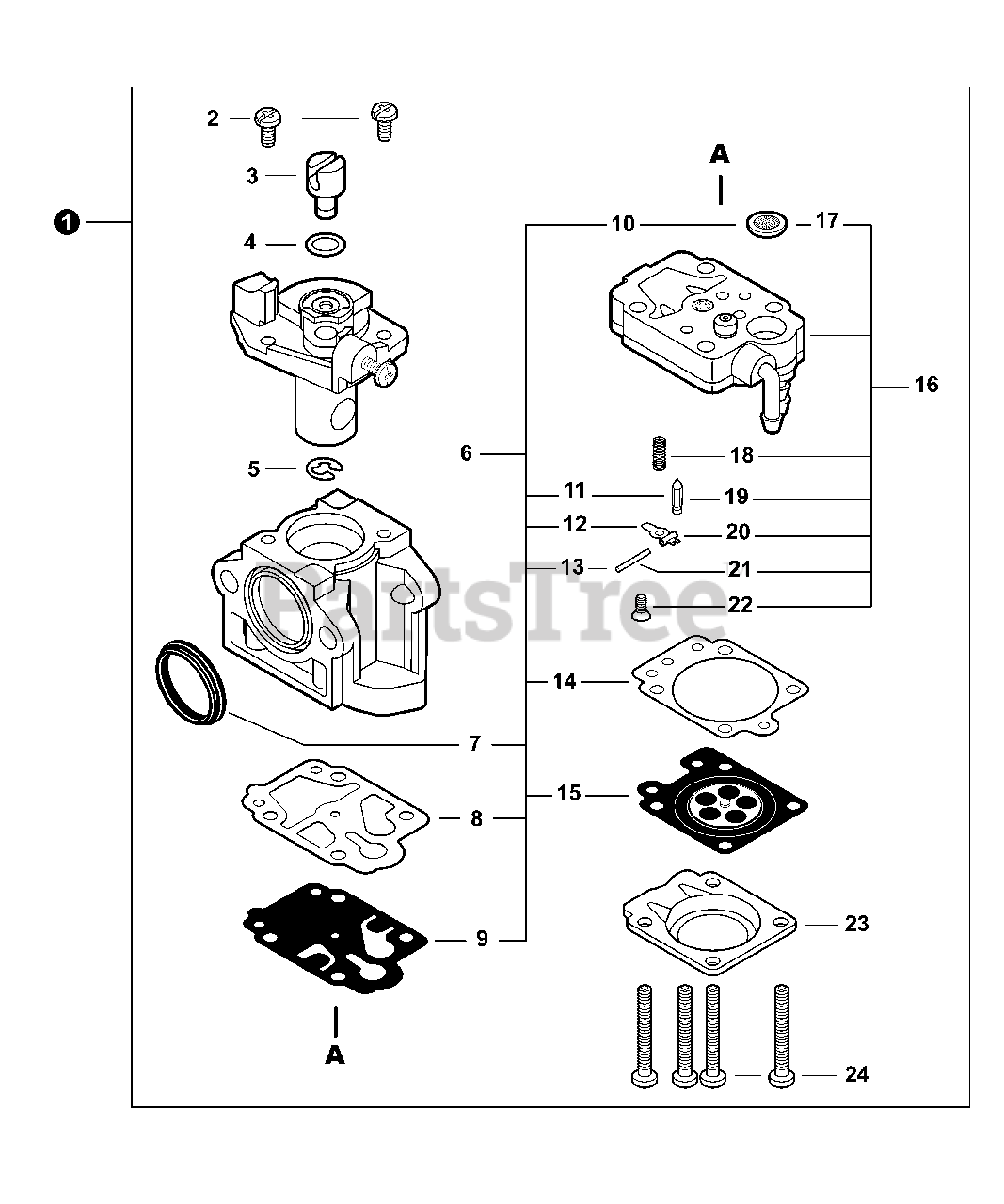

Carburetor Parts Diagram

  • Title

1

Echo A021003941

CARBURETOR - WYK-406
(Superseded to A021003942)

Note: Includes ITEMS 2-24

$118.99

$

In Stock, Qty 9

0

2

Echo P003002400

SCREW

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

4

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

6

Echo P003000060

REPAIR KIT, CARBURETOR

Note: Includes ITEMS 7-15

$12.99

$

In Stock, Qty 20+

0

7

RING, PACKING

$

$

Not available

8

GASKET, PUMP

$

$

Not available

9

DIAPHRAGM, PUMP

$

$

Not available

10

SCREEN, FUEL INLET

$

$

Not available

11

VALVE, INLET NEEDLE

$

$

Not available

12

LEVER, METERING

$

$

Not available

13

PIN, METERING LEVER

$

$

Not available

14

GASKET, METERING DIAPHRAGM

$

$

Not available

15

DIAPHRAGM, METERING

$

$

Not available

16

Echo P003005500

BODY ASSY, PUMP

Note: Includes ITEMS 17-22

$25.99

$

Usually ships in 2-4 days

0

17

SCREEN, FUEL INLET

$

$

Not available

18

SPRING, METERING LEVER

$

$

Not available

19

VALVE, INLET NEEDLE

$

$

Not available

20

LEVER, METERING

$

$

Not available

21

PIN, METERING LEVER

$

$

Not available

22

SCREW

$

$

Not available

23

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

24

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0
