PB-770 T - Echo Backpack Blower (SN: P03012001001 - P03012999999) Exhaust Parts Diagram

Backpack Blower - 63.3 cc two-stroke, air-cooled engine with diaphragm carburetor. 68.3 fl oz fuel tank. 756 CFM airflow at 234 mph nozzle. 74 dB(A) noise. Dry weight 9.8 kg (21.6 lb). Dimensions (no pipes): 375 x 190 x 475 mm (14.8 x 19.3 x 18.7 in).

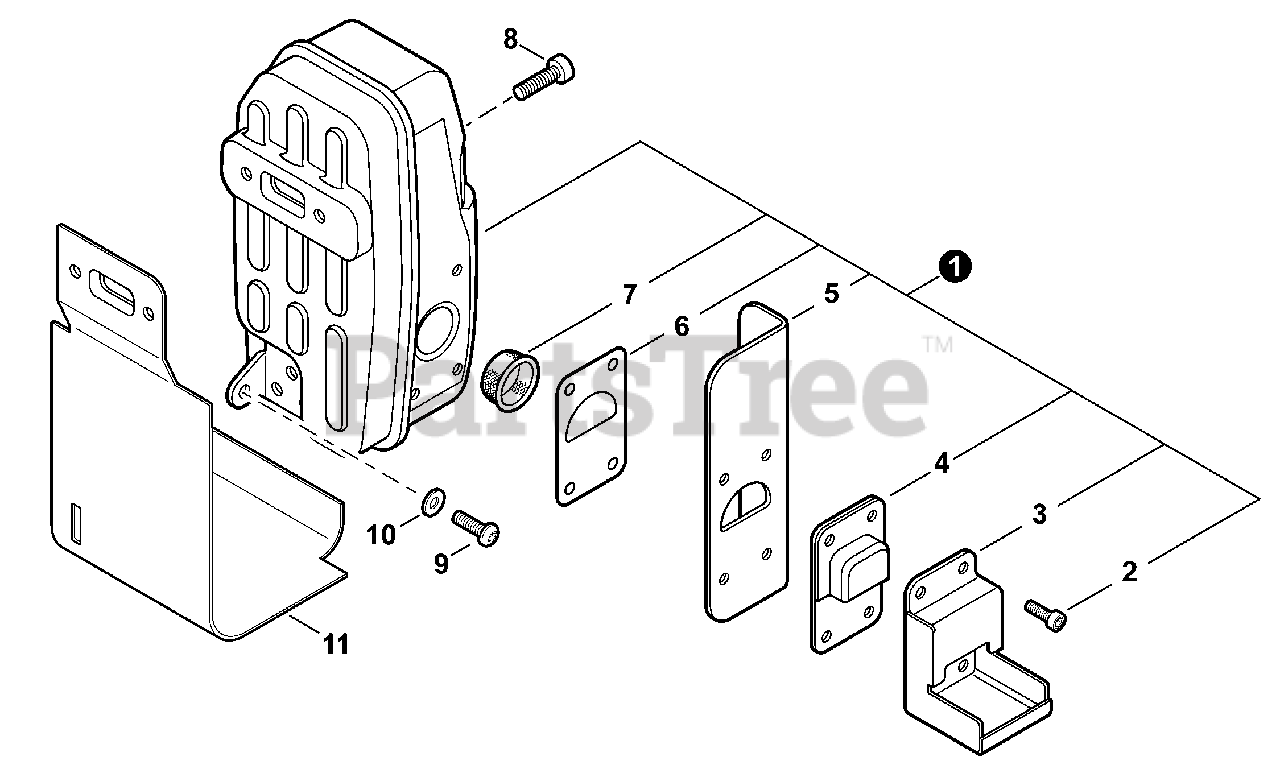

Exhaust Parts Diagram

  • Title

1

Echo P021017271

MUFFLER ASSY
(Superseded to P021017273)

Note: Includes ITEMS 2-7

$171.99

$

In Stock, only 2 left!

0

2

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

3

Echo A313001080

GUIDE, EXHAUST

$5.49

$

In Stock, only 2 left!

0

4

Echo A313000520

GUIDE, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

5

Echo V104000560

HEAT SHIELD, EXHAUST

$5.99

$

In Stock, Qty 6

0

6

Echo V104000550

GASKET, EXHAUST
(Superseded to V104000551)

$3.99

$

Usually ships in 2-4 days

0

7

Echo A310000000

SCREEN, SPARK ARRESTER

$4.99

$

Usually ships in 2-4 days

0

8

Echo V806000050

BOLT, TORX 6×20

$0.99

$

In Stock, Qty 8

0

9

Echo V805000250

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

11

Echo V104000950

HEAT SHIELD, EXHAUST

$11.99

$

In Stock, only 2 left!

0
