PB-770 T - Echo Backpack Blower (SN: P05311001001 - P05311999999) Fuel System S/N: P05311001001 - P05311004300 Parts Diagram

Backpack Blower

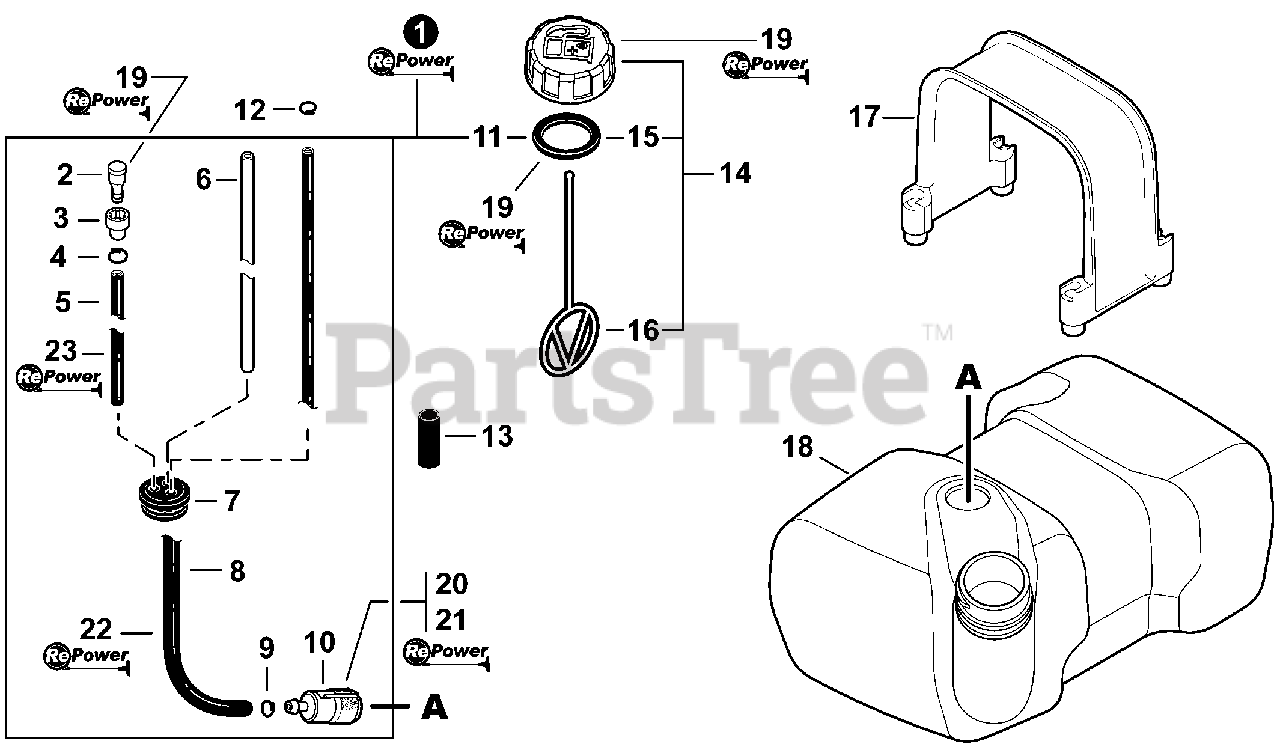

Fuel System S/N: P05311001001 - P05311004300 Parts Diagram

  • Title

1

Echo 90123

FUEL SYSTEM KIT - REPOWER
(Superseded to 90134-1)

Note: Includes ITEMS 2-11

$35.99

$

In Stock, Qty 10

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

4

Echo 13201326630

CLIP 6.5MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

5

Echo V471002310

PIPE, FUEL VENT 3×6×130
(Superseded to V471002311)

$1.49

$

In Stock, Qty 7

0

6

Echo V471002320

PIPE, FUEL RETURN 2.4×5×170
(Superseded to V471001470)

$4.99

$

In Stock, only 2 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V470000860

PIPE, FUEL 3×5×240 BLACK

$

$

Not available

9

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 8

0

10

Echo A369000000

FILTER, FUEL 125-528
(Superseded to A369000001)

$8.49

$

In Stock, Qty 20+

0

11

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 8

0

13

Echo V475004400

TUBE, FUEL LINE 16×18×L40
(Superseded to V475004401)

$1.49

$

Usually ships in 2-4 days

0

14

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 15-16

$7.49

$

In Stock, Qty 20+

0

15

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

16

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, only 4 left!

0

17

Echo A392000040

RETAINER, FUEL TANK

$9.99

$

In Stock, only 2 left!

0

18

Echo A350000920

TANK, FUEL
(Superseded to A350000921)

$40.99

$

In Stock, only 4 left!

0

19

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

20

Echo 90122

TUNE-UP KIT - REPOWER
(Superseded to 90122Y)

$36.99

$

In Stock, only 3 left!

0

21

Echo 90124

FILTER KIT - REPOWER
(Superseded to 90122Y)

$36.99

$

In Stock, only 3 left!

0

22

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$50.99

$

In Stock, Qty 10

0

23

Echo 90015

PIPE, BULK - REPOWER 3×6mm BLACK

$48.99

$

In Stock, only 4 left!

0
