PB-770 T - Echo Backpack Blower (SN: P30713001001 - P30713999999) Throttle Control S/N: P30713005578 - P30713009289 Parts Diagram

Backpack Blower - 63.3 cc two-stroke, air-cooled engine with diaphragm carburetor. 68.3 fl oz fuel tank. 756 CFM airflow at 234 mph nozzle. 74 dB(A) noise. Dry weight 9.8 kg (21.6 lb). Dimensions (no pipes): 375 x 190 x 475 mm (14.8 x 19.3 x 18.7 in).

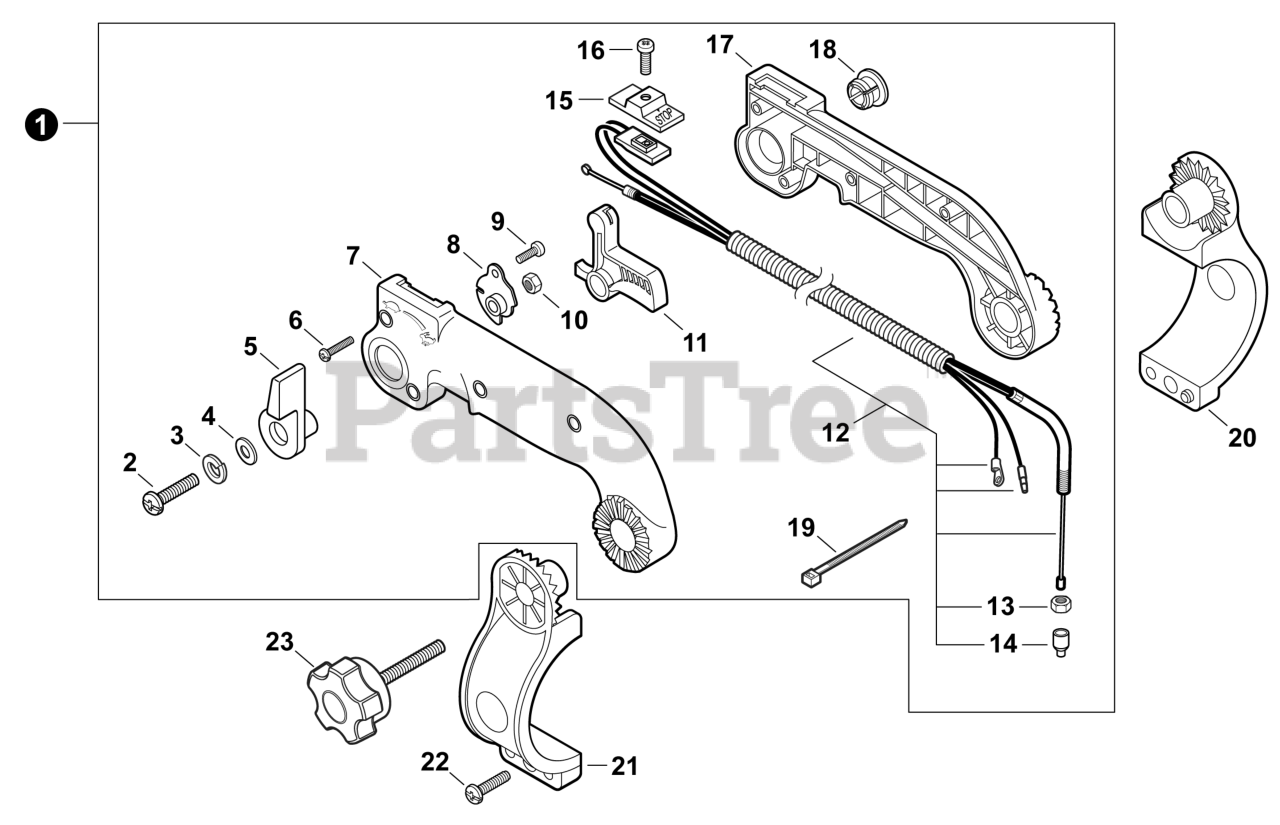

Throttle Control S/N: P30713005578 - P30713009289 Parts Diagram

  • Title

1

Echo P021043020

THROTTLE CONTROL KIT - TUBE MOUNT

Note: Includes ITEMS 2-19

$68.99

$

Usually ships in 2-4 days

0

2

Echo 90023506020

SCREW 6×20

$0.99

$

In Stock, only 1 left!

0

3

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 13

0

4

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

5

Echo 17805407560

CONTROL, THROTTLE

$15.99

$

In Stock, Qty 8

0

6

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

7

Echo 35131507560

CONTROL HANDLE - LEFT

$27.99

$

In Stock, only 2 left!

0

8

Echo 17812307561

BRACKET, THROTTLE

$4.49

$

In Stock, only 4 left!

0

9

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

10

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

11

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 11

0

12

Echo V043000940

CABLE ASSY, CONTROL

Note: Includes ITEMS 13-14

$38.99

$

Usually ships in 2-4 days

0

13

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

14

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

15

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

16

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

17

Echo 35131107560

CONTROL HANDLE - RIGHT

$13.99

$

In Stock, only 2 left!

0

18

Echo 35114607560

PLUG

$3.99

$

Usually ships in 2-4 days

0

19

Echo 17812143230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

20

Echo C405000370

BRACKET, RIGHT

$2.99

$

In Stock, Qty 20+

0

21

Echo C405000360

BRACKET, LEFT

$2.99

$

In Stock, Qty 20+

0

22

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

23

Echo 30581208260

KNOB, SCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0
