PB-770 T - Echo Backpack Blower (SN: P59312001001 - P59312999999) Engine Cover Parts Diagram

Backpack Blower - 63.3 cc two-stroke, air-cooled engine with diaphragm carburetor. 68.3 fl oz fuel tank. 756 CFM airflow at 234 mph nozzle. 74 dB(A) noise. Dry weight 9.8 kg (21.6 lb). Dimensions (no pipes): 375 x 190 x 475 mm (14.8 x 19.3 x 18.7 in).

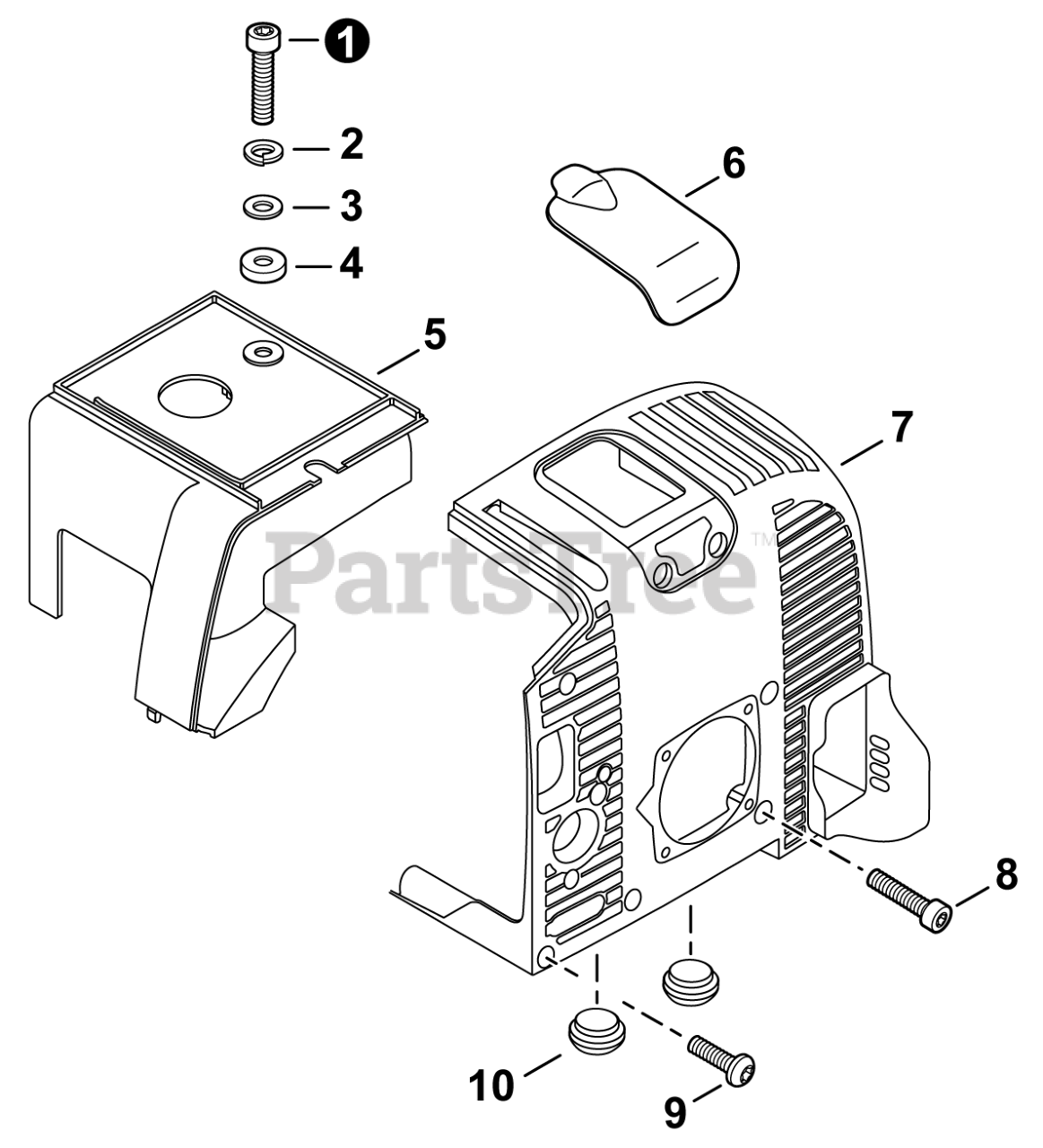

Engine Cover Parts Diagram

  • Title

1

Echo V253000990

BOLT 5x20

$1.99

$

In Stock, Qty 20+

0

2

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 8

0

3

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo V323000060

WASHER 5.2x14xT3

$3.99

$

Usually ships in 2-4 days

0

5

Echo A160001242

COVER, CYLINDER

$6.49

$

Usually ships in 2-4 days

0

6

Echo A429000060

COVER, SPARK PLUG

$4.49

$

In Stock, Qty 7

0

7

Echo A190000852

COVER, ENGINE

$23.99

$

In Stock, Qty 20+

0

8

Echo V253001010

BOLT, TORX 5x16

$1.99

$

In Stock, only 4 left!

0

9

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

10

Echo V420000910

CUSHION

$1.99

$

In Stock, Qty 16

0
