PB-770 T - Echo Backpack Blower (SN: P59312001001 - P59312999999) Intake Parts Diagram

Backpack Blower

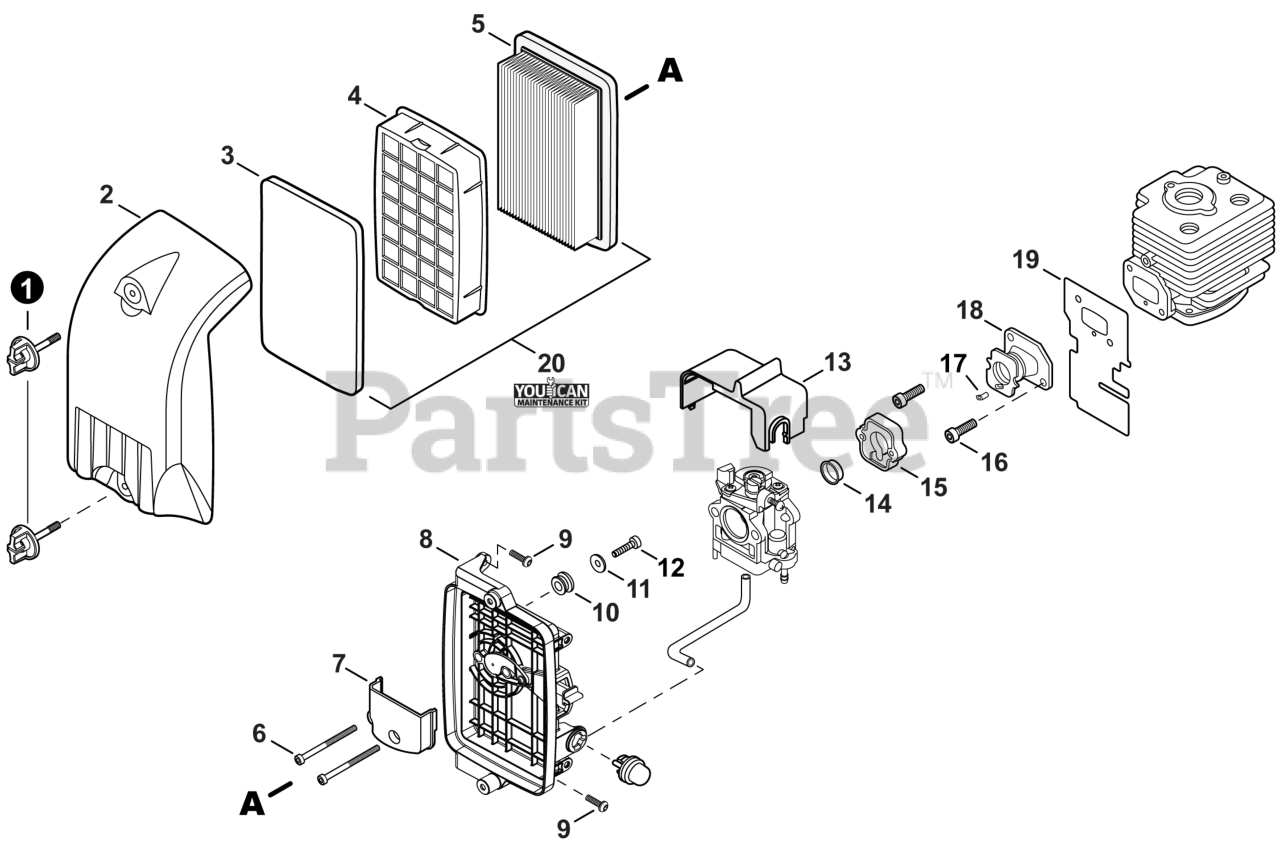

Intake Parts Diagram

  • Title

1

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, Qty 6

0

2

Echo A232000551

COVER, AIR FILTER

$19.99

$

In Stock, Qty 6

0

3

Echo A226000480

PRE-FILTER, FOAM

$4.49

$

In Stock, Qty 20+

0

4

Echo A227000030

RETAINER, PRE-FILTER

$12.99

$

In Stock, only 1 left!

0

5

Echo A226000410

FILTER, AIR

$10.99

$

In Stock, Qty 20+

0

6

Echo V805000190

BOLT, TORX 5x55

$1.49

$

In Stock, Qty 13

0

7

Echo A244000090

PLATE, PREVENT

$2.99

$

In Stock, Qty 17

0

8

Echo P021017282

CASE, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

9

Echo V805000010

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

10

Echo C480000130

GUIDE, CABLE

$1.49

$

In Stock, Qty 17

0

11

Echo 13191103460

WASHER 5.5x16x0.8

$0.99

$

In Stock, Qty 9

0

12

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 5

0

13

Echo A246000040

CAP, CARBURETOR

$2.99

$

Usually ships in 2-4 days

0

14

Echo A205000000

RING, SEAL

$0.99

$

In Stock, Qty 9

0

15

Echo A201000010

ADAPTOR, INTAKE

$5.99

$

In Stock, Qty 8

0

16

Echo V253001000

SCREW 5x12

$1.49

$

Usually ships in 2-4 days

0

17

Echo V351000020

COLLAR 3

$1.49

$

In Stock, Qty 6

0

18

Echo A202000090

BELLOWS, INTAKE

$18.99

$

In Stock, only 2 left!

0

19

Echo V103000530

HEAT SHIELD, INTAKE

$4.49

$

In Stock, only 2 left!

0

20

Echo 90122Y

TUNE-UP KIT - YOUCANT

$33.99

$

In Stock, Qty 20+

0
