PB 80C-00 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

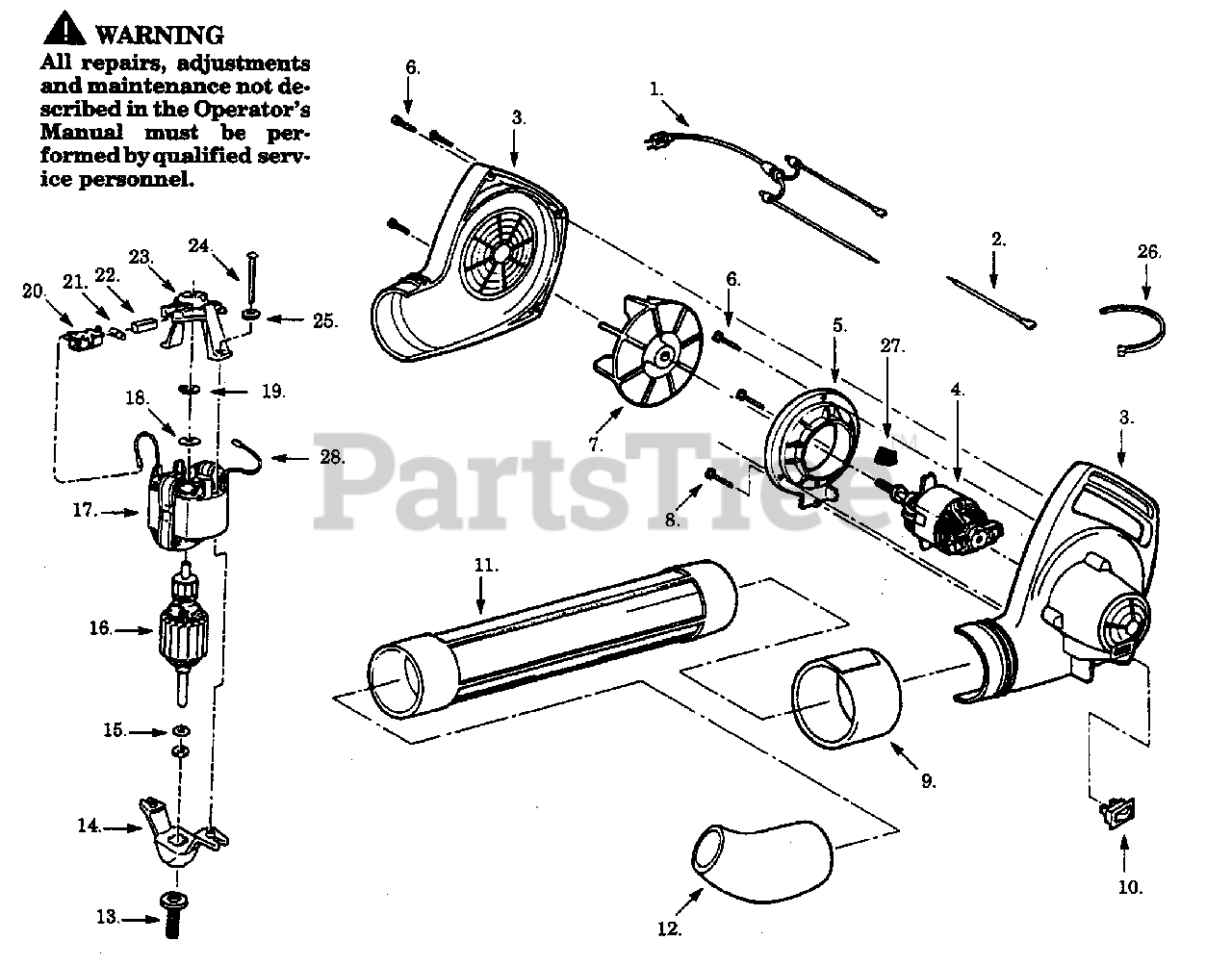

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534441001

Harness Ass'y.

$

$

Not available

2

Poulan 534440800

Leadwire Ass'y.

$

$

Not available

3

Poulan 534444612

Housing Set

$

$

Not available

4

Poulan 534444101

Motor/Adapter Ass'y.

$

$

Not available

5

Poulan 534408505

Mounting Plate

$

$

Not available

6

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 534319315

Impeller

$

$

Not available

8

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534408415

Ferrule Sleeve

$

$

Not available

10

Poulan 534332502

Switch Ass'y.

$

$

Not available

11

Poulan 534352705

Outlet Tube

$

$

Not available

12

Poulan 534373405

Curved Nozzle

$

$

Not available

13

Poulan 534440700

Impeller Adapter

$

$

Not available

14

Poulan 534710671

Endbell Ass'y. (Drive)

$

$

Not available

15

Poulan 534520022

Washer

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 534440201

Armature Ass'y.

$36.99

$

Usually ships in 3-10 days

0

17

Poulan 534440100

Field Ass'y.

$

$

Not available

18

Poulan 534520031

Washer

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

20

Poulan 534260007

Brush Holder

$

$

Not available

21

Poulan 534570009

Brush Spring

$

$

Not available

22

Poulan 534200018

Brush

$

$

Not available

23

Poulan 534710641

Endbell Ass'y.(Brush)

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 534500262

Screw

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534520020

Lockwasher

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 534134704

Tie Wrap

$

$

Not available

27

Poulan 534569300

Rubber Spacer

$

$

Not available

28

Poulan 534810031

Lead Wire

$

$

Not available
