PB-9 - Echo Backpack Blower Air Cleaner Parts Diagram

Echo PB-9 Backpack Blower - compact, air-cooled 2-cycle single-cylinder 40 cc engine delivering robust airflow for construction, demolition, and landscaping. Dimensions: 34.5 x 43.5 x 45.5 cm (13.5 x 17.1 x 17.9 in). Weight: 9.6 kg (21.2 lb). Ideal for high-volume dust removal with ergonomic, lightweight design.

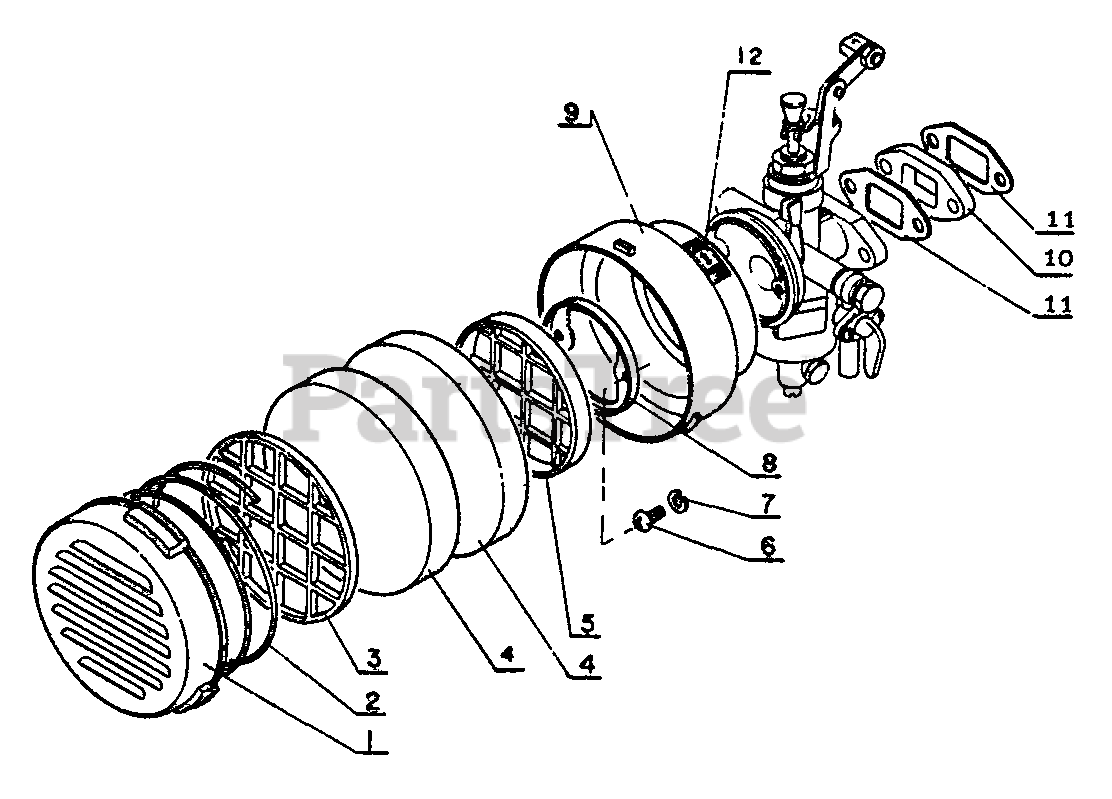

Air Cleaner Parts Diagram

  • Title

Echo 13030001110

AIR FILTER ASSY
(Superseded to Discontinued)

Note: Consists of 1 thru 9

$

$

Not available

1

Echo 13031301110

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

2

Echo 13031600410

SPRING, AIR FILTER COVER

$3.99

$

Usually ships in 2-4 days

0

3

Echo 13031101110

HOLDER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 13031000410

FILTER, AIR

$7.49

$

In Stock, only 2 left!

0

5

Echo 13031901110

GRID, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90022004012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

7

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo 13042000110

BRACKET, AIR FILTER

$2.49

$

Usually ships in 2-4 days

0

9

Echo 13031401110

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

12

Echo 89012100310

LABEL - CHOKE
(Superseded to 890121-00660)

$

$

Not available

10

Echo 130017-01110

INSULATOR

$3.99

$

Usually ships in 2-4 days

0

11

Echo 130016-01110

PACKING

$0.99

$

In Stock, only 3 left!

0
