PB-9 - Echo Backpack Blower Backpack Frame, Strap Parts Diagram

Echo PB-9 Backpack Blower - compact, air-cooled 2-cycle single-cylinder 40 cc engine delivering robust airflow for construction, demolition, and landscaping. Dimensions: 34.5 x 43.5 x 45.5 cm (13.5 x 17.1 x 17.9 in). Weight: 9.6 kg (21.2 lb). Ideal for high-volume dust removal with ergonomic, lightweight design.

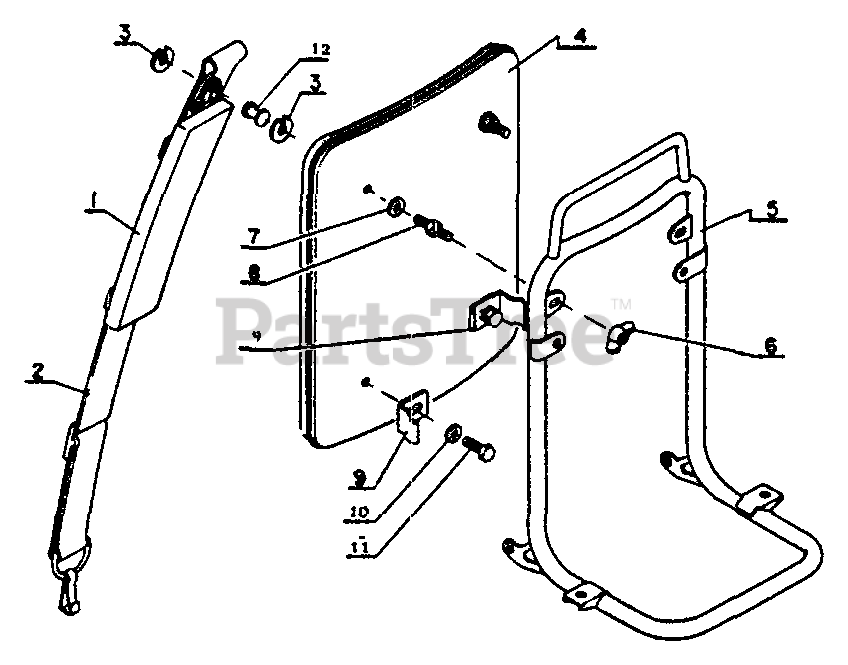

Backpack Frame, Strap Parts Diagram

  • Title

1

Echo 30032201610

PAD, STRAP
(Superseded to 30032202910)

$

$

Not available

2

Echo 30030101110

BACKPACK STRAP ASSY
(Superseded to 30030102110)

$

$

Not available

3

Echo 30032800310

STRAP ASSY

$1.99

$

Usually ships in 2-4 days

0

4

Echo 30010501110

PLATE, CUSHION

$73.99

$

Usually ships in 2-4 days

0

5

Echo 30000500360

FRAME, BACKPACK
(Superseded to Discontinued)

$

$

Not available

6

Echo 30021801110

NUT, WING
(Superseded to Discontinued)

$

$

Not available

7

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

8

Echo 30021901110

STUD
(Superseded to Discontinued)

$

$

Not available

9

Echo 300220-01110

BRACKET, CUSHION
(Superseded to Discontinued)

$

$

Not available

10

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 90010005010

BOLT - 5×10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 30033300310

BUTTON

$1.49

$

Usually ships in 2-4 days

0
