PB-9 - Echo Backpack Blower Carburetor Parts Diagram

Backpack Blower

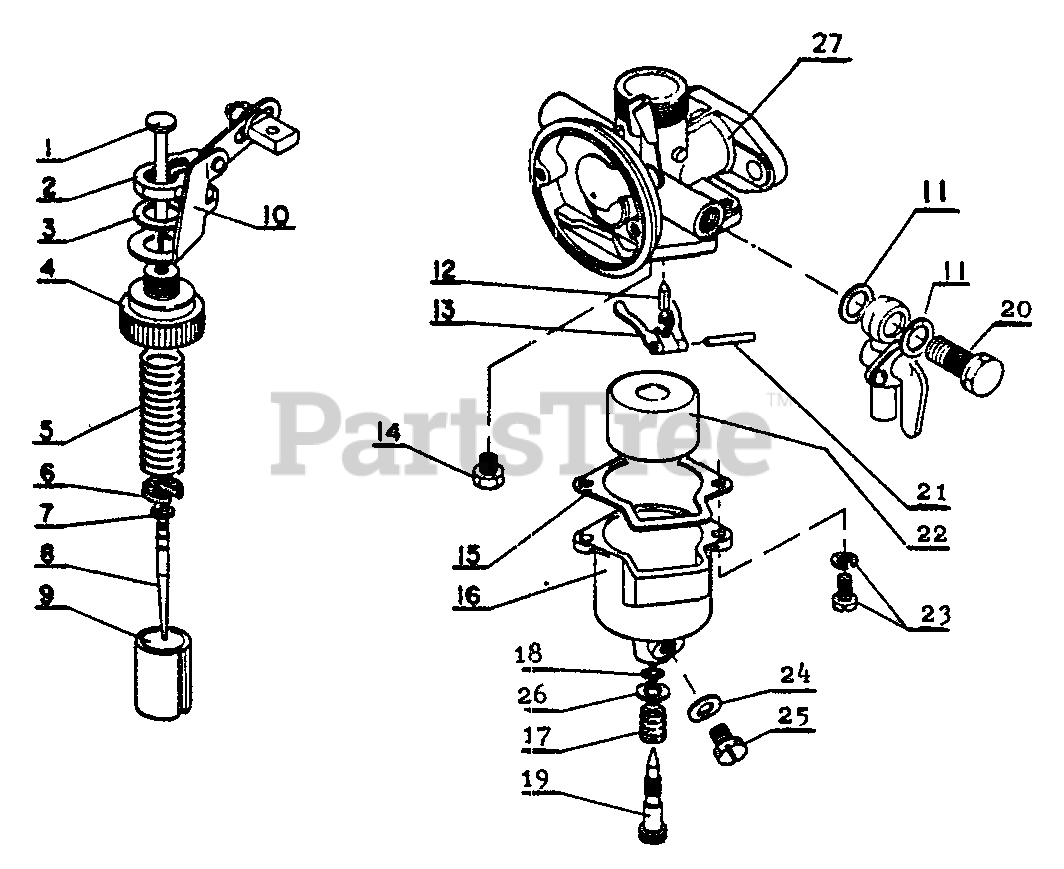

Carburetor Parts Diagram

  • Title

Echo 12000101110

CARBURETOR
(Superseded to 12000001112)

Note: Includes ITEMS 1-27

$

$

Not available

1

Echo 12011000220

BAR, LINK

$14.99

$

Usually ships in 2-4 days

0

2

Echo 12011100120

NUT
(Superseded to Discontinued)

$

$

Not available

3

Echo 12011200120

WASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo 12011301110

COVER - TOP

$14.99

$

Usually ships in 2-4 days

0

5

Echo 12011400220

SPRING, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

6

Echo 12011500220

SEAT, SPRING

$2.49

$

Usually ships in 2-4 days

0

7

Echo 12011600220

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

8

Echo 12011701111

NEEDLE, JET
(Superseded to 12010301111)

$

$

Not available

9

Echo 12011801111

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 12010001110

LEVEL ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 12013000120

GASKET

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12010201110

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12012101110

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

14

Echo 12012201111

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

15

Echo 12012301110

GASKET, FLOAT CHAMBER
(Superseded to Discontinued)

$

$

Not available

16

Echo 12012401111

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

17

Echo 12012701110

SPRING, METERING LEVER

$2.49

$

Usually ships in 2-4 days

0

18

Echo 12012501110

O-RING
(Superseded to Discontinued)

$

$

Not available

19

Echo 12012801110

NEEDLE, METERING
(Superseded to Discontinued)

$

$

Not available

20

Echo 12013100120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

21

Echo 12013200120

PIN, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

22

Echo 12016601110

FLOAT
(Superseded to 12013301110)

$

$

Not available

23

Echo 90024104014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

24

Echo 12013600120

GASKET, DRAIN

$0.99

$

In Stock, only 1 left!

0

25

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 12

0

26

Echo 12012601110

WASHER
(Superseded to Discontinued)

$

$

Not available

27

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
