PB-9 - Echo Backpack Blower Control Lever Parts Diagram

Echo PB-9 Backpack Blower - compact, air-cooled 2-cycle single-cylinder 40 cc engine delivering robust airflow for construction, demolition, and landscaping. Dimensions: 34.5 x 43.5 x 45.5 cm (13.5 x 17.1 x 17.9 in). Weight: 9.6 kg (21.2 lb). Ideal for high-volume dust removal with ergonomic, lightweight design.

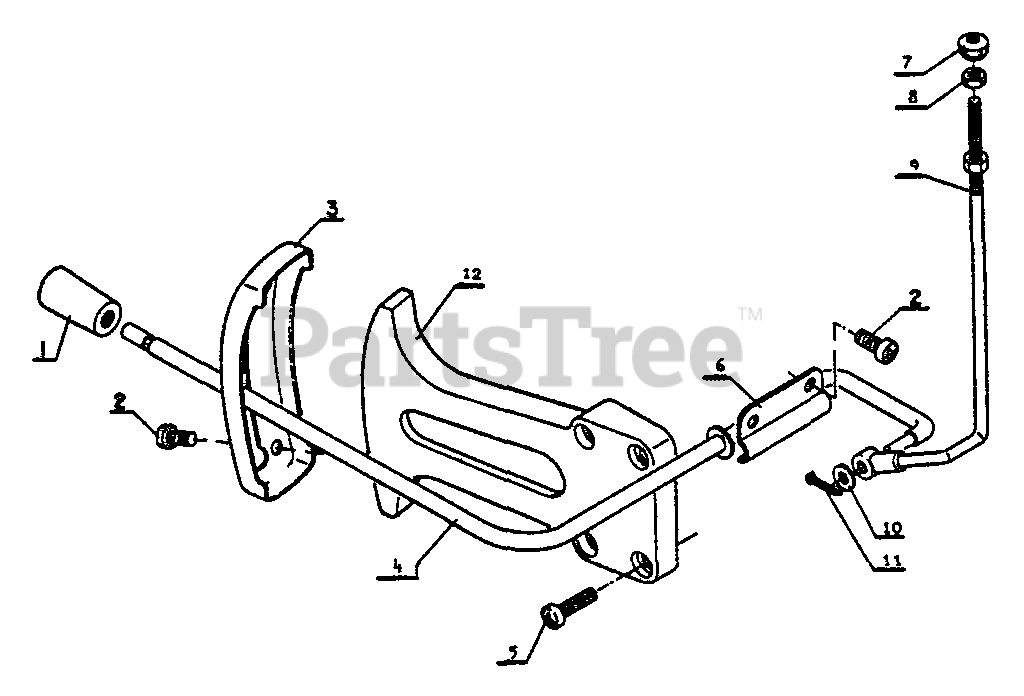

Control Lever Parts Diagram

  • Title

1

Echo 17802301110

KNOB

$2.99

$

Usually ships in 2-4 days

0

2

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

3

Echo 17811900360

DIAL
(Superseded to Discontinued)

$

$

Not available

4

Echo 17800501110

LEVER, THROTTLE
(Superseded to 17800501610)

$

$

Not available

5

Echo 90022005018

SCREW 5×18

$0.99

$

Usually ships in 2-4 days

0

6

Echo 17811401110

RETAINER

$

$

Not available

7

Echo 17802101110

NUT

$

$

Not available

8

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801101110

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

11

Echo 90030016010

PIN, COTTER

$

$

Not available

12

Echo 70111201110

BRACKET, DIAL
(Superseded to 70111201810)

$18.99

$

Usually ships in 2-4 days

0
