PB-9 - Echo Backpack Blower Crankcase Parts Diagram

Echo PB-9 Backpack Blower - compact, air-cooled 2-cycle single-cylinder 40 cc engine delivering robust airflow for construction, demolition, and landscaping. Dimensions: 34.5 x 43.5 x 45.5 cm (13.5 x 17.1 x 17.9 in). Weight: 9.6 kg (21.2 lb). Ideal for high-volume dust removal with ergonomic, lightweight design.

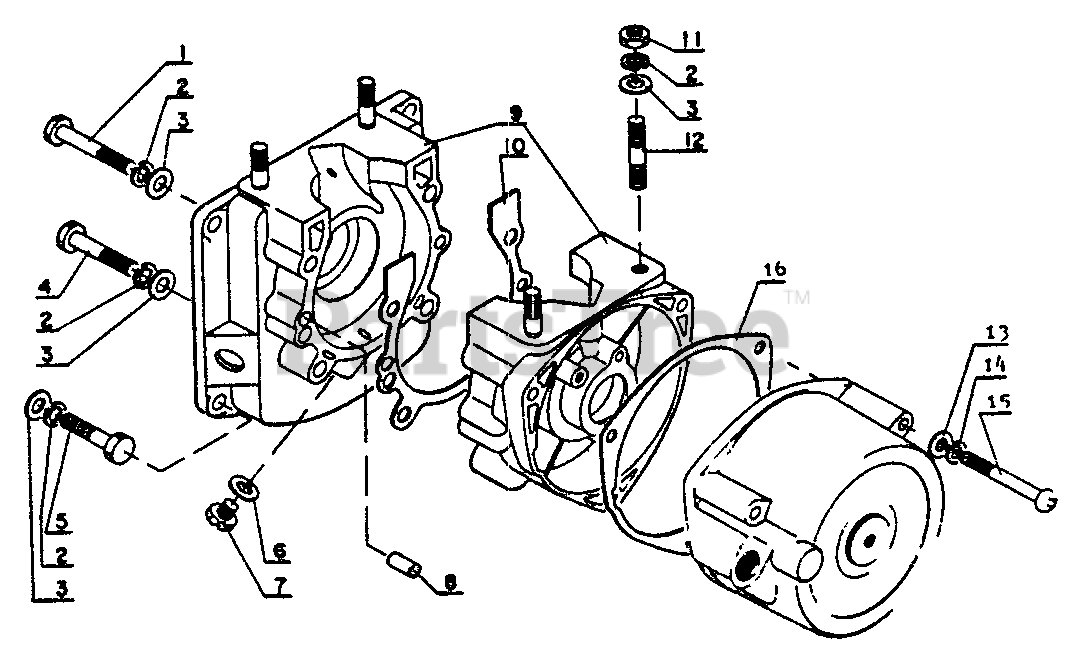

Crankcase Parts Diagram

  • Title

1

Echo 10024401110

BOLT
(Superseded to 10024401111)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

3

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 10024501110

BOLT
(Superseded to Discontinued)

$

$

Not available

5

Echo 90010006025

BOLT 6×25

$0.99

$

In Stock, Qty 7

0

6

Echo 13131000230

PACKING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 10051000310

BOLT, DRAIN
(Superseded to Discontinued)

$

$

Not available

8

Echo 10021502830

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10020001110

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

10

GASKET, CRANKCASE

Note: Use Gasket Kit, P/N 8890000110

$

$

Not available

11

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

12

Echo 10025400130

STUD

$1.99

$

Usually ships in 2-4 days

0

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

15

Echo 90022005042

SCREW 5×42

$0.99

$

Usually ships in 2-4 days

0

16

Echo 10061501110

GASKET, STARTER

$1.99

$

In Stock, only 1 left!

0

Echo 88900001110

GASKET KIT
(Superseded to 88900001111)

$7.99

$

Usually ships in 2-4 days

0
