PB-9 - Echo Backpack Blower Cylinder, Muffler Parts Diagram

Echo PB-9 Backpack Blower - compact, air-cooled 2-cycle single-cylinder 40 cc engine delivering robust airflow for construction, demolition, and landscaping. Dimensions: 34.5 x 43.5 x 45.5 cm (13.5 x 17.1 x 17.9 in). Weight: 9.6 kg (21.2 lb). Ideal for high-volume dust removal with ergonomic, lightweight design.

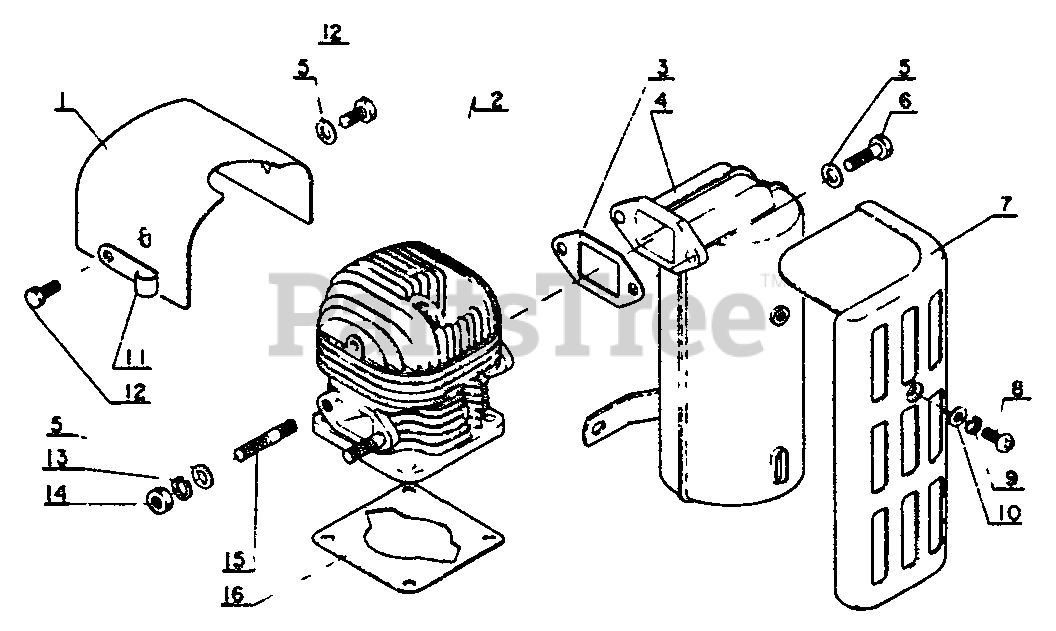

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 10151401110

COVER, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

2

Echo 10100001110

CYLINDER
(Superseded to 10100000760)

$210.99

$

Usually ships in 2-4 days

0

3

Echo 14551001110

GASKET, EXHAUST
(Superseded to 14551001111)

$

$

Not available

4

Echo 14561001110

MUFFLER
(Superseded to Discontinued)

$

$

Not available

5

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 90010006020

BOLT 6×20

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14562101110

COVER, MUFFLER

$27.99

$

Usually ships in 2-4 days

0

8

Echo 90022005012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

9

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 7

0

10

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 15911001110

CLIP, CORD

$1.99

$

Usually ships in 2-4 days

0

12

Echo 90010006010

BOLT 6×10

$0.99

$

In Stock, only 1 left!

0

13

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 9

0

14

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

15

Echo 10101301110

BOLT, STUD
(Superseded to Discontinued)

$

$

Not available

16

Echo 10101001110

GASKET, CYLINDER
(Superseded to 10101001111)

Note: Use Gasket Kit, P/N 88900001110

$

$

Not available

Echo 88900001110

GASKET KIT
(Superseded to 88900001111)

$7.99

$

Usually ships in 2-4 days

0
