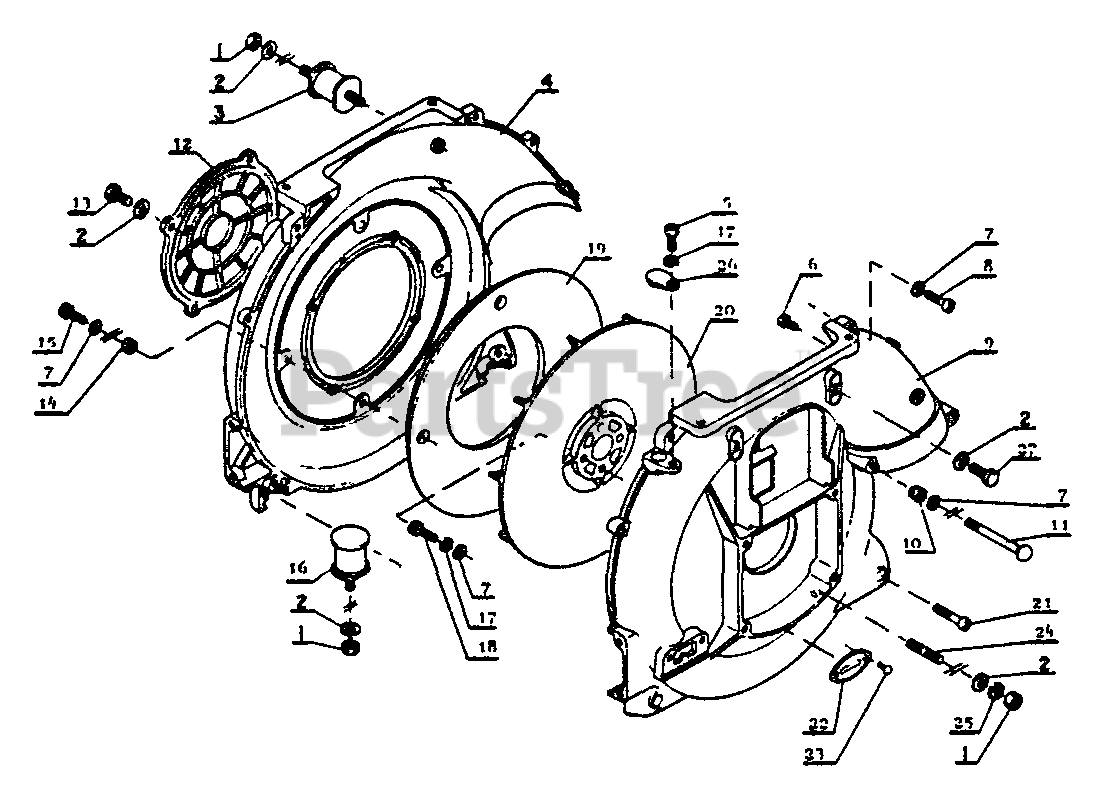

PB-9 - Echo Backpack Blower Fancase and Fan Parts Diagram

Backpack Blower

Fancase and Fan Parts Diagram

  • Title

1

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 20091001110

CUSHION

$14.99

$

In Stock, only 2 left!

0

4

Echo 20011001810

COVER, FAN - INNER
(Superseded to 20011001811)

$

$

Not available

5

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

6

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90022005020

SCREW 5×20

$0.99

$

In Stock, only 1 left!

0

9

Echo 20011101810

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

10

Echo 21041901110

NUT - 5
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 9

0

11

Echo 21041601110

BOLT

$23.99

$

Usually ships in 2-4 days

0

12

Echo 20012401110

SHIELD, DEBRIS
(Superseded to 200124-01111)

$17.99

$

Usually ships in 2-4 days

0

13

Echo 90010006010

BOLT 6×10

$0.99

$

In Stock, only 1 left!

0

14

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

15

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

16

Echo 20091601110

CUSHION

$13.99

$

In Stock, only 2 left!

0

17

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

18

Echo 90010005016

BOLT - 5×16

$0.99

$

In Stock, only 1 left!

0

19

Echo 20012501110

SEPARATER
(Superseded to Discontinued)

$

$

Not available

20

Echo 20001001110

FAN

$115.99

$

Usually ships in 2-4 days

0

21

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0

22

Echo 89011000360

MODEL PLATE
(Superseded to Discontinued)

$

$

Not available

23

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

24

Echo 20011801110

STUD
(Superseded to Discontinued)

$

$

Not available

25

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

26

Echo 20013600360

PLUG
(Superseded to 20013600760)

$

$

Not available

27

Echo 90010006014

BOLT - 6×14
(Superseded to Discontinued)

$

$

Not available
