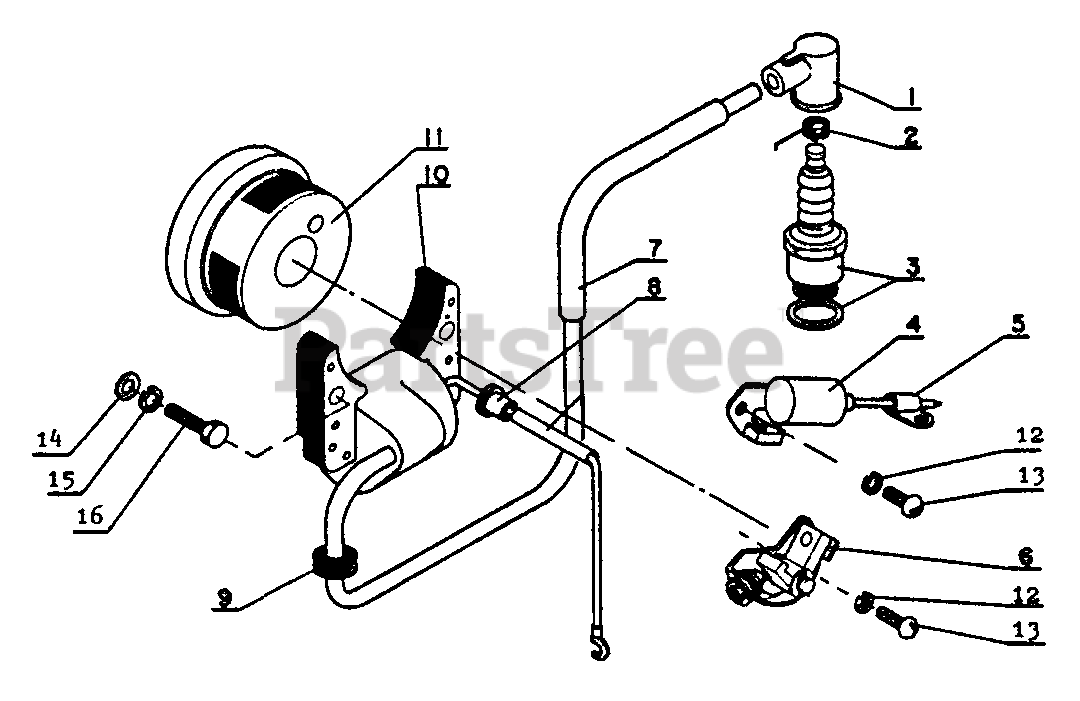

PB-9 - Echo Backpack Blower Magneto Parts Diagram

Backpack Blower

Magneto Parts Diagram

  • Title

1

Echo 15901201110

CAP, SPARK PLUG
(Superseded to 15901203433)

$6.99

$

In Stock, Qty 20+

0

2

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901000130

SPARK PLUG

$

$

Currently unavailable

4

Echo 15012700910

CONDENSER

$18.99

$

Usually ships in 2-4 days

0

5

Echo 15911201110

CLAMP

$0.99

$

Usually ships in 2-4 days

0

6

Echo 15010100910

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

7

Echo 15011101110

TUBE

$0.99

$

In Stock, only 1 left!

0

8

Echo 15011400310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

9

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

10

Echo 15012601110

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 15020001110

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

12

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

13

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

16

Echo 90010005025

BOLT - 5X25

$2.99

$

Usually ships in 2-4 days

0
