PB-9 - Echo Backpack Blower Starter Parts Diagram

Echo PB-9 Backpack Blower - compact, air-cooled 2-cycle single-cylinder 40 cc engine delivering robust airflow for construction, demolition, and landscaping. Dimensions: 34.5 x 43.5 x 45.5 cm (13.5 x 17.1 x 17.9 in). Weight: 9.6 kg (21.2 lb). Ideal for high-volume dust removal with ergonomic, lightweight design.

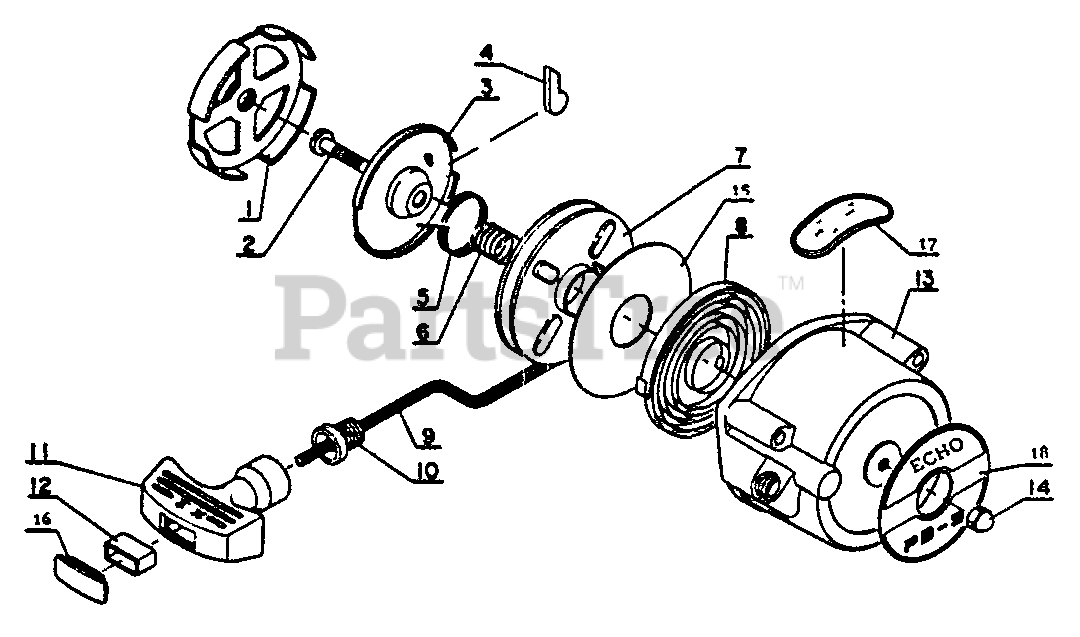

Starter Parts Diagram

  • Title

1

Echo 17721000910

PAWL CATCHER

$8.99

$

Usually ships in 2-4 days

0

Echo 17720001110

STARTER ASSY, RECOIL
(Superseded to Discontinued)

Note: Consisting of 2 thru 16

$

$

Not available

2

Echo 17723601110

SCREW

$4.99

$

Usually ships in 2-4 days

0

3

Echo 17721100910

PLATE, FRICTION

$7.99

$

In Stock, only 1 left!

0

4

Echo 17721800910

RATCHET
(Superseded to Discontinued)

$

$

Not available

5

Echo 17723400910

SPRING
(Superseded to Discontinued)

$

$

Not available

6

Echo 17723300910

SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo 17721501110

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

8

Echo 17722001110

SPRING, RECOIL
(Superseded to Discontinued)

$

$

Not available

9

Echo 17722601110

ROPE, STARTER 4.0×880

Note: RePower BULK OPTION: 99944450000

$6.99

$

Usually ships in 2-4 days

0

10

Echo 17722701220

GUIDE, ROPE
(Superseded to 17722705530)

$4.99

$

In Stock, Qty 10

0

11

Echo 17722801110

GRIP, STARTER

$8.99

$

In Stock, only 3 left!

0

12

Echo 17722900220

RING, RETAINING

$2.49

$

Usually ships in 2-4 days

0

13

Echo 17723201110

CASE, STARTER

$56.99

$

Usually ships in 2-4 days

0

14

Echo 17723701110

NUT - 5 -- CAP
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 9

0

15

Echo 17723500910

PLATE, STARTER

$5.99

$

Usually ships in 2-4 days

0

16

Echo 17724401110

COVER, HANDLE

$3.49

$

Usually ships in 2-4 days

0

17

Echo 89012200310

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

18

Echo 89003400360

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available
