PB 95 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

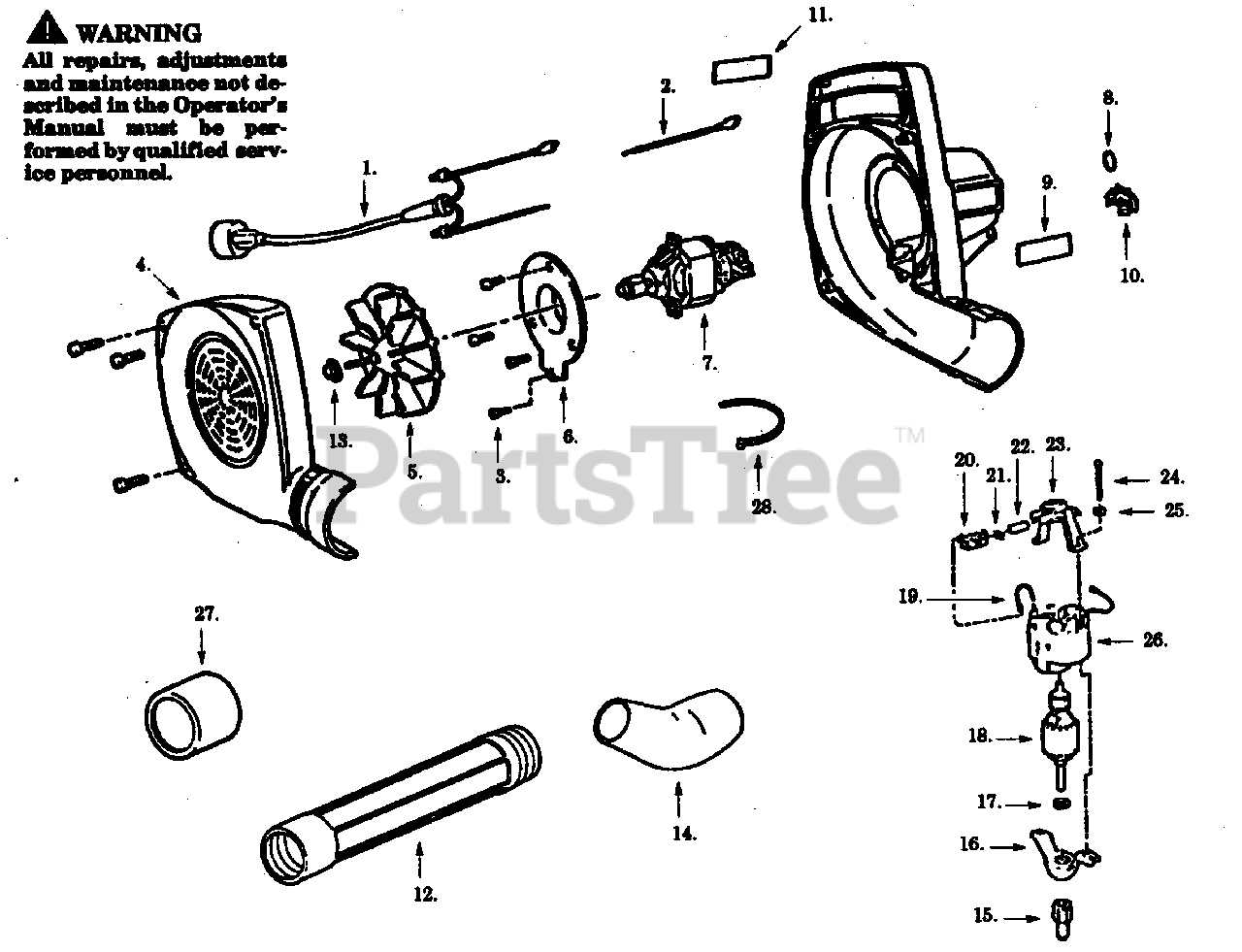

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534441000

Harness Ass'y.

$

$

Not available

2

Poulan 534871701

Leadwire Ass'y.

$1.49

$

Usually ships in 3-10 days

0

3

Poulan 534790300

Screw

$

$

Not available

4

Poulan 534799202

Housing Set

$

$

Not available

5

Poulan 534798205

Impeller

$

$

Not available

6

Poulan 534801105

Mounting Plate

$

$

Not available

7

Poulan 534800400

Motor/Adapter Ass'y.

$

$

Not available

8

Poulan 534458100

U.L. Label (Not a serviceable part)

$

$

Not available

9

Poulan 534102240

Motor Hsg. Label

$

$

Not available

10

Poulan 534332506

Switch Ass'y.

$

$

Not available

11

Poulan 534036155

Warning Label

$

$

Not available

12

Poulan 534352705

Outlet Tube

$

$

Not available

13

Poulan 534121000

Push Nut

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 534373405

Curved Nozzle

$

$

Not available

15

Poulan 534798400

Impeller Adapter

$

$

Not available

16

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

17

Poulan 534520022

Thrust Washer

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534771501

Armature Ass'y.

$

$

Not available

19

Poulan 534440800

Wire/Terminal Ass'y.

$

$

Not available

20

Poulan 534260007

Brush Holder

$

$

Not available

21

Poulan 534570009

Brush Spring

$

$

Not available

22

Poulan 534200018

Brush

$

$

Not available

23

Poulan 534872601

Endbell Ass'y. (Brush)

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 534500262

Screw

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534520020

Lockwasher

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 534440100

Field Ass'y.

$

$

Not available

27

Poulan 534408405

Sleeve

$

$

Not available

28

Poulan 534134704

Tie Strap

$

$

Not available

29

Poulan 534887270

Operator Manual

Note: Not Shown.

$

$

Not available

30

Poulan 534102250

Carton

Note: Not Shown.

$

$

Not available
