PB GT 22H54 (960420006-01) - Poulan Pro Garden Tractor (2006) Engine Parts Diagram

Lawn Tractor

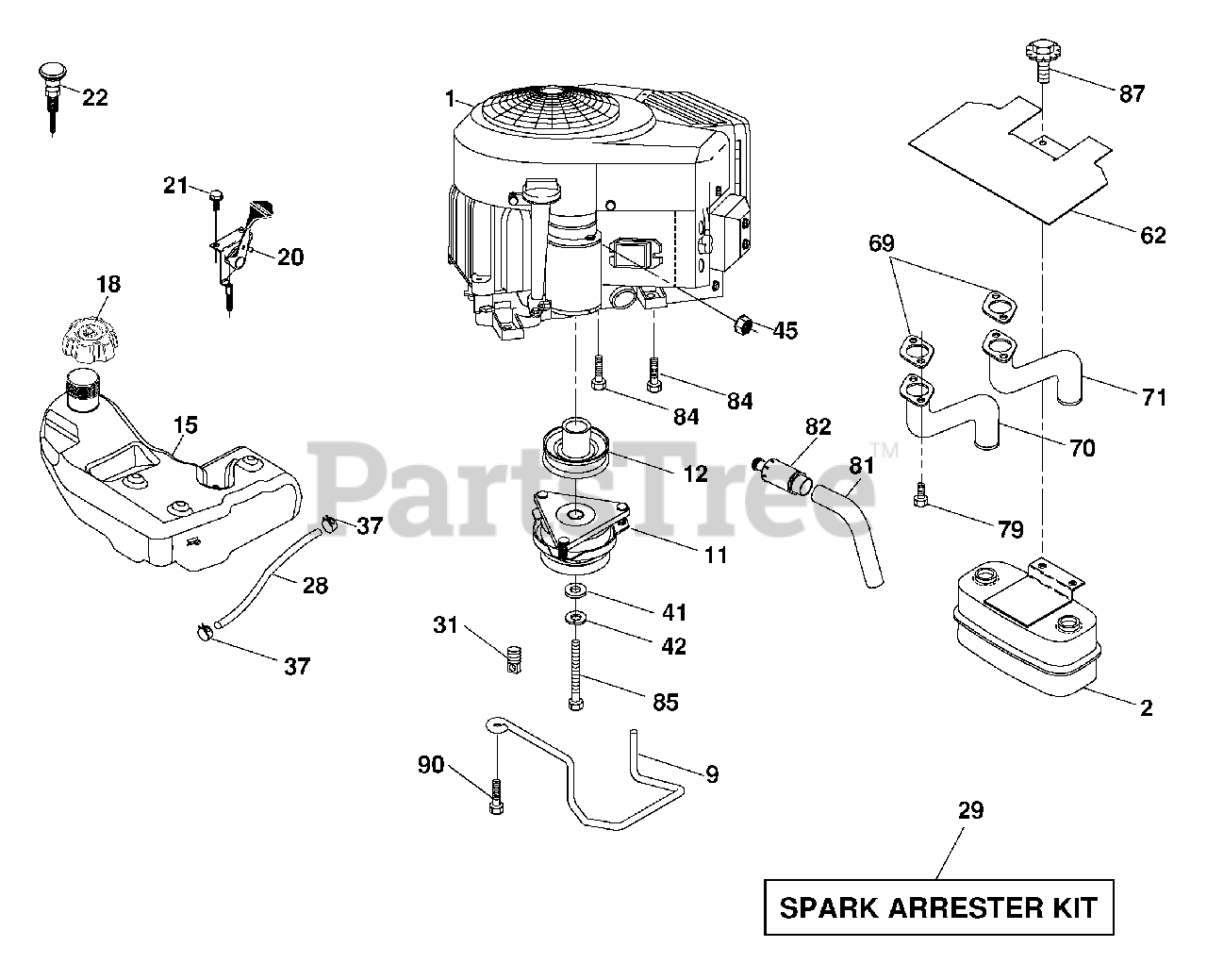

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 441777

$

$

Not available

2

Electrolux/AYP 149723

Muffler
(Superseded to 532149723)

$51.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 194320

Keeper Asm. Belt Engine
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 179335

Clutch Electric
(Superseded to 532179335)

$250.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 194343

Pulley Engine
(Superseded to 532194343)

$74.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 193499

Tank Fuel 4.0
(Superseded to 532193499)

$145.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 195951

Cap Asm
(Superseded to 584248701)

$20.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 175437X428

Control Throttle
(Superseded to 532175437)

$31.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

22

Electrolux/AYP 187767X428

Control Choke
(Superseded to 532191596)

$39.99

$

In Stock, Qty 7

0

28

Electrolux/AYP 401135

Fuel Line
(Superseded to 532401135)

$27.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Spark Arrester Kit
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 145006

Clip Push-In Hinged
(Superseded to 532145006)

$3.49

$

In Stock, only 2 left!

0

37

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$3.49

$

In Stock, only 4 left!

0

41

Electrolux/AYP 126197X

Washer 1-1/2 OD x 15/32 ID x .250
(Superseded to 532126197)

$7.99

$

In Stock, Qty 6

0

42

Electrolux/AYP STD551143

Washer Lock 7/16

$

$

Not available

45

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

62

Electrolux/AYP 146629

Shield Heat Muffler
(Superseded to 532434017)

$

$

Not available

69

Electrolux/AYP 165391

Gasket
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 159955

Tube Exhaust LH
(Superseded to 581881101)

$34.99

$

In Stock, Qty 5

0

71

Electrolux/AYP 160589

Tube Exhaust RH
(Superseded to 581881001)

$28.99

$

In Stock, only 4 left!

0

79

Electrolux/AYP 183906

Screw Socket Head
(Superseded to 532183906)

$

$

Not available

81

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, only 2 left!

0

82

Electrolux/AYP 181654

Plug Drain Oil
(Superseded to 532428287)

$20.99

$

In Stock, Qty 8

0

84

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/2
(Superseded to 817060620)

$6.99

$

In Stock, Qty 11

0

85

Electrolux/AYP 179953

Bolt Hex 7/16-20 x 3.75 Gr. 5
(Superseded to 532179953)

$7.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 198239

Bolt 5/16-18 unc x 1 w/Sems
(Superseded to 532198239)

$3.49

$

In Stock, only 4 left!

0

90

Electrolux/AYP 17000616

Screw 3/8-16 x 1
(Superseded to 817000616)

$6.99

$

In Stock, Qty 11

0
