PB GT 26H54 (960420128-00) - Poulan Pro Garden Tractor (2011-01) ENGINE Parts Diagram

Garden Tractor

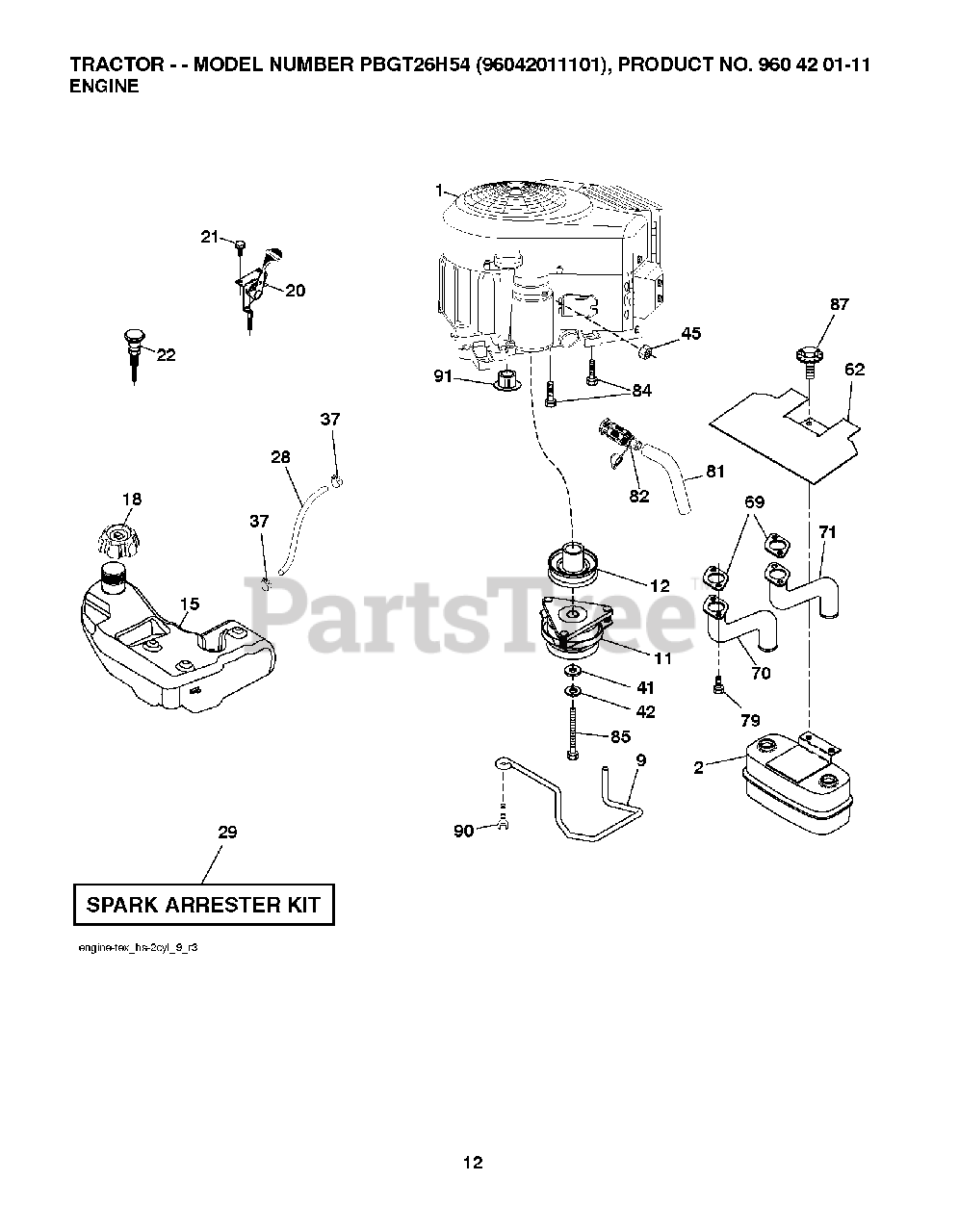

ENGINE Parts Diagram

  • Title

1

Poulan TBD

Note: ENGINE B S MODEL NO 445877-0760-B1

$

$

Not available

2

Poulan 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

9

Poulan 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

11

Poulan 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$263.99

$

In Stock, Qty 20+

0

12

Poulan 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 2 left!

0

15

Poulan 532438081

TANK.ASM.4.GAL.EPA.ONE.PORT
(Superseded to 598731101)

$

$

Not available

18

Poulan 532430214

CAP ASM.FL.RTCHT.3"GRY.E10

$

$

Not available

20

Poulan 532178385

(Superseded to 532175437)

$33.99

$

Usually ships in 3-10 days

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

22

Poulan 532191596

CONTROL CHOKE

$41.99

$

In Stock, only 3 left!

0

28

Poulan 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$203.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

41

Poulan 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Poulan 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Poulan 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

Note: LH

$35.99

$

In Stock, only 3 left!

0

71

Poulan 532160589

RP.EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

Note: RH

$29.99

$

In Stock, only 3 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

In Stock, Qty 9

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Poulan 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, Qty 11

0

87

Poulan 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 3 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Poulan 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0
