PB LGT 2654 (960420172-00) - Poulan Pro Garden Tractor (2014-10) ENGINE Parts Diagram

Garden Tractor

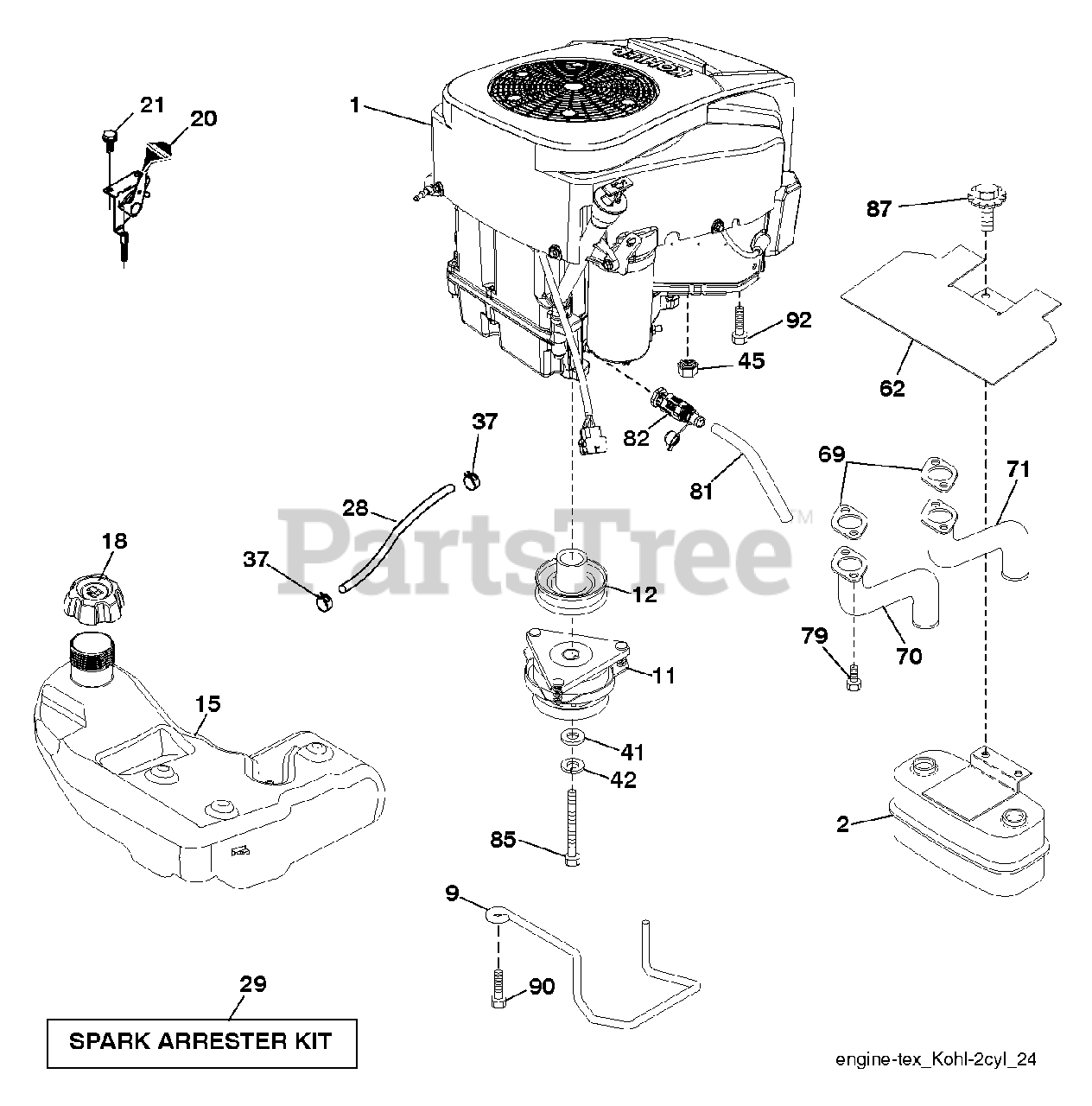

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE KOHLER MODEL NO KT745-3047 (587788701)

$

$

Not available

2

Poulan 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$71.99

$

In Stock, Qty 18

0

9

Poulan 584908001

KEEPER BELT ENGINE
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

11

Poulan 587241401

Clutch, Ogura 5.0Pd Gt1.5A-Eh01

$275.99

$

In Stock, only 2 left!

0

12

Poulan 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 2 left!

0

15

Poulan 532438081

TANK.ASM.4.GAL.EPA.ONE.PORT
(Superseded to 598731101)

$

$

Not available

18

Poulan 585124802

Fuel Cap Assembly, 3" Black

$17.99

$

In Stock, only 1 left!

0

20

Poulan 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$33.99

$

In Stock, Qty 6

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 14

0

28

Poulan 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$203.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 13

0

41

Poulan 532126197

WASHER

$8.49

$

In Stock, Qty 17

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Poulan 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Poulan 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 583954501

Exhaust Pipe, LH CV18/20

Note: LH

$26.99

$

In Stock, Qty 6

0

71

Poulan 583954801

Exhaust Pipe, RH CV18/20
(Superseded to 532146700)

Note: RH

$22.99

$

In Stock, only 3 left!

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

85

Poulan 581636201

Hex Bolt, 7/16-20 X 3.0 Gr5

$3.49

$

Usually ships in 3-10 days

0

87

Poulan 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 3 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

92

Poulan 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0
