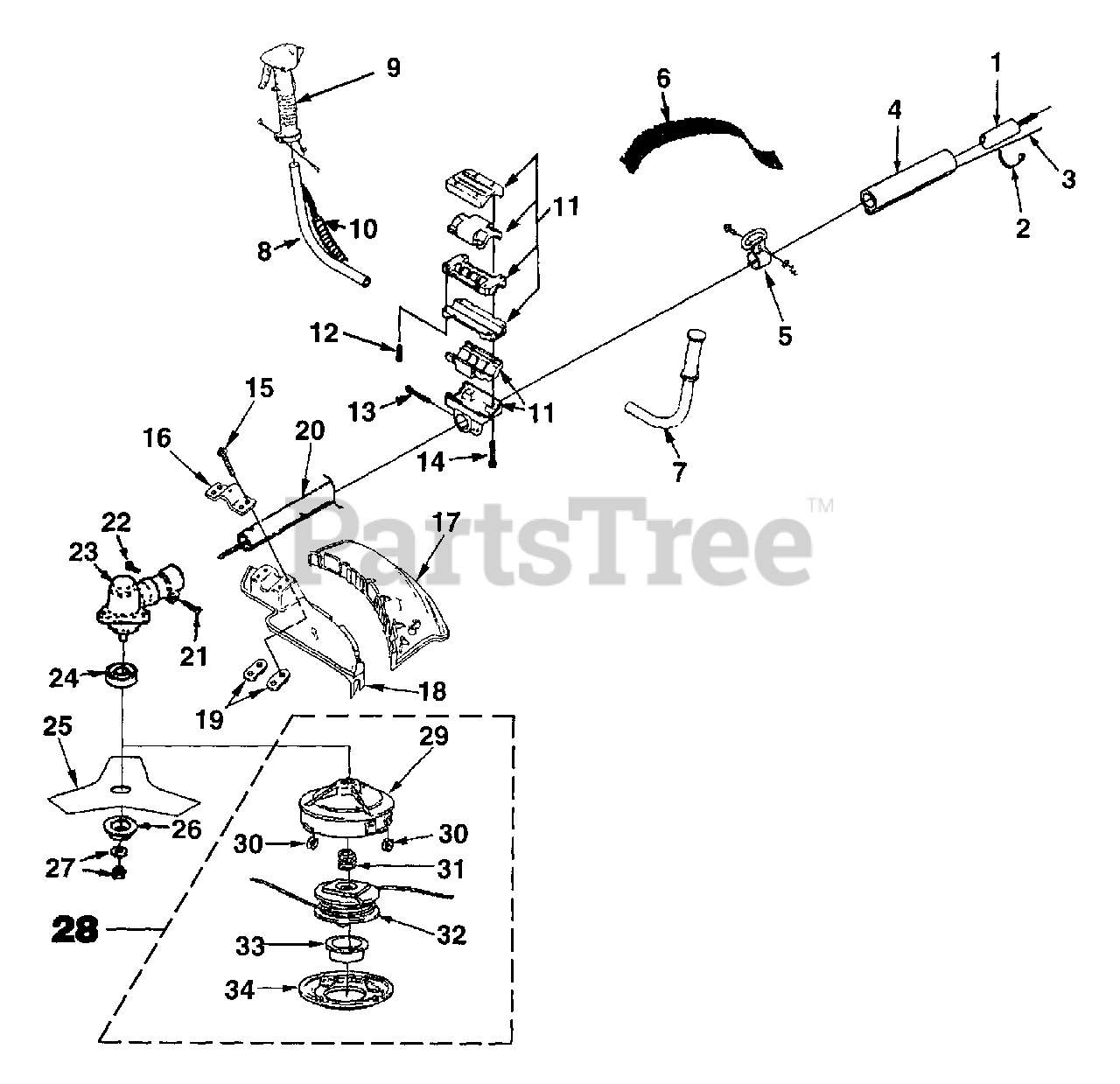

PBC 3600-B (UT-15091-F) - Homelite String Trimmer Handle-Throttle-Driveshaft-Gearhead-Stringhead-Deflector-Blade-Harness Parts Diagram

String Trimmer

Handle-Throttle-Driveshaft-Gearhead-Stringhead-Deflector-Blade-Harness Parts Diagram

  • Title

1

Homelite 04641

DRIVE SHAFT

$

$

Not available

2

Homelite 46840

CABLE-Tie

$

$

Not available

3

Homelite 0254203

THROTTLE CABLE

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 03234A

HIP PAD

$

$

Not available

5

Homelite 07255

BRACKET-Hanger

$

$

Not available

6

Homelite 028361

SHOULDER HARNESS (Full)

$

$

Not available

7

Homelite A03268A

HANDLE BAR & GRIP (Left)
(Superseded to UP00392)

$14.99

$

Usually ships in 3-7 days

0

8

Homelite A08852

HANDLE BAR & CONTROL GRIP

$

$

Not available

9

Homelite A08850

BIKE CONTROL GRIP
(Superseded to UP07011)

$

$

Not available

10

Homelite 00684

SLEEVING

$

$

Not available

11

Homelite A07304

BRACKET-Handle Bar
(Superseded to UP04691)

$

$

Not available

12

Homelite 00605

SCREW-Soc Hd

$

$

Not available

13

Homelite 03942

SCREW-Hex Hd

$

$

Not available

14

Homelite 03944

SCREW-Hex Hd

$

$

Not available

15

Homelite 82555

SCREW-Mach Tr Hd (10-24 x .750)
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 08619

CLAMP
(Superseded to 984251001)

$6.49

$

Usually ships in 3-7 days

0

17

Homelite A08152

STRING SHIELD
(Superseded to UP04353)

$

$

Not available

18

Homelite 08573

BLADE GUARD

$

$

Not available

19

Homelite A08139

MOUNTING PLATE

$

$

Not available

20

Homelite A03800A

DRIVE SHAFT HOUSING
(Superseded to UP04489)

$

$

Currently unavailable

21

Homelite 82586

SCREW-Cap Socket Hd (1/4-20 x 7/8")

Note: Torque Specs. 55-65 In/Lbs, 6.2-7.3 Nm

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 88049

SCREW-Sems Hex Hd

Note: Torque Specs. 35-45 In/Lbs, 4.0-5.1 Nm

$

$

Not available

23

Homelite A04151

GEAR HEAD
(Superseded to UP06866A)

$64.99

$

Usually ships in 3-7 days

0

24

Homelite 041681A

WASHER-Flanged
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

25

Homelite 06297

BLADE-Tri-Arc
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 04409

WASHER-Cupped

$2.49

$

In Stock, only 1 left!

0

27

Homelite 04277

NUT-Lock
(Superseded to 678018001)

$

$

Not available

28

Homelite A07247

STRING HEAD

$

$

Currently unavailable

29

Homelite 07248

HOUSING, String

$

$

Not available

30

Homelite 07249

EYELET
(Superseded to 04141)

$

$

Not available

31

Homelite 02351

SPRING

$

$

Not available

32

Homelite 07251

SPOOL W/String

$

$

Not available

33

Homelite 07252

BUTTON
(Superseded to UP06664)

$

$

Not available

34

Homelite 07253

COVER

$

$

Not available
