PBC 3600-B (UT-15091-F) - Homelite String Trimmer Ignition - Rotor - Clutch Parts Diagram

String Trimmer

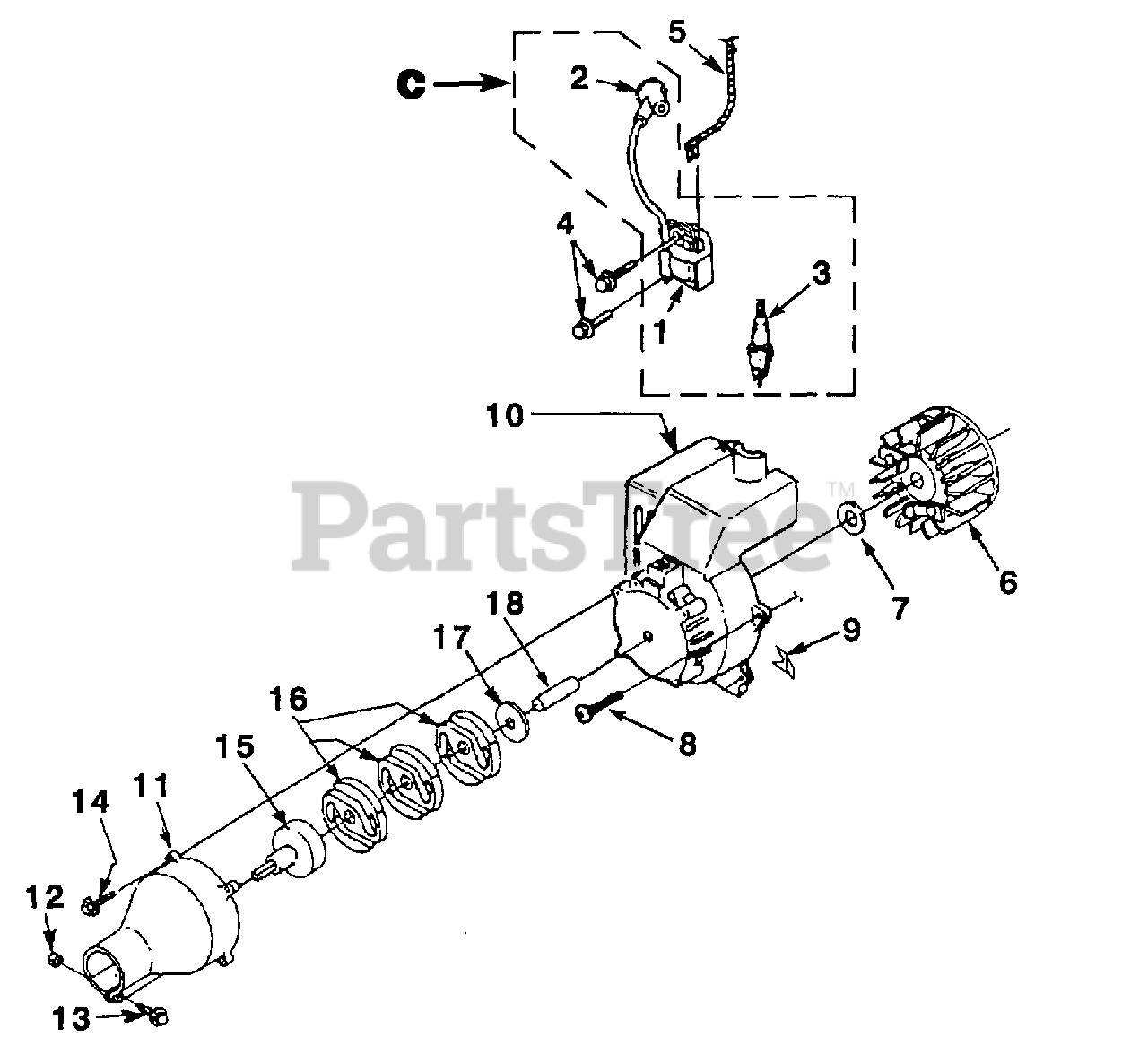

Ignition - Rotor - Clutch Parts Diagram

  • Title

1

Homelite 94711CS

MODULE-Ignition

$

$

Not available

2

Homelite A33055

TERMINAL & COVER

Note: (Also Includes Item #18)

$

$

Not available

3

Homelite 79252

SPARK PLUG (RDJ-7Y)
(Superseded to UP03883)

Note: Torque Specs. 120-180 In/Lbs, 13.6-20.3 Nm.

$3.49

$

In Stock, only 1 left!

0

4

Homelite 82540

SCREW-Thread Form. (8-32 x 1")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm.

$1.49

$

Usually ships in 3-7 days

0

5

Homelite A00681

LEAD-Electrical

$

$

Not available

6

Homelite A04158S

ROTOR & STARTER PAWL
(Superseded to UP03856A)

$

$

Not available

7

Homelite 95479A

WASHER-Flat

$

$

Not available

8

Homelite 82538

SCREW-Thread Form. (10-24 x 3/4")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm.

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 02851

TAB-Male

$

$

Not available

10

Homelite A08295

HOUSING-Engine w/Decals

$

$

Not available

11

Homelite A02396A

TUBE ADAPTOR KIT

$

$

Currently unavailable

12

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

13

Homelite 96624

SCREW-Sems Hex Hd. (10-24 x 1 1/4")

$

$

Not available

14

Homelite 88052

SCREW-Sems Hex Hd. (10-24 x 7/8")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm.

$2.99

$

Usually ships in 3-7 days

0

15

Homelite A04655

DRUM & CONNECTOR

$

$

Currently unavailable

16

Homelite 00242

CLUTCH

$

$

Not available

17

Homelite 03372

WASHER-Clutch

Note: [98929 A?]

$

$

Not available

18

Homelite 035661

SPACER
(Superseded to PS035661)

$2.99

$

Usually ships in 3-7 days

0
