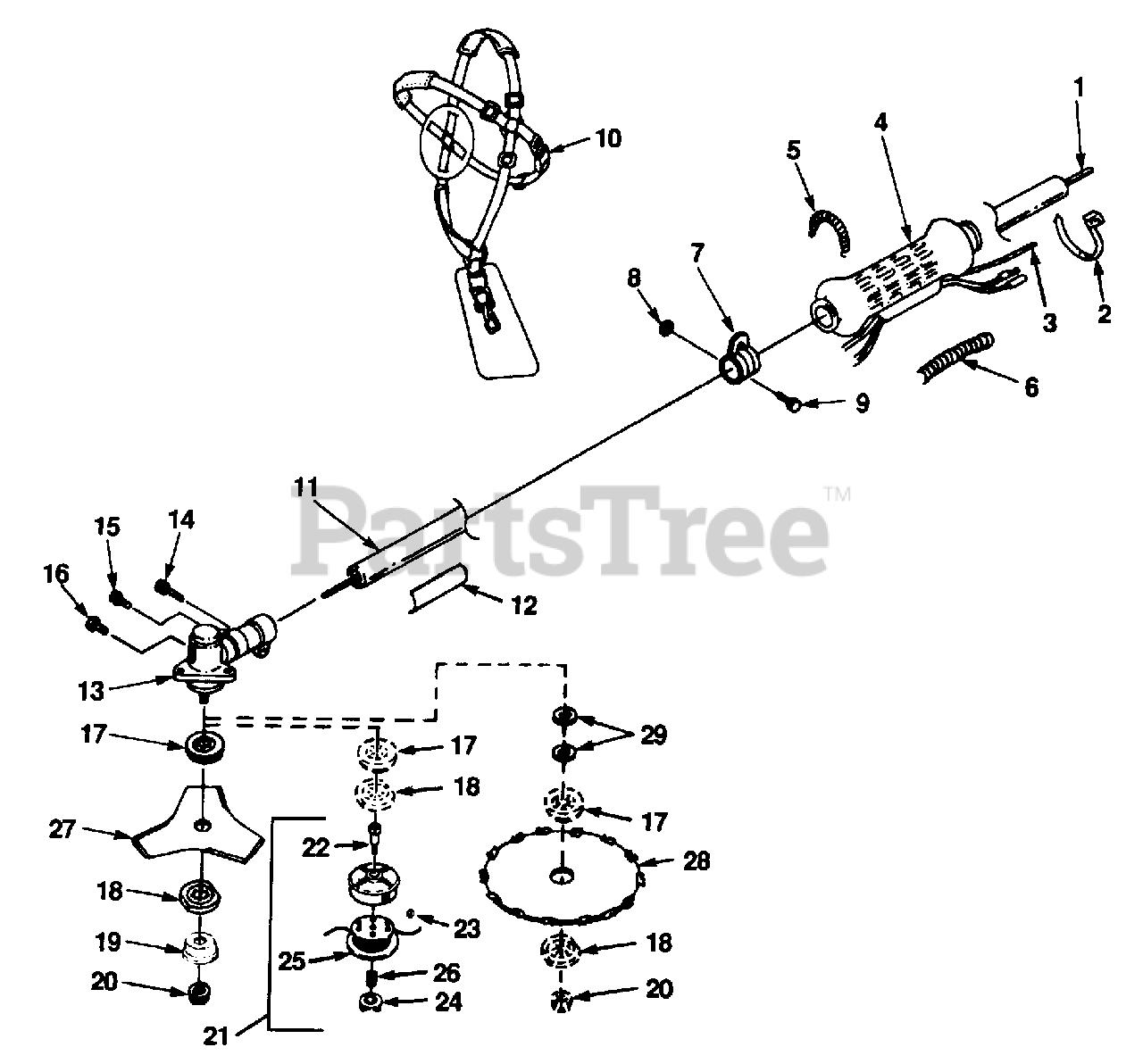

PBC 4000 (UT-15069-A) - Homelite String Trimmer Boom And Head Assm. Parts Diagram

String Trimmer

Boom And Head Assm. Parts Diagram

  • Title

1

Homelite 03017

DRIVESHAFT

$

$

Not available

2

Homelite JA991366

TIE-Cable

$

$

Currently unavailable

3

Homelite 02077

CABLE-Throttle
(Superseded to A06426)

$25.99

$

Usually ships in 3-7 days

0

4

Homelite 03018

GRIP/HIP PAD

$34.99

$

Usually ships in 3-7 days

0

5

Homelite 00737

SPRING-Tension

Note: Not used on 4000.

$

$

Not available

6

Homelite A-03926

SLEEVING

$

$

Currently unavailable

7

Homelite 02093

BAND-Hanger

$29.99

$

Usually ships in 3-7 days

0

8

Homelite 00677

NUT-Hex

$

$

Not available

9

Homelite 04025

BOLT & WASHER

$

$

Not available

10

Homelite 02836

HARNESS-Shoulder
(Superseded to UP08159)

Note: Includes Item 12.

$

$

Not available

11

Homelite A-04052

HOUSING-Driveshaft

$

$

Not available

12

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

13

Homelite A-02115

GEAR HEAD

Note: Includes Items 14, 17, 18, & 20.

$

$

Not available

14

Homelite 04112

SCREW & WASHER

$

$

Not available

15

SCREW & WASHER-Mach (M6)

Note: Not Used on Model 3800.

$

$

Not available

16

SCREW-Grease

Note: Not Used on Model 3800.

$

$

Not available

17

Homelite 04185

WASHER-Blade

$

$

Not available

18

Homelite 04186

WASHER-Blade (Flat)
(Superseded to GM406715)

$

$

Not available

19

NUT-Guard

Note: Not Used on Model 3800.

$

$

Not available

20

Homelite 03997

NUT-Gear Head
(Superseded to UP07221)

$

$

Not available

21

Homelite A-04019

STRINGHEAD-Complete

Note: Includes Items 22-26.

$

$

Not available

22

Homelite 04139

CONNECTOR-Drive

$

$

Not available

23

Homelite 04021

EYELET

$

$

Not available

24

Homelite 04123

KNOB (L.H.)

$

$

Not available

25

Homelite 04125

SPOOL w/line

$

$

Not available

26

Homelite 04121

SPRING

$

$

Not available

27

Homelite 031641

BLADE-Tri-Arc (10")
(Superseded to 06896)

$

$

Not available

28

Homelite A-03928

MACHETE BLADE KIT

Note: Includes Item 29.

$

$

Currently unavailable

29

Homelite 24548

SPACER

$

$

Not available
