PBC 4000 (UT-15069-C) - Homelite String Trimmer Intake Assy Parts Diagram

String Trimmer

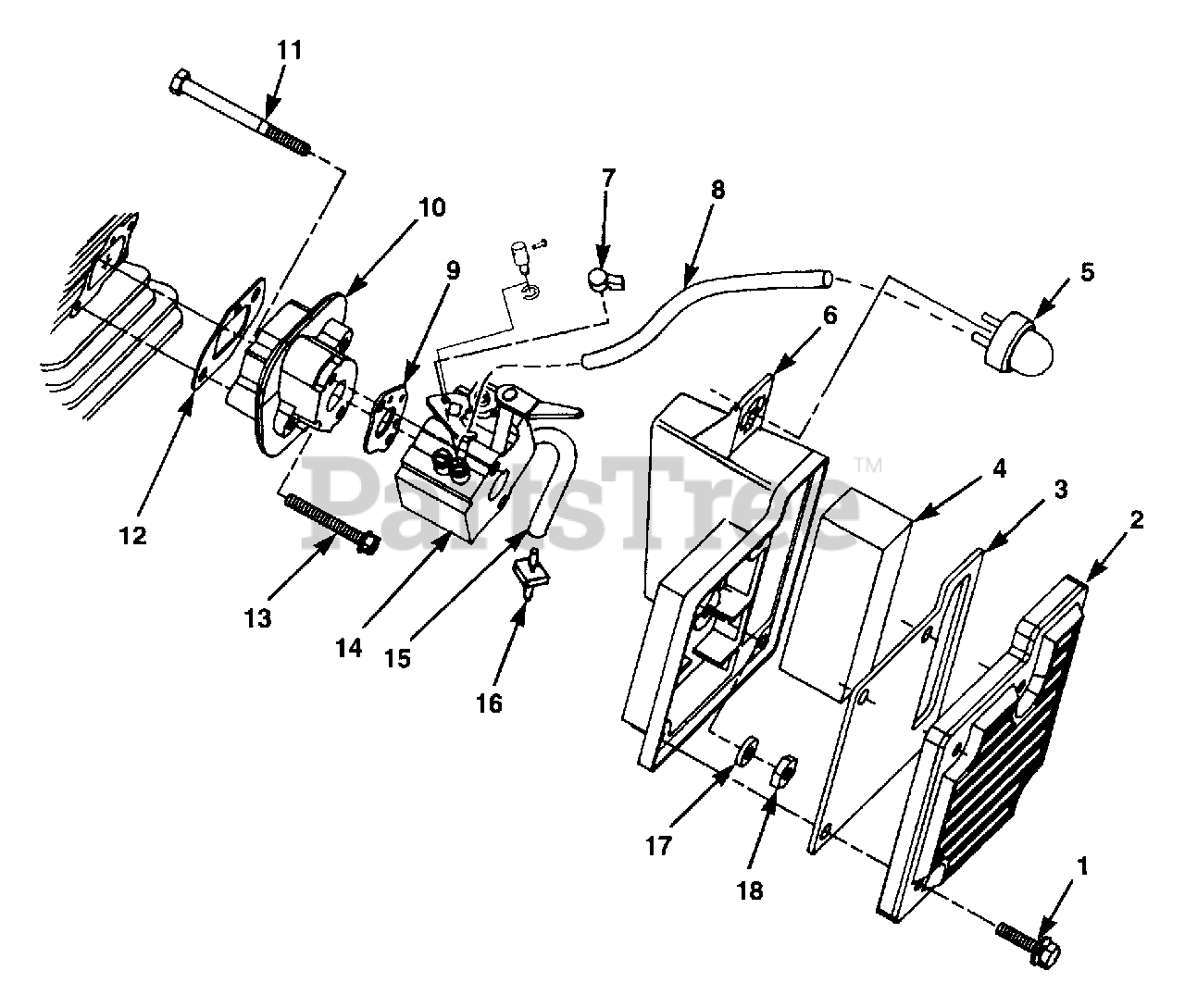

Intake Assy Parts Diagram

  • Title

1

Homelite 88079

SCREW-Sems Hex Hd (1/4-20 X 7/8")

$

$

Not available

2

Homelite 02065

COVER-Air Filter

$

$

Not available

3

Homelite 02940

FILTER-Felt Air

$

$

Not available

4

Homelite 02939

FILTER-Foam Air

$

$

Not available

5

Homelite 01183

BULB-Primer
(Superseded to 300780002)

$

$

Not available

6

Homelite A03313

AIR FILTER BOX

$

$

Currently unavailable

7

Homelite 03492

CAP-Limit

$

$

Not available

8

Homelite 0143920

TUBING-Rubber

$4.49

$

In Stock, only 2 left!

0

9

Homelite 65016

GASKET-Carburetor

$

$

Not available

10

Homelite 02074

SPACER-Carburetor

$

$

Not available

11

Homelite 02075

SCREW-Carburetor Spacer (8-32 X 2")

$

$

Not available

12

Homelite 01029

GASKET-Carburetor Spacer
(Superseded to UP06622)

$

$

Not available

13

Homelite 88045

SCREW-Sems Hex Hd (8-32 X 1 1/4")

$

$

Not available

14

Homelite A03893

CARBURETOR-Zama

$

$

Currently unavailable

15

Homelite 9477220

TUBING-Rubber (5")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

16

Homelite 02067

FITTING-Fuel Inline

$

$

Not available

17

Homelite 841031

WASHER-Flat

$

$

Not available

18

Homelite 81009

NUT-Hex Machine

$

$

Not available
