PBC 4000 (UT-15069-D) - Homelite String Trimmer Clutch & Ignition Parts Diagram

String Trimmer

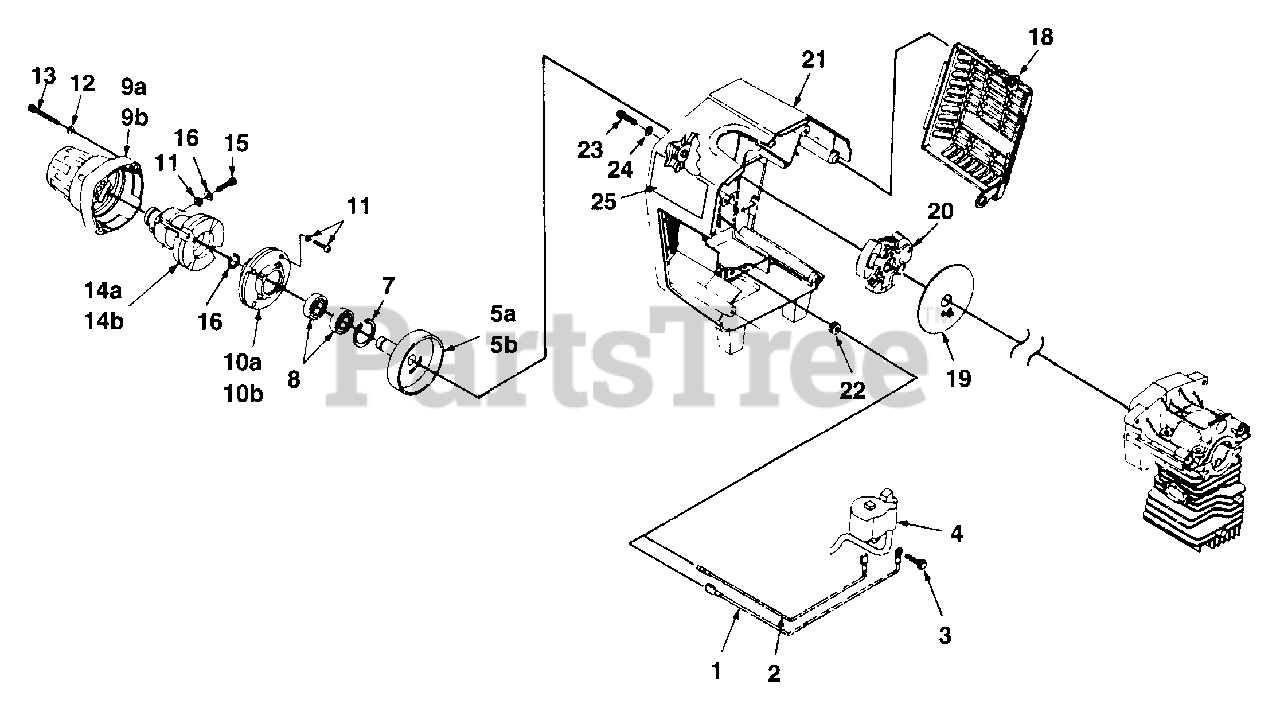

Clutch & Ignition Parts Diagram

  • Title

1

Homelite A02708

WIRE-Ignition

$

$

Not available

2

Homelite A02707

WIRE-Ignition, Ground

$

$

Not available

3

Homelite 88052

SCREW-Sems Hex Hd (10-24 X 7/8")

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 02095S

MODULE-Ignition (Phelon)
(Superseded to UP05587)

$

$

Not available

5A

DRUM-Clutch

Note: Not Used On This Model.

$

$

Not available

5B

Homelite A04046

DRUM-Clutch

$

$

Currently unavailable

?6

RING-Snap

$

$

Not available

7

RING-Snap

Note: Not Used On This Model.

$

$

Not available

8

Homelite 03949

BEARING-Ball

$

$

Not available

9A

CASE-Clutch

Note: Not Used On This Model.

$

$

Not available

9B

Homelite 03954

CASE-Clutch

$90.99

$

Usually ships in 3-7 days

0

10A

COVER-Clutch Bearing

Note: Not Used On This Model.

$

$

Not available

10B

Homelite A03952

COVER-Clutch Bearing

$

$

Currently unavailable

11

SCREW-Mach Hd (M5 X 22)

$

$

Not available

12

Homelite 84008

WASHER-Flat (#12)
(Superseded to 671080001)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 82573

SCREW-Socket Hd (12-24 X 1 1/2")

$

$

Not available

14A

INSERT RING ASSY

Note: Not Used On This Model.

$

$

Not available

14B

Homelite A03953

INSERT RING ASSY

$

$

Currently unavailable

15

SCREW-Socket Hd (M5 X 25)

$

$

Not available

16

WASHER-Lock (M6)

$

$

Not available

?17

WASHER-Flat (M6)

$

$

Not available

18

Homelite 020521

SHIELD-Muffler (Flocked)

$

$

Not available

19

Homelite 03419

PLUG-Crankcase

$4.49

$

Usually ships in 3-7 days

0

20

Homelite A02070

CLUTCH
(Superseded to UP05956)

$

$

Not available

21

Homelite A04045

SHROUD
(Superseded to A04045A)

$

$

Currently unavailable

22

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

23

Homelite 82572

SCREW-Socket Hd (12-24 X 3/4")

$

$

Not available

24

Homelite 84008

WASHER-Flat (#12)
(Superseded to 671080001)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 02657

DECAL-Conformity

Note: (Int'l Only)

$

$

Currently unavailable
