PC 1844 A - Poulan Lawn Tractor (1991) CHASSIS AND ENCLOSURE Parts Diagram

Lawn Tractor

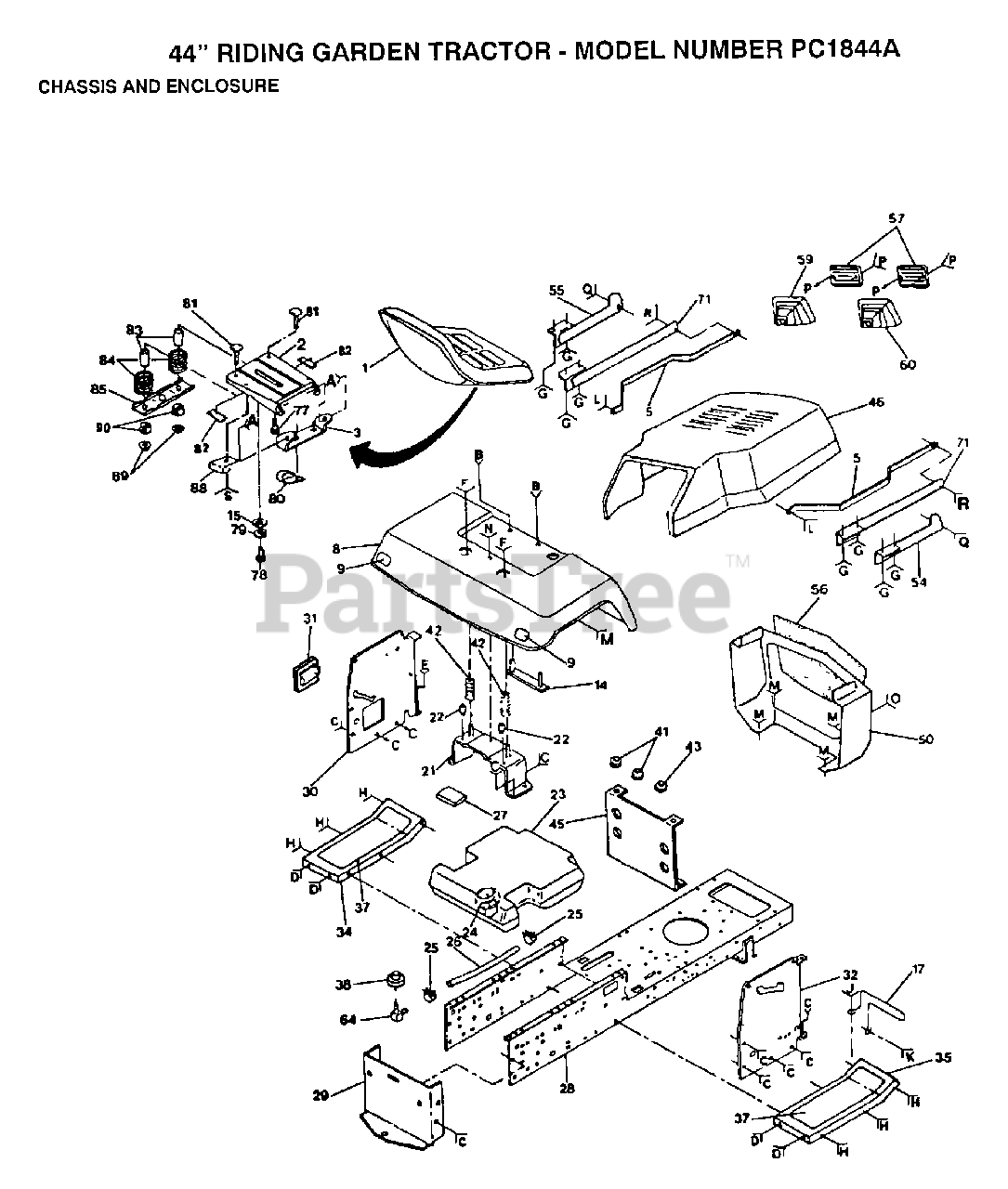

CHASSIS AND ENCLOSURE Parts Diagram

  • Title

1

Electrolux/AYP 129598

SUB= 140121

$

$

Not available

2

Electrolux/AYP 124294X

SUB= 155925

$

$

Not available

3

Electrolux/AYP 126656X

SUB= 140551

$

$

Not available

4

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

5

Electrolux/AYP 109587X

NLA

$

$

Not available

6

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 121642X428

FENDER

$

$

Not available

9

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

11

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

14

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

15

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 108885X

GUARD MUFFLER HYT

$

$

Not available

18

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

20

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

22

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

24

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

25

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, Qty 16

0

26

Electrolux/AYP 5277J

SUB= 8543R

$

$

Not available

27

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

28

Electrolux/AYP 127166X

CHASSIS
(Superseded to 532127166)

$

$

Not available

29

Electrolux/AYP 127866

DRAWBAR LT/YT
(Superseded to 532121306)

$

$

Not available

30

Electrolux/AYP 109665X

SUB= 532132072

$

$

Not available

31

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

32

Electrolux/AYP 106976X

PANEL DASH RH YT

$

$

Not available

33

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

34

Electrolux/AYP 105465X428

FOOTREST LH

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 105464X428

SUB= 145243X428

$

$

Not available

36

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

37

Electrolux/AYP 128866

"PAD,FOOTREST"
(Superseded to 539128866)

$42.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$3.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

41

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

42

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

43

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

44

Electrolux/AYP 19090816

WASHER

$2.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 104920X

NLA

$

$

Not available

46

Electrolux/AYP 3607J366

SUB= 3607J419

$

$

Not available

48

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 5351J428

GRILL

$

$

Not available

54

Electrolux/AYP 677A876

STRAP ASSY T

$

$

Not available

55

Electrolux/AYP 677A875

STRAP ASSY T

$

$

Not available

56

Electrolux/AYP 101235L

SCREEN GRILL GTV

$

$

Not available

57

Electrolux/AYP 109671X

LENS T

$

$

Not available

58

Electrolux/AYP 17990808

SCREW

$2.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 7606J396

BEZEL LH

$24.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 7607J396

BEZEL RH

$22.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

66

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, Qty 7

0

67

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

69

Electrolux/AYP 17511208

SCREW
(Superseded to 582731601)

$2.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 8019J

SUB= 19071018

$

$

Not available

71

Electrolux/AYP 677A432

STRAP ASSY-REAR T
(Superseded to 583773401)

$3.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

73

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

75

Electrolux/AYP 124549X

"BOLT,SHOULDER"

$2.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 74780814

BOLT
(Superseded to 871110814)

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

81

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

83

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, Qty 5

0

84

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

86

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

87

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 4171R

CLIP T

$

$

Not available

89

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

90

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 127043

NLA

$

$

Not available

Electrolux/AYP 121892X

DECAL DASH

$

$

Not available

Electrolux/AYP 129481

DECAL, HOOD

$

$

Not available

Electrolux/AYP 129482

DECAL, HOOD

$

$

Not available

Electrolux/AYP 129489

DECAL, GRILL

$

$

Not available

Electrolux/AYP 129497

DECAL, LOGO, FENDER

$

$

Not available

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 120822X

DECAL
(Superseded to 532120822)

$

$

Not available

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available
