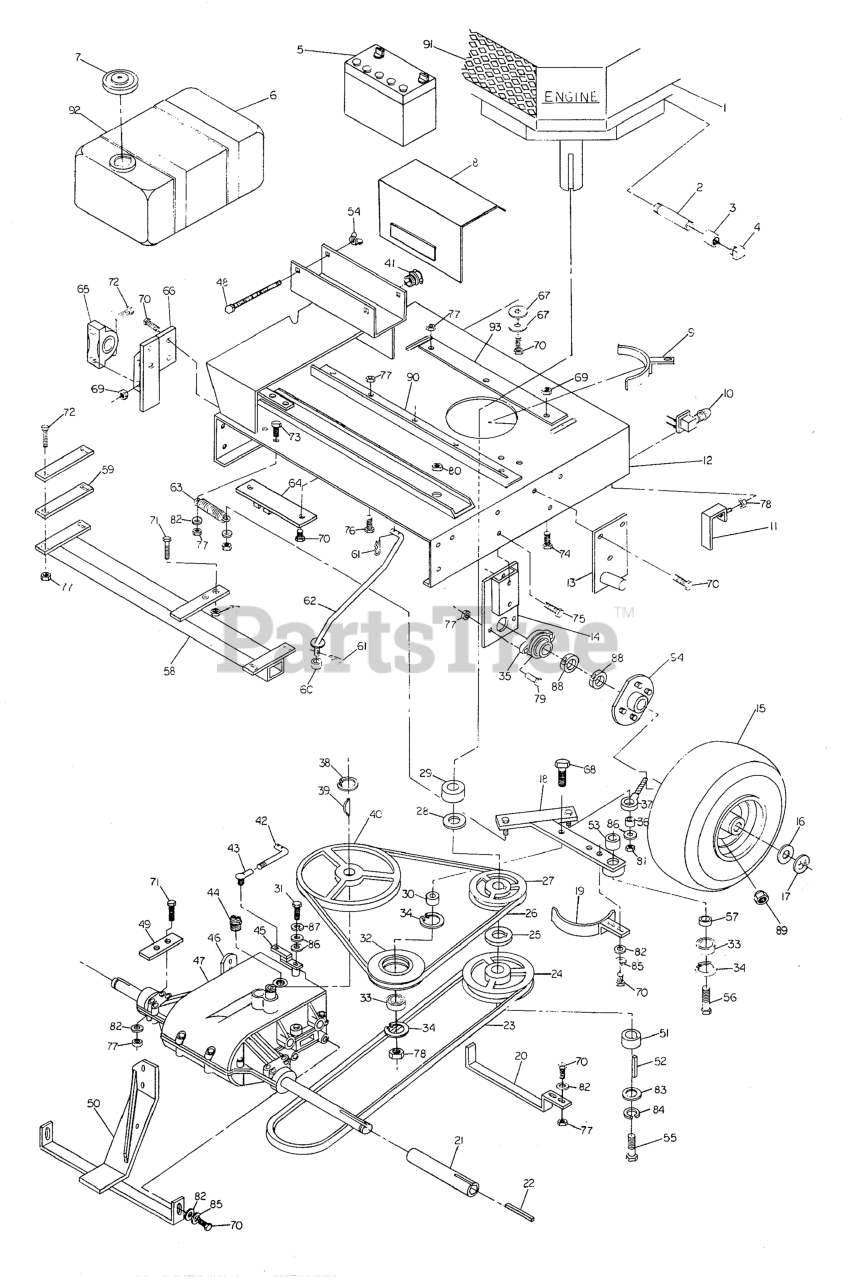

PCT 4818B - Ferris ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0212 & Above) Engine & PTO Group (S/N: 363 & Up) Parts Diagram

ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

Engine & PTO Group (S/N: 363 & Up) Parts Diagram

  • Title

1

ENGINE, 18HP Kohler (Model MV185)

$

$

Not available

1

ENGINE, 18HP Briggs & Stratton

$

$

Not available

2

Ferris 5020925

Oil Drain Extension Kohler 5"

$

$

Currently unavailable

2

Ferris 5020879

Oil Drain Extension

Note: (Briggs & Stratton)

$

$

Currently unavailable

3

Ferris 20862

Coupler

$

$

Currently unavailable

4

Ferris 25059

Pipe Plug

$

$

Currently unavailable

5

BATTERY, 11U1L, 350 CCA

$

$

Not available

6

Ferris 5020796

Fuel Tank, 4 Gallon

$

$

Currently unavailable

7

Ferris 5020797

Gas Cap
(Superseded to 5020797FS)

$60.99

$

In Stock, only 1 left!

0

8

Ferris 5041773

Battery Cover

$55.99

$

Usually ships in 2-12 days

0

9

Ferris 5041577B

ENGINE BELT GUIDE

$

$

Currently unavailable

10

Ferris 5020833

Safety Switch
(Superseded to 5020833FS)

$67.99

$

Usually ships in 2-12 days

0

11

Ferris 5041834

Engine Deck Belt Keep Weldment

$

$

Currently unavailable

12

Ferris 30295

Engine Deck Weldment

$

$

Currently unavailable

13

Ferris 5041580

Pivot Bracket - LH
(Superseded to 5045570B)

$47.99

$

Usually ships in 2-12 days

0

13

Ferris 5041582B

Pivot Bracket - RH
(Superseded to 5045571B)

Note: (Not Shown)

$51.99

$

Usually ships in 2-12 days

0

14

Ferris 5041842

Long Axle Bearing Mount Weldment

$

$

Currently unavailable

15

Ferris 20789

Drive Tire Assembly (Tire & Rim)

$

$

Currently unavailable

15

Ferris 5020790

Tire Only

$

$

Currently unavailable

15

Ferris 5020791

Rim Only

$

$

Currently unavailable

15

Ferris 5020792

DRIVE HUB
(Superseded to 5048417)

$146.99

$

Usually ships in 2-12 days

0

16

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5041585B

Idler Arm Weldment

$

$

Currently unavailable

19

Ferris 5041588

Idler Pulley Belt Guide

$

$

Currently unavailable

20

Ferris 5041593B

Belt Guide

$

$

Currently unavailable

21

Ferris 5041839

Long Axle Support

$30.99

$

Usually ships in 2-12 days

0

22

Ferris 5048409

KEY, 3/16" SQ. X 2-1/2
(Superseded to 5048409SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5020871

BELT, B Section

Note: (61" Deck)

$85.99

$

Usually ships in 2-12 days

0

23

Ferris 5020872

BELT, B Section

Note: (48" deck)

$

$

Currently unavailable

24

Ferris 5020817

ENGINE PULLEY

$80.99

$

Usually ships in 2-12 days

0

25

Ferris 5020916

1/8" Spacer

$

$

Currently unavailable

26

Ferris 5020800

Belt A Section

$25.99

$

Usually ships in 2-12 days

0

27

Ferris 5020818

ENGINE PULLEY

$

$

Currently unavailable

28

Ferris 5020929

SHIM, 1.0 X 1.5 X 0.125
(Superseded to 84005968)

Note: (Kohler Only)

$2.99

$

In Stock, Qty 10

0

29

Ferris 41761

Engine Spacer
(Superseded to 7059115YP)

$156.99

$

Usually ships in 2-12 days

0

30

Ferris 5020923

SPACER, Shoulder
(Superseded to 5020923YP)

$5.99

$

In Stock, only 1 left!

0

31

1/4-28 x 5/8 Bolt

Note: (Obtain Locally)

$

$

Not available

32

Ferris 5041474

Idler Pulley Clutch

$

$

Currently unavailable

33

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

34

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

35

Ferris 5020938

Bearing

$

$

Not available

36

Ferris 5041483

Cable Spacer
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

37

Ferris 5020813

Clutch Cable

$154.99

$

Usually ships in 2-12 days

0

38

Ferris 5020107

RING, External, Snap

$2.99

$

Usually ships in 2-12 days

0

39

Ferris 5020133

Hy Pro Key

$4.99

$

Usually ships in 2-12 days

0

40

Ferris 5020845

Transaxle Pulley

$

$

Currently unavailable

41

Ferris 20896

Connector

$

$

Currently unavailable

42

Ferris 5041602

Shifting Linkage

$

$

Currently unavailable

43

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

44

Ferris 5020832

Neutral Safety Switch

$

$

Currently unavailable

45

Ferris 5041749

Shifting Lever

$

$

Currently unavailable

46

Ferris 5020794X56

Brake Lever

$21.99

$

Usually ships in 2-12 days

0

47

Ferris 5020794

Transaxle

$

$

Currently unavailable

48

5/16-18 x 6 Carriage Bolt

Note: (Obtain Locally)

$

$

Not available

49

Ferris 5041694B

Transaxle Support Spacer

$

$

Currently unavailable

50

Ferris 5041695

Transaxle Support Weldment

$

$

Currently unavailable

51

Ferris 5041739

SPACER, .63 x 1.00 x .63

$

$

Currently unavailable

52

Ferris 5050407X2

KEY, 1/4 SQ. X 3
(Superseded to 5050407X24YP)

$6.49

$

Usually ships in 2-12 days

0

53

Ferris 5041754

SPACER, .50 x 1.00 X .69

$

$

Not available

54

5/16-18 Wing Nut

Note: (Obtain Locally)

$

$

Not available

55

7/16-20 x 1-1/2 Grade 5

Note: (Obtain Locally)

$

$

Not available

56

1/2-20 2-1/4 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

57

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

58

Ferris 41603

Transaxle Support Weldment

$

$

Currently unavailable

59

Ferris 5041604

Transaxle Support Spacer

$

$

Currently unavailable

60

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

61

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

62

Ferris 5041727

Linkage Arm Weldment

$

$

Currently unavailable

63

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

64

Ferris 5041763

Brake Cable Mount Weldment

$

$

Currently unavailable

65

Ferris 5020945

Pillow Block Bearing

$42.99

$

Usually ships in 2-12 days

0

66

Ferris 5041846

Short Axle Support Weldment

$

$

Currently unavailable

67

5/16 Fender Washer

Note: (Obtain Locally)

$

$

Not available

68

3/8-16 x 1-3/4 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

69

5/16-18 Nylon Lock Nut

Note: (Obtain Locally)

$

$

Not available

70

5/16-18 X 1 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

71

5/8-18 x 2-3/4 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

72

5/16-18 x 1-1/2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

73

5/16-18 X 1-3/4 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

74

5/16-18 X 1-3/4 Carriage Bolt

Note: (Obtain Locally)

$

$

Not available

75

3/8-16 x 2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

76

5/16-18 x 2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

77

5/16-18 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

78

3/8-16 Nylon Nut

Note: (Obtain Locally)

$

$

Not available

79

5/16-18 x 1-1/4 Gd 5 Bolt

Note: (Obtain Locally)

$

$

Not available

80

1/2-20 Nylon Lock Nut

Note: (Obtain Locally)

$

$

Not available

81

1/4-20 Nylon Lock Nut

Note: (Obtain Locally)

$

$

Not available

82

5/16 Flat Washer

Note: (Obtain Locally)

$

$

Not available

83

7/16 Flat Washer

Note: (Obtain Locally)

$

$

Not available

84

7/16 Lock Washer

Note: (Obtain Locally)

$

$

Not available

85

5/16 Lock Washer

Note: (Obtain Locally)

$

$

Not available

86

1/4 Flat Washer

Note: (Obtain Locally)

$

$

Not available

87

1/4 Lock Washer

Note: (Obtain Locally)

$

$

Not available

88

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

89

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

90

Ferris 41746

Front Engine Deck Support

$

$

Currently unavailable

91

Ferris 41607

Muffler Guard

Note: (Briggs Only)

$

$

Currently unavailable

92

Ferris 5041606B

Gas Tank Strap

$19.99

$

Usually ships in 2-12 days

0

93

Ferris 5041823

Kohler Engine Deck Support Rear

$

$

Currently unavailable

93

Ferris 41745

Rear Engine Deck Support B & S
(Superseded to 7044679YP)

$740.99

$

Usually ships in 2-12 days

0

94

Ferris 5020792

DRIVE HUB
(Superseded to 5048417)

$146.99

$

Usually ships in 2-12 days

0
